Hi

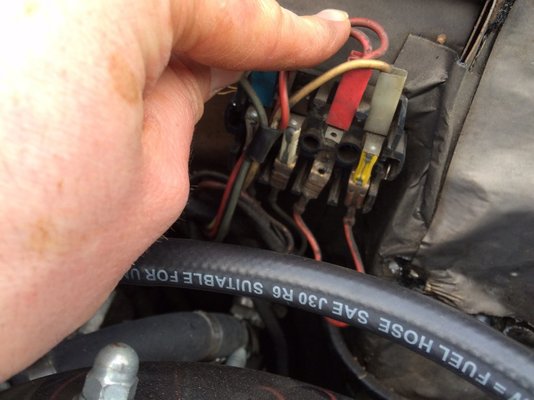

Hi does anyone know what the middle fuse is for (the one that's missing),and why it would keep blowing ?????,arghhhhh I hate electrics
Thanks MarkMark



[Foofighters 27]

Hi I've just replaced my speedo , now my fuel gauge and battery gauge not working ,arghhhhhh



[mojobaby]

Haven't had a chance to go out and check-it's freezing, but I seem to remember that it's the windscreen wipers



[malcolm]

Do you have a Haynes manual or similar? That will say what the fuse is for.

Tracing the reason for fuses blowing can be a bit slow. The wiring diagram will show what is connected to the fuse. Check for a short to earth. Then unplugging bits one by one until the short disappears should tell you which circuit is the trouble.



[Tomcat]

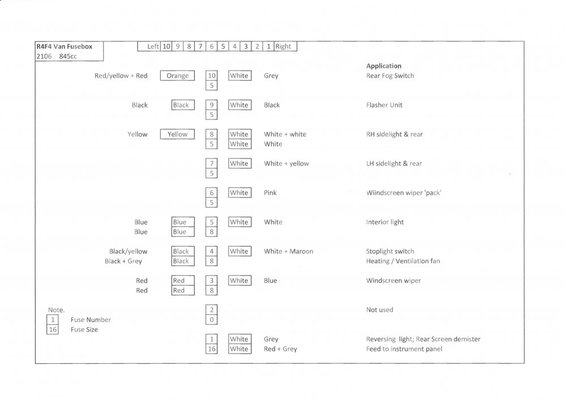

May be of assistance?



[Azazello]

May be of assistance?View attachment 13524

It seems to refer to the newer dashboard r4s...



[Tomcat]

It seems to refer to the newer dashboard r4s...

Yes, correct. Off my F4van 1984 vintage.
My inexperience with R4 range meant I thought maybe relocated, or even extended, but of similar layout.
Hence the word "maybe"



[Azazello]

With the ancient dashboard you have 4 fuses under the dashboard for lights and other 4 in the bonnet but I do not remember for what...
