Fuses 89 r4

Richnd1974

Enthusiast
Messages
554
Location
Bournemouth

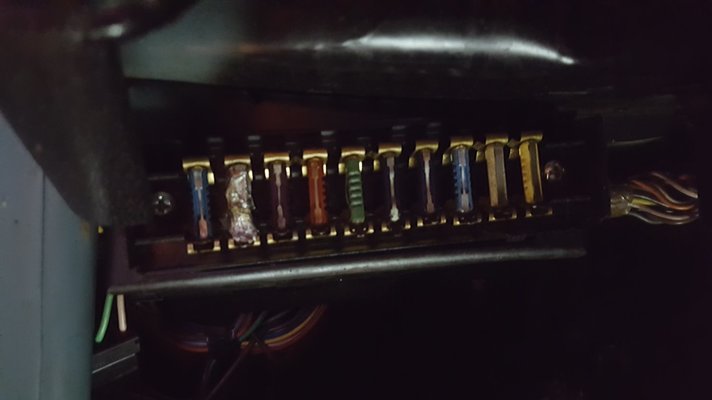

Worrying that someone had bridged one of my fuses in the past anyone have a list of what they are for so I can rectify the fault

  • 20170421_195011.jpg
    83.2 KB · Views: 4
I got this list somewhere on this forum

1 16 amp Reversing light, rear screen demist, instrument panel
2 ‐ Not used
3 8 amp Windscreen wiper
4 8 amp Stoplights switch, heating ventelation fan
5 8 amp Interior lamp
6 5 amp Windscreen wiper park
7 5 amp LH front sidelight and rear light
8 5 amp RH front sidelight and rear light
9 5 amp Indicators and flasher unit
10 5 amp Foglamp

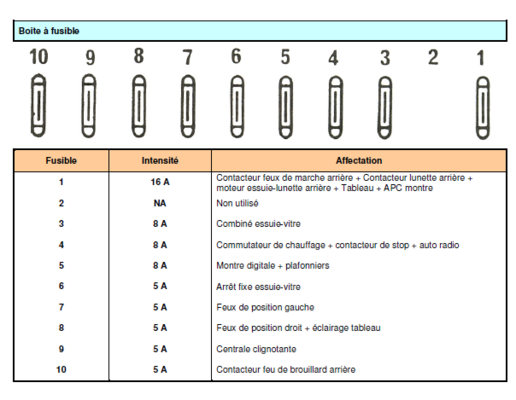

And here is description in French from some french manual (something like haynes)

Thank you, I will need to investigate the flasher circuit I think and remove the tin foil

Richard, You may have difficulties finding these fuses as they have been superseded by other types i.e. Glass, spade, etc. Go to eBay and search for 'European fuses'.

Hi, i saw this fuses other day in "Roady" it´s a store that belongs to Intermarché, i don´t know if exists in England...

Hi, i saw this fuses other day in "Roady" it´s a store that belongs to Intermarché, i don´t know if exists in England...

Torpedo fuses (the ceramic ones!) are stil widely available.

Torpedo fuses (the ceramic ones!) are stil widely available.
Not here in the U.K. There are so many modern and improved fuse types out there the old 'European' ones are scarce but not impossible to find.
