Air cleaner pre-heating hose?

Sepharad

Enthusiast
Messages
27
Location
Portugal
#1
I have a photo of a quatrelle engine, and there is a silver, corrugated hose, running from the air filter housing outlet, downward to I don't know where.

In the Franzose catalogue, they list: "Preheating hose for the air filter. Suitable for Renault R4, R5, R6, R16."

Is this a typical add-on, or standard equipment?
Obviously it attaches to the filter housing and then goes....where? Just hangs loose in the compartment?
Does it actually DO anything?

Messages
277
#2
The corrugated hose delivers pre-warmed air from the top of the exhaust manifold to the air intake, thus allowing better vaporisation of the petrol during cold weather. There's a switch on the air filter housing which alters the intake, depending on the temperature of the ambient air.


Sepharad

Enthusiast
Messages
27
Location
Portugal
#3
Andrew, So do I just lay the open end of the hose against the manifold, or does it attach somewhere? Should I do this in Portugal or does ambient air temperature make no difference?


jjad

Enthusiast
Messages
1,194
Location
Herefordshire
#4

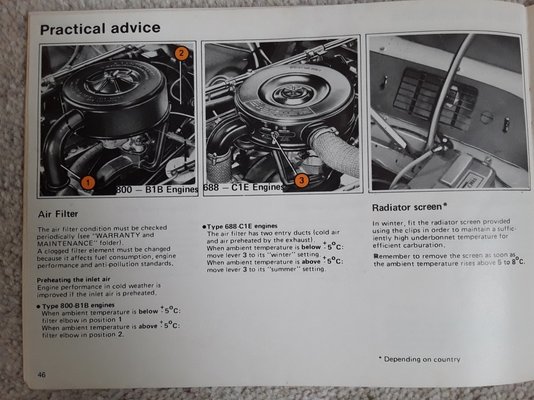

It attaches to a tube that is sort of wrapped around the exhaust pipe in order to draw warmer air into the engine. Another type of air filter box has a fixed pipe and it looks like you rotate the whole air filter box lid from above the exhaust pipe to further back, while another type has two flexible pipes and a switch. One of my handbooks recommends switching settings when the ambient temperature is 5 degrees Celsius. 15499825944033460478583330046021.jpg


jjad

Enthusiast
Messages
1,194
Location
Herefordshire
#5
On our Slovenian-built GTL, there is a hose clip on the inner wing. This is for clipping the flexible pipe up and away from the exhaust pipe in warmer weather.


Sepharad

Enthusiast
Messages
27
Location
Portugal
#6
So my Filter box looks like #1. One outlet, no hose. It never goes (once in recorded history) below 5, here so it should be turned to position #2, back toward the firewall. With NO hose?
