R4TL fuses

Messages
321
#1
I have just bought a 78 4TL but no handbook for it yet, which fuse does what and what rating are they, if anyone has a handbook to spare I would be grateful
thanks
Allan


jjad

Enthusiast
Messages
1,215
Location
Herefordshire
#2
Hi Allan,

I may have a TL handbook somewhere; if so I will find you the details.

The fuses may be similar to the later GTL fuses


Pavel

Enthusiast
Messages
191
#3
There is no relevant notice about the fuse box in the Haynes Owners Manual 1961-79. The German literature mentions the latest fuse box type under dashboard only. If you have the four fuses box beside the voltage regulator, so I can trace up from the electrical scheme:
1. flasher unit
2. stop lights
3. wiper switch
4. front and rear harness junction block (lights and rear screen)
There is no notice about the fuses value.

Regards Pavel :)

Messages
321
#4
Thanks for the replies I have 5 fuses in the box my GTL has 8 so can not compare directly. I know no 4 is indicators and something else and 5 is LH side lights any help welcome
thanks
Allan


jjad

Enthusiast
Messages
1,215
Location
Herefordshire
#5
Hi again, I can't find my old manual (early 1970s), must have misplaced it when moving house. Hopefully someone else will be able to help. I'll keep looking though!

Messages
691
Location
Cheltenham
#6
Hi Allan
The fusebox in the 78 handbook I have has 4 fuses. When viewed from the front of the car, they are (from left to right):

1. 8A Interior light
2. 8A Instruments and stoplights
3. 8A Wipers
4. 5A Flasher unit

Hope this helps!

Messages
7
Location
Montenegro
#7
Please can you help me I have renault 4 tl special I have to replace fuses do you have an diagram of them it has 6 fuses


angel

Enthusiast
Messages
1,861
Location
Athens, Greece
#13

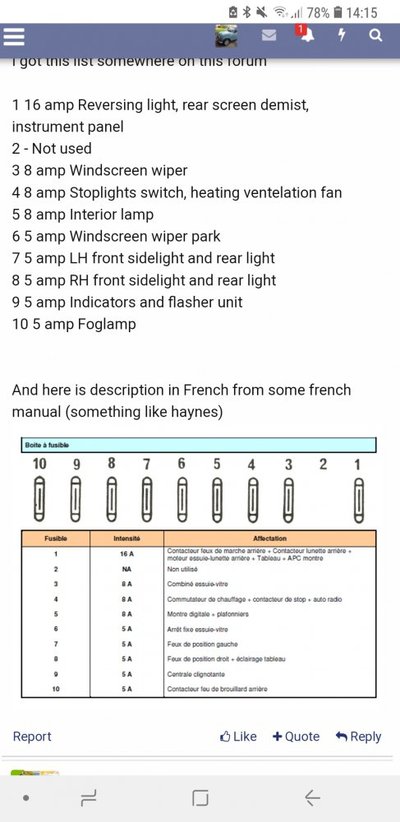

Counting from the left, when viewing the fusebox from the front of the car:

1: Left side side lights - 5A
2: Right side side lights, instrument panel lighting - 5A
3: Wipers - 8A
4: Interior lamp - 8A
5: Brake lights, instruments, heater - 16A
6: Indicators - 5A

It's not unusual to find small differences in the circuits protected, especially if the car has been tinkered over the years.
