Wiring ignition switch

[LexG]

Hi everyone,

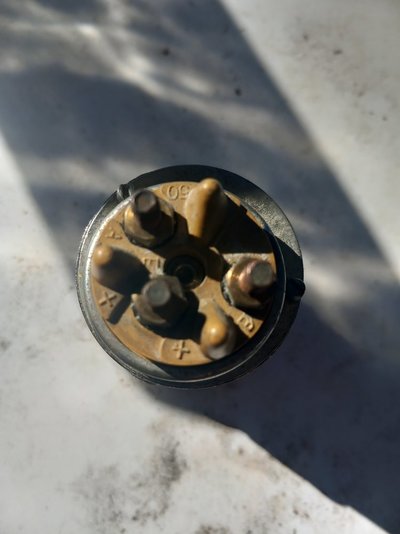

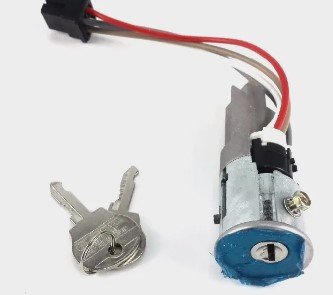

I have to replace the old ignition switch (renault 4) for a new one (key broke and stucked in the old one). The old one has 3 wires, the +, the A and the B. The new one comes with a push on connecter with 4 wires, red, white, browne and grey. Can anyone tell me how to connect the +, A and B with the new push on connecter? Thanks in advance!



[jcarruthers2]

Hi

Your existing switch looks to be from an earlier model than the replacement switch you bought.

Best Wishes



[LexG]

I know, it´s a rebuild and it should fit. Can´t find anyway one that looks like the one I knocked out. But thanks for your reply.



[André4Renaults]

It's possible that the new ignition switch has an "accessory" option, so that a radio, for example, can be used without the ignition being on, but will be switched off when the key is removed. Could be better than your old one anyway!



[LexG]

Might be but now the question is how to connect properly. The old wires are all black and don´t want to damage anything by connecting wrong.
