Wiring diagramings

[Eoynteenie]

Have we got a source to a good wiring diagram, namely for a 1985 R4 GTL

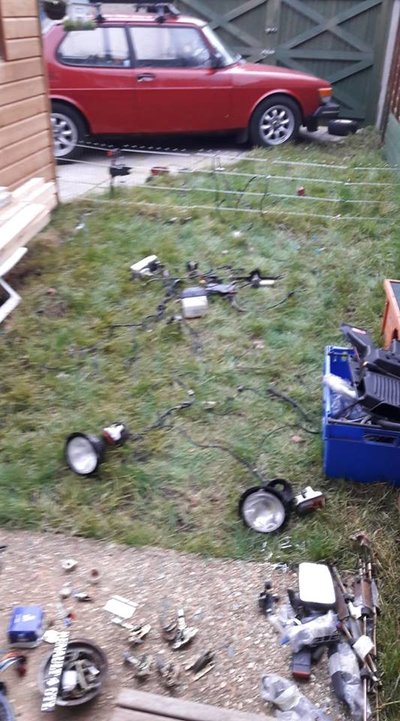

Trying to work my way though this mess


got a haynes book of lies but its not the greatest thing in the world to work with



[Tomcat]

Hi there
I must say I found the Haynes manual wiring diagrams OK when doing all my wiring on both F4's.
I have the 1961 to 1986 version latest I believe with the supplements.
Happy to scan the pages I used from that and send to an email address.
PM me.



[Eoynteenie]

Thanks Tom but i am using the haynes already, just wondered if someone knew of better



[Jurjenz]

Don't know any better, but this is a good source:
https://www.la4ldesylvie.fr/index.p...des-renault-4&catid=25:electricite&Itemid=242



[Tomcat]

Don't know any better, but this is a good source:
https://www.la4ldesylvie.fr/index.p...des-renault-4&catid=25:electricite&Itemid=242

Yes covers everything. For '83-'86 period the last Haynes manual uses same diagrams.
But does not necessarily show all tracer colours. One has to be a detective!!
