I wish Nick well in his journey through the brake shoes. having recently changed those on the front I have 'fond' memories of shoe retaining springs!
A question I have pondered on when setting up after replacement 'where does the auto adjusting lever go' - away from the axle or towards it.
A plea to those who know.
Thanks

Hi Rob

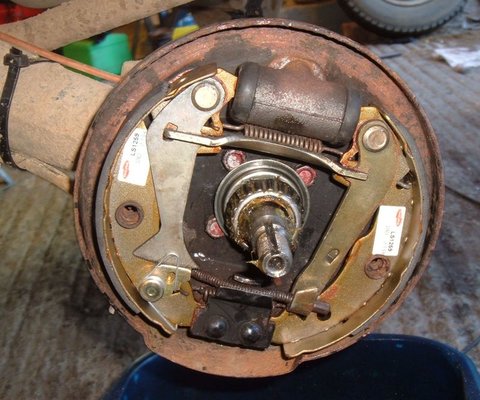

I cannot find an image anywhere of the self-adjusting brake mechanism for the front brakes. However, you can view the rear Bendix brakes set up on this website and home in on the mechanism as it is similar.

  • bendix-brakes.jpg
    105.1 KB · Views: 3
Auto adjuster lever going towards the axle -> shoes set closer to the drum.
