Hi all, i`m busting my head over these console connectors. Some of them broke, probably because of age.
Now i`m having a hard time trying to find those connectors. I`ve been searching all around the internet but haven`t found them.

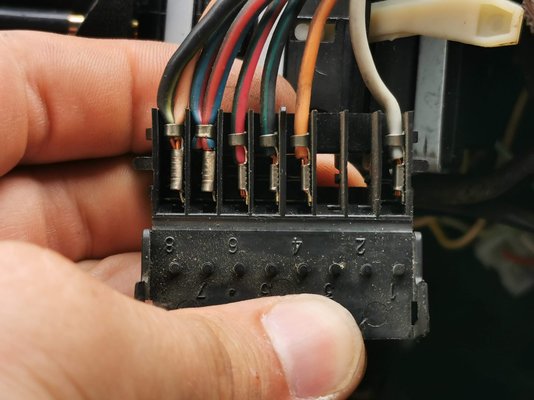

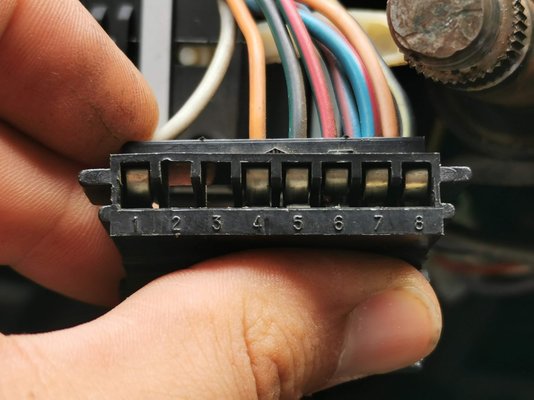

Now i`m hoping someone on this forum knows what these connectors or terminals are called and how I could get a hold of them. I will attach some pictures.

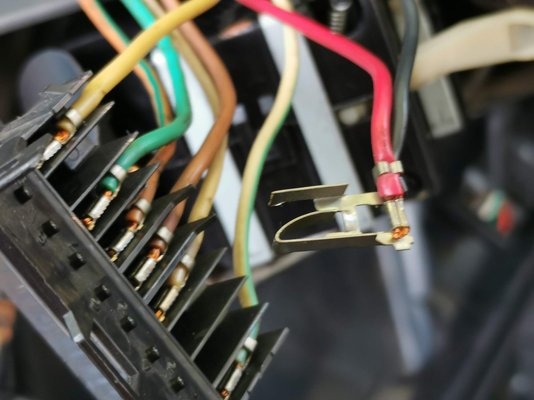

Note that on one picture i have a broken terminal. There should be 2 of those rounded bits.




Messages
1,481
#2
Hi Bjorn-
have a look at the wiring diagram where you'll find refs to the numbers And the colors of the wires.If you can't finde these connectors
just go for any other type.After all they are hidden under dash right? -R.


BjornT

New Member
Messages
4
Location
Hilversum, Netherlands
#3
Thanks for your reply.
I had some luck today with a local Peugeot garage, he had some old stock. Very happy with that find.

I have been thinking about alternatives, but because the connection with the old Style pcb is so specific, I couldn't think of an solution without having to modify it too much..


JdeW

Enthusiast
Messages
643
Location
Laarbeek The Netherlands
#4
Depending on year of production either Veglia or Jaeger connectors.
Maybe available at "clubmagazijn R4 Club Nederland".
Just Phone or email magazijn@r4club.nl
Circuitboard also still widely available.
Succes
