R4 F4 Front member

[The_Blacksmith]

Can anyone draw me a cross section view of the left or right front member? I have a little rust giving me a lot of grief and I'd like to get a good look at things so I know what to repair. Normally Renault would replace the whole thing but for me that's not an option as I don't have a new member on stock in my spares department.



[Pavel]

Do you mean the front frame cross member? I have a new one in my garage, so I can take the measurements and draw it for you. Where should I make the cross section?



[The_Blacksmith]

I suppose the left box section would be a better description for it. I have a case of rust near the left engine mount approximately where the brake lines pass through the inner wing. I'd like to know what kind of re-enforcements are put into the thing. Oh, it's a lefthand drive car in case you're wondering.



[Pavel]

I have a left hand drive car too. The cross view should be through the inner wing near to the engine mount, or through the chassis near to the engine mount?



[Pavel]

Hi, there is no reinforcement in the place, as you describe.



[malcolm]

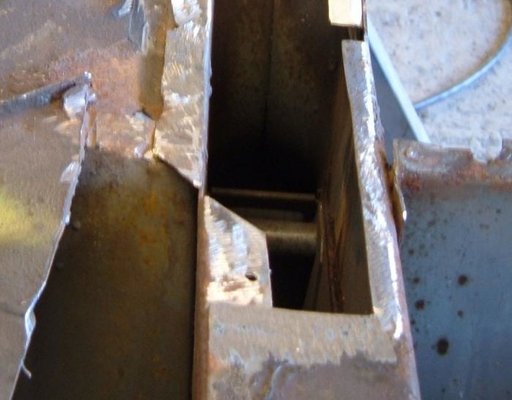

For the engine mount rust there is a double skin on the outside face and U shaped brackets holding crush tubes for the bolts. The attached photo is the best I have.

If it's just the outer face that is rusty (normal) then you can cut the outer face away, clean out the rust on the reinforcement, then weld a new section on the outer face. See http://www.renault4.co.uk/forum/album.php?albumid=6



[The_Blacksmith]

I see I can get away with a thorough clean and welding in a new panel. That makes me a happy man.
