Renault 4 1972 brake hydraulic system- pipes from rear to master front to master

[Briangrech]

Hi any photos of the complete brake system on a 72 model? Would appreciate pics of the whole system.Thanks



[Andy McGhee]

Hi any photos of the complete brake system on a 72 model? Would appreciate pics of the whole system.Thanks

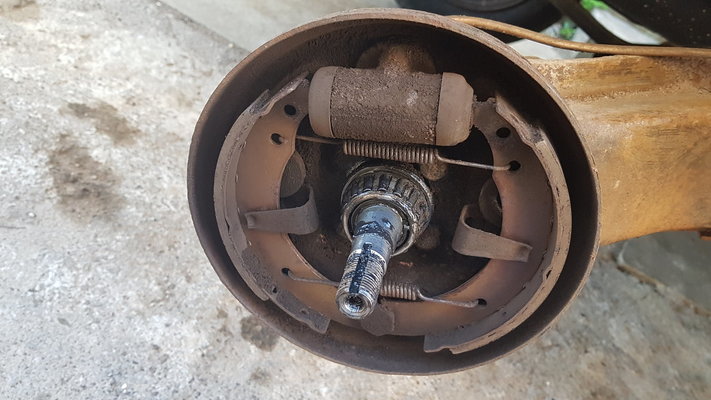

I don't know if this helps, but this is the rear brake set-up on my 72TL



[malcolm]

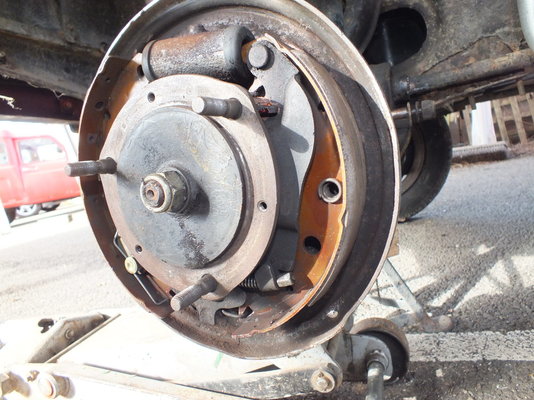

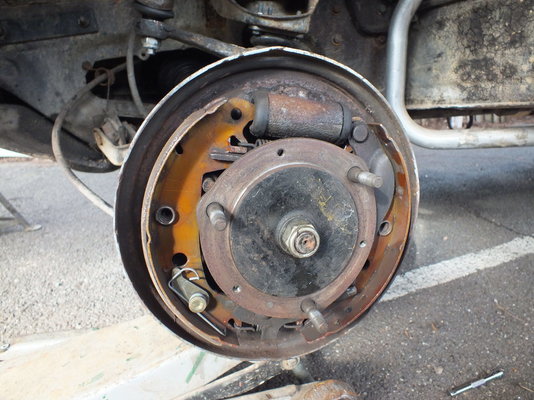

Couple from the front too. This one is a '71 or '72 Rodeo based on the F4 van chassis.



[Briangrech]

I don't know if this helps, but this is the rear brake set-up on my 72TL

View attachment 30984

Thanks however i want the hydraulic pipe system, my wording wasn't right. thanks again
