Water pipes Henessy go faster kit

[ggcton]

I now have a veriety of pipes that should enable me to fit the R5 water pump to go with the R5 manfold and carb on my 4GTL.
Can anyone post me a picture of how the pipes run and if there is a bleed valve in the joins.
Thanks Gary



[malcolm]

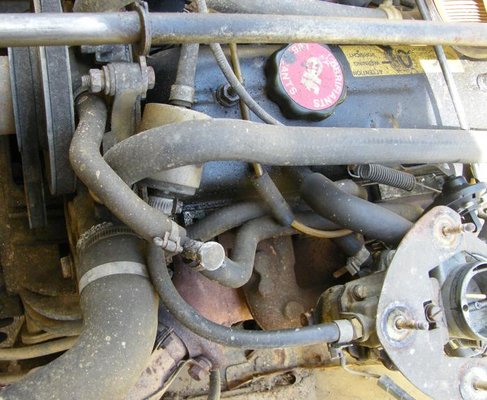

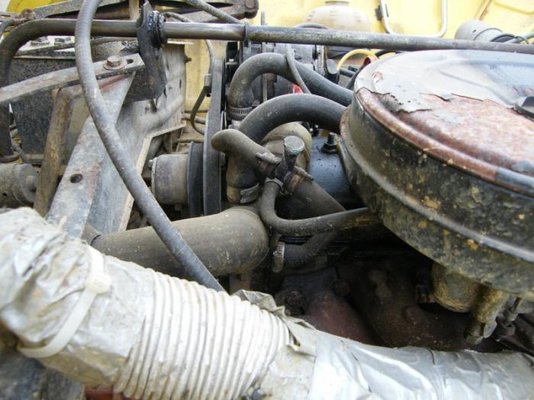

Not a very good photo - could remove the air filter housing if you want a better shot. Hose from the top of the waterpump has a bleed and goes to the rear of the carb.



[ggcton]

Hi malcolm it would be good to have some more pictures at the carb end you could e mail if it is easier Thanks Gary



[malcolm]

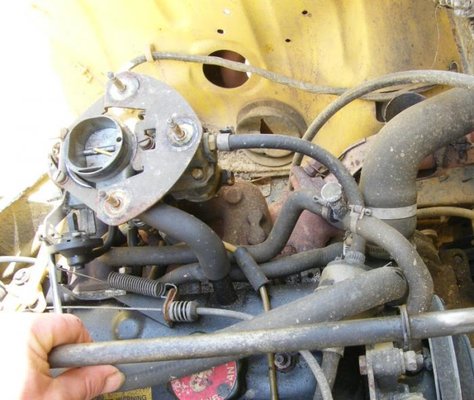

Can't see a lot more with the air filter removed - fiddly area down there.



[ggcton]

Thank you malcolm that is great.Gary
