Chassis small update :welder:

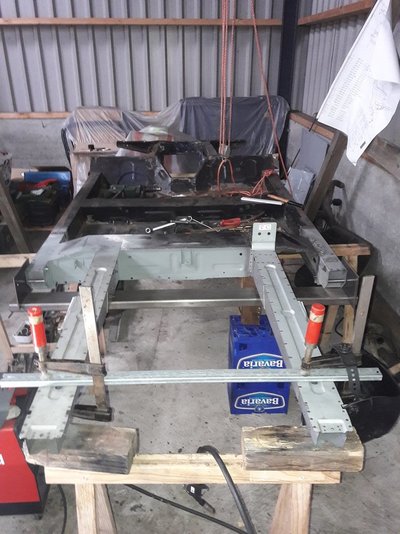

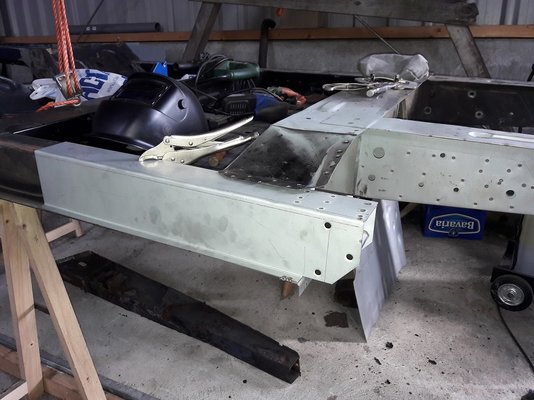

New heavy metal has arrived (and still I'm a big fan of the NWOBHM as well ;)) a repair piece of the left outer rear suspension mounting.
y4muphapvS8BqXPmQ2ywvG7w3UTGtaxIrlYfqHmP-z_A-cJgyNrYNRYX7rw_-j16GixHuVmZ5zh_zOzIaNVTM3TlZ1jqZJuefzLYFT6KDdvg0qVvY8vzCkPJHVOzAEeFIzgBIy2NbDens7DfncDhaIyYWCRrXmDUwIns4nye9mqgBUqteYjI4TaR2b7erueMiEMLBymOT31-44JWlsmGcxcRg

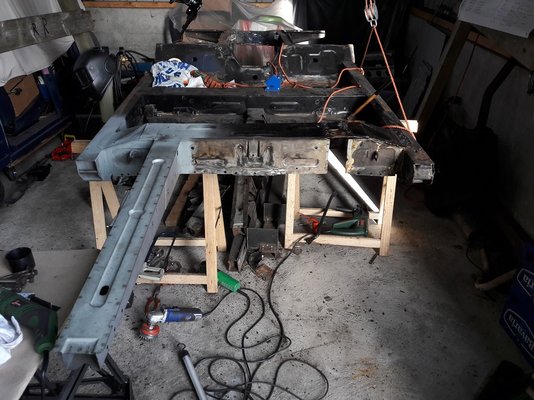

Just a fun crude fitting
y4meX9pGIVCBeFIuNTUwDWqOtxuwd8IMZQSBQuLKlgU8-kSPqngzHh68FKZzLs0ThWDMy5U-B339dBum5c-jWRyTbWKdg3a2MdueJSLrbtKYVJJMTm2jLEG4G0LrVAgytpMmfRbidTwI1fRldEqj5l4pjkWTW9Z38vfk06nCmdrwpzFcH5M_JHmjshmjIlzeWw15kEzE_xjIWUWOjDH0ZnXZA


Some old donor parts will be transplanted
y4mSrXhrTsQGL4OhROVqxtqei6ZC1eLFabma3Z03Wtmm_0L0rOUnBlmS3byRPRKMRJx8vFgYg1rP1zVp7MrNhzOuzlL4lMNVg6hUZO10ugiaSET4B6D0N2ZDFy8c-uuQ_2n6CamgmVqnphcaymY_0IoKXSVv953k-cO-WnCNrFTygdvI5gQw0jn0J8o8J15Hdho-CjiSI_RfLrmo3eFGfOzIA

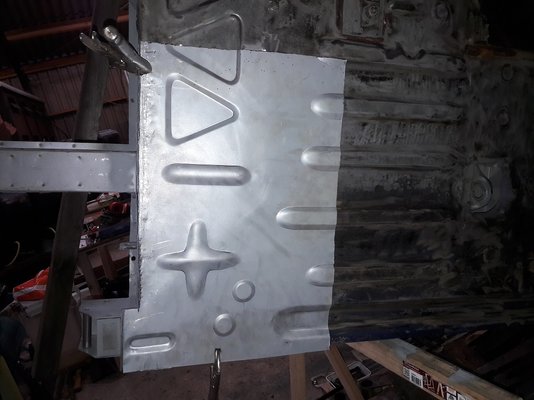

Meanwhile doing some small panel repairing...

Cutting away
y4mOaRNpiYx_WkrBqw-RtWqXRQcLfBN_92Y-wg78nq0mwQF6qd8aL-d31XcATyffSXiSFFNDhI_6u_3YC5n6XvD1ip0dZt4ir4gjlSWD5VP2kcI3znVgakMsR7REQLzBfNrdfFA5eLIVZJNKEAGBCPeGLTg60V6v7ocHk_LJNhiqBT3kOrjU61TsyyLeQUTbkuE09oBn2sXDR2O-mukX35tZg

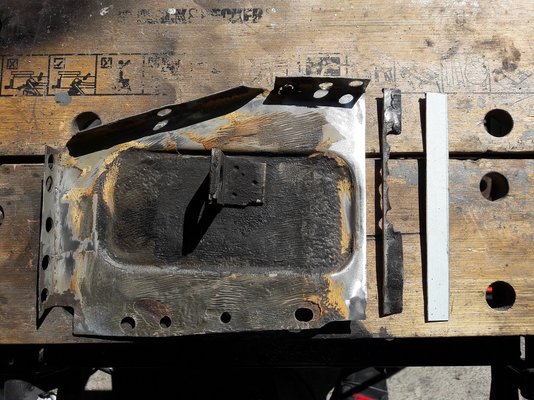

Preparing replacement steel
y4m54UDzFYz6qbDRAdhjZYheRSNXgJDw3vpWlku-ctgoDy0XowHOg-oN_kwS8-UDoDzylj6Z_8YB5UBq5-GMwkoV2uG3EF5rVbqESa_tmD85YazhASHG-21Cj7qUGOvJLPb3GmAgukeWIh-M-G3rT45PVb3ux410YXV2sXta0BBjH_Qvfy-YiLbRyV7GJ7_RJ4dZ32s2GFPCQksCiAilxJftA


Glueing the pieces with hot liquid metal aka MIG welding :welder:
y4md4-_D-CaiijzdkOTYwSAQ_XeU15MpnMfL-7IQPVgjJ5oS3wiwvRK21e58TRpHg4qIrcf1D34WO2VhqlvIpKZZ52MMp_6tRwZIWZnZHduYkccreoVeNDLjHlUX0Sv_-lMB5n1dqx7zjZmPAuYOay0z3ujNgVTKl-c3rENpoHS9wM4ybpLZVWy1i0sfOTDrEWq3u3_ami7UJpaDXvgAPC9PQ


Sanding the outside
y4m1MbBLLYKXMIdTe4wgpP5R0RojghZMlJyPHo-8sFOibkHPDqVrADENoO_7HIocOnx3CoKTK06s8ypo2r-ouZSTGSLh2QR7YqaJYL4iqes9wEerUPZWC4nJvwq52Nl8Y8SHluDfmuOo12Lik2Q4wSu-IaCsEuc5vBiXuxT59rp1qh1DOw7ijgL6YVpmk7Ii5H3T9CGokBEgPXQ7IvP7c-DSQ


Sanding the inside
y4mOYFU3z1jIr-flpJkVi_e2s-het4PoGVkGtzhjF5j8I4nlenoAG5l_J90CSqPDlaK4JahPPBpQngsUEXTYEKBuh9c2jzgEq-18Ytm_3Kf0tgG15VpN3sVzgE-InElFF7Gz5LFLGSLsWb3eSSEn3wSMkbj4Wh8zQe-rOOL1nNC-hxEHk34-WvnChRbIEXHzEq2lfyUwU3L1AruswQ4rzCaqw

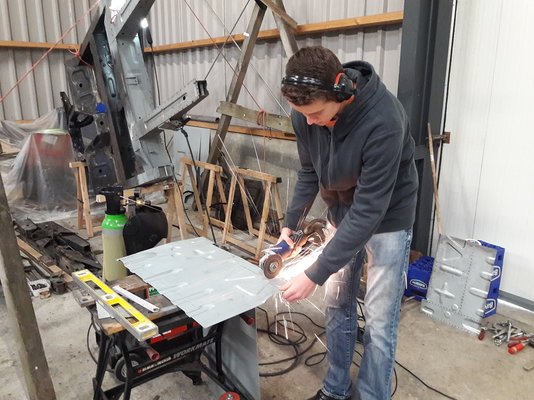

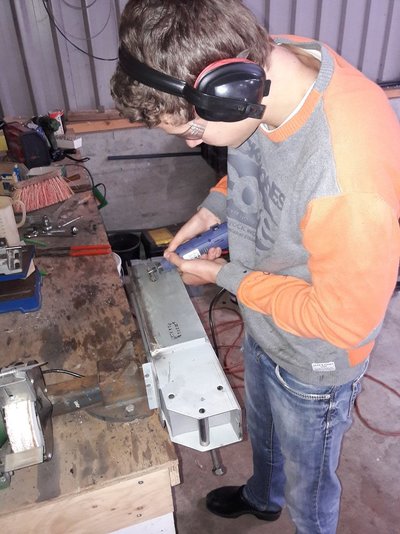

While I was doing all those things above I put my youngest son to work on dismantling and rough cleaning the replacement rear axle
y4mJXnrgE0WTpGjPLZRVklzi7igKzE1nIAaUbZUmZej1Y4wGNYv9_Q4UmhIf-a8aXvvpzDaY5i8hiiFZhpfJMxOnUO8Q6U_8N95PZxKI2393NGgBqEtoP2ZbF66PFQIafv-_N7q96TsPp1XsSsKywpc2pE_oDuVvEtvcrn-RJ2Ym-tiPZfpqvoWRK4d9NX0oToHhTw2J7R4_WZ3ELYW92PDtg


y4mWJPH-wJuK8ZAGVZgaTlfMWWf4zGiMGq8IujdSz24lM7ABJuoJVQuVB4V4sAV1wssmbcCEyYHYp9OxsRAthrsAS3Gt-LF3jurb8oZTp4p1RZpIVJKLcLZdGDe9YGUymjJPONJdZpEw4fhxfAQmtBevxYhf__Tez_iQT1SDud2xo0-sswwirxdtFOyNoBLRO_VsfQ_bzVMI0Red149pf6HnQ


y4mzT_GsJfxzE8eJgiWJmRTzobDI-d2exCBAMzQN7Nliqnaa20BvZeqfysbQvTn1XCdTdrD0C_vLNZjSRcFhKmID7288ope6bitmU4XeCkHiOe1PYXcAwdohiTEopswcdnSgWMIIAYNHMFJSMiM1Il41Zedm-15W7ZVHX6vjZlUgcR6S4sixKmydFQgHSB14zSERB6YkAEk5Q_USGURyQb0KQ


y4mQqNvjH1yNv-UbuRvsi-kMzkUQVpyvneOqM7F38-MQ7zWlijWEZkoCsEpPk7lkQp1_FwpDrAiqxnQ_zZyW3YCaNod2FbK9UVAzAQD5EROj8gaLTyv2gKvxm03RrjYY_5721h10OMxYPSQQou0TItHM2KAgDb4T_fVOfvOhKAzooSpr6XWj_vVOQJHBiS0k3b45SrWdpTbFz0-jYu0WQQFAg


But just dismantling and cleaning is a lousy job (but somebody has got to do it :D) so I gave him a new challenge... (he's eager on learning new crafts and knowledge as long as it's technical)

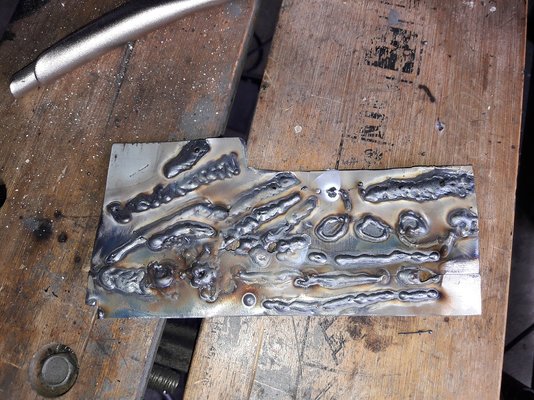

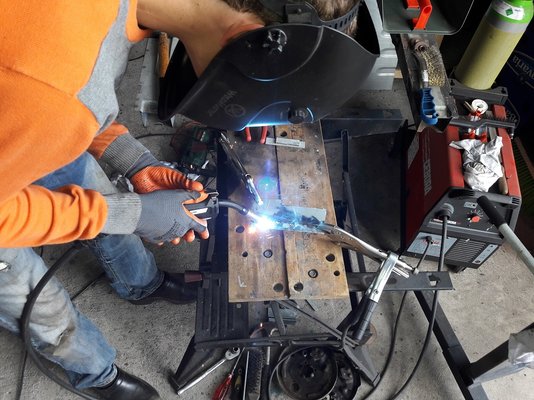

Learning how to MIG weld by himself..... (I think he peeked on his fathers Cebora welder setting's and welding art :dontknow:)
y4mH8IEfh8Dt4kUOYzVdLFF-n8g1xHgpwMCDcD6ZWLIMlXfg2rYOBiRe-Sl4dTtx62oNHofv93-A0j3rKr8EPmlXCLbFjVt41hCR83tLM1fJPhWRz-aIbkDr4wrZPblRueCa6Z2dra9C7oXb9US8g-LjqNbkL07hzllJuPizqFtdcGlBxvinwlE8kFyKfJBiE9o4HTsHzEPlxsZTIECE9MO1A


Final first results...
y4mmoJ1hnMM1XnCbtL99wsG0ha2ePrDwgFpXCXbaT7YcJk6JFS4b13FaQc_WclOFqVZVqW6RdtjIGIYvkKpJBnmnTEXEh6sEysPk_RqKSrCJpVqgtho8qBvQ7KpvanZNmP6Mt7K67RVJuy07n22unQr0jGdb_-HyoKrxcbpevMnutqnIXtbRUn-gaxGuz-xtWavhEUgunytW5GYPdekglWwLw


But the challenge remains for his own future safety :o
y4m3pingzpgV-8Y1CFdGWM1-YVREwNYngouIUGWcdkVhuQb5Elu1i4d8AsTaT4NL_y8BOASwDWYK8vw6a8Ov63U0yTlnmgV4Gw79B2yeO8-9Ow6ANlC5VtnrYQVxHMdIPQcvp5wQZZbMtlq8agfSvHIBykfLut5lpmdpT1VN7Oo6oB5j17NVhgS04y8K7VuDOzjn_7cufebPXQJ1jsBXp2FRA


We'll keep you updated next time :waving:

Last edited:

Jurjenz

Enthusiast
Messages
447
Location
Groningen, Netherlands
I'm sure you had really pleasant days working in the sun like that! Are you going to replace the outer axle mounts?

And hey, did I spot a bavaria kratje? :drunk:

:waving:


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
Hi Jurjen, you've got a keen eye on spotting that Bavaria crate ;) I just use those crates as a stand, and the actual brewery is just 3 km away from my home :D
And yes the whole rear axle will be refurbished so the outer axle mounts (aka outer silent blocks) as well as the inner silent blocks will be replaced after the torsionbars are removed.
Though the inner bushing don't tend to be problematic, I noticed on the old original rear axle that the rubber on the inner bushing started to desintegrate.
That is to expect after more than 30 years of wear and tear...
This link is a nice tutorial and with the torsion bars removed it's much much more easier to remount the rear axle.


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
Again small update The Chassis :welder:

Some small panel & strip repair
y4mLUnRgGITKWVZ_dvJzz9I6Z6__53l0K-3630jfHMEfMXGrTzB-WLvhDumTzOtUi_W1u7s1TVLDUXMRcK8mdEta9q5wtTZI3e1nnYfErb0jwfgI-H2McEL7jkbPin-erjVLpUVagnjM4WCQfjUliw65tDHKL4bq62lEsXKrKBh-_CrARaNwB2h7Irj48LiYj4hLNWWsFbH3S5ZKaqkXJz-xQ

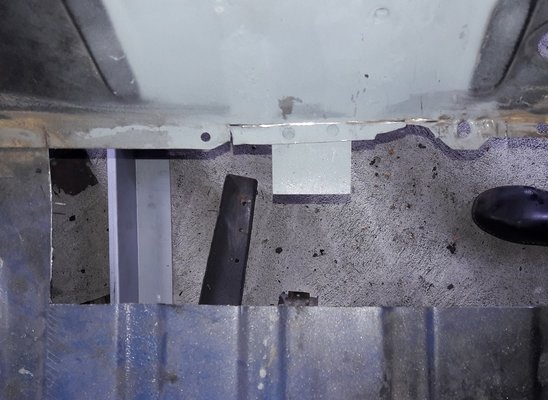

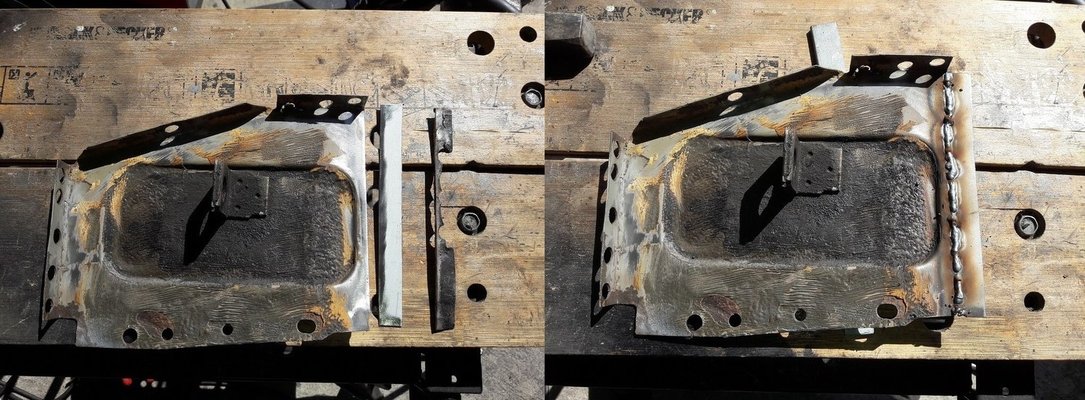

The bad piece is gone and I created a small template.
y4mmGj5iIFT4v6ITvxOkp674RiNHpAhYnBJlGYhQqrCYXMjUSukxIoX4ScE-FKpWrNrysRe47KqaYUeadMJcxHvT8cmhB2szYmWU6kyqhWUHx4Ezw_9A3pD391V6rxZoJDfiXimq9l_e9NWSP-JLE_KiJTV3WVaqY6wh-Vns_iz2fKJu1X3UyS06AeNiM0d8wPyt8-RLXiwUL3fqJCgEMSeWA

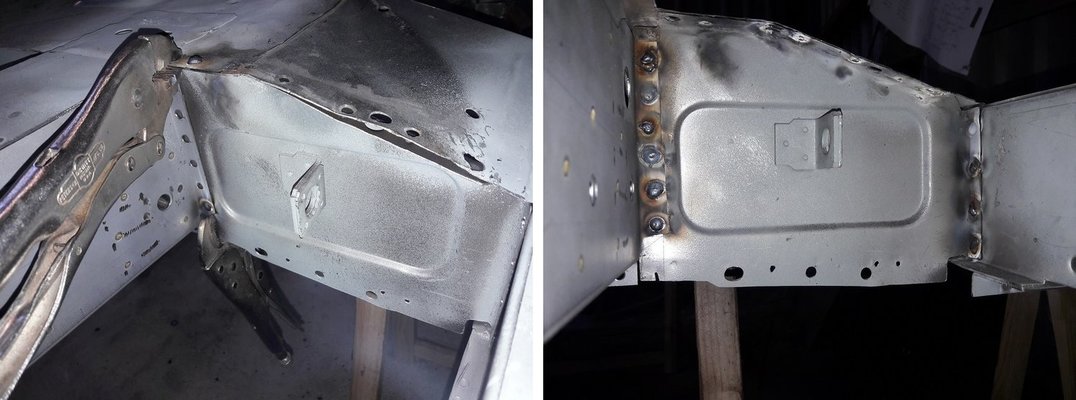

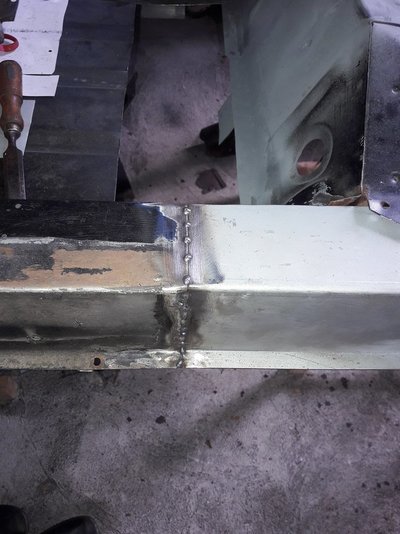

First stage welding.
y4m-ZOgjb2TSFz3OkunmbcO7kvZsYgAvyZh2QhAmhJcyRzNCr7jpbNEjKN2cphNUhmTDpZp0QxOf7itbvcgYMqbu9LEPPeza9ohSwy72JLakUwL7LqSRCam9gEo09i3kukOmPr7-tzdCFYsQxPOTG57cXtsjaqdxeWZtZGGQ4hMDiygst6EwIH31oG8GthmTvgQP_2zVyQpdpBbtwGUFRAVWg

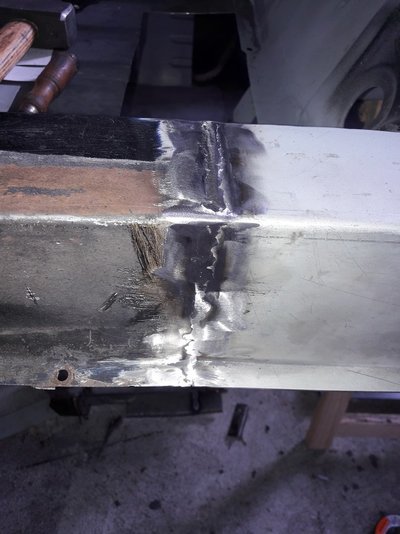

Sanded the weld.
y4mYhCz9H38SCqu1yV7QKXaPt8i2habb_oy5kXvF7yy9u2BzftLdhlk0tipB3mzRT-e_-vz8AtzbGFfyblgAOHPEV_x7tRxMG8UrlzgS-qugjx82BZbmrZX2yCkGCI6mvYtwyqtq-k-QAtRuty_FJPsUjnNdR0zuwxEIkvZz1jv4trFfS0E7DhETk0oU7qWpnLeftFKsl7wQL_S6PYr-FQ3_w

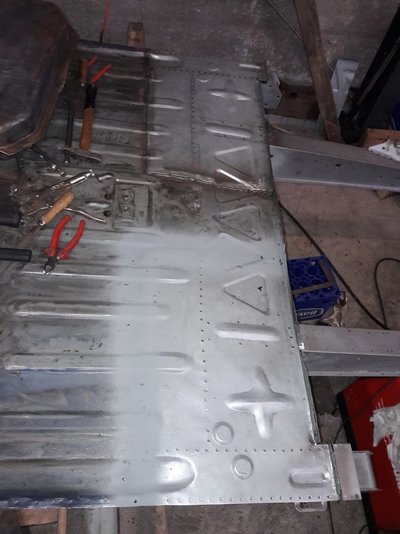

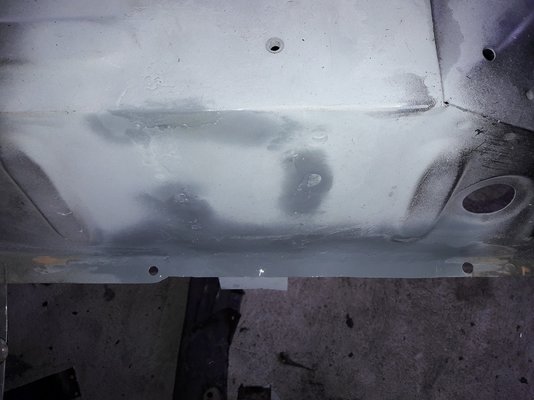

And after some further cutting, hamering, welding, sanding and zinc spraying, this small job's done.
y4mf3iu-h7ZOfxd__Djxoj4VDaJdqbJC_wcZSovnllO5_KaBZWFiC6jbegCy6bAAU3zCCIfm9ttmN2wwx5JkKKsjh2x09tyH0R_jEECtzkQ7ZxHkv_RUUPR8E08HCPTK888Wn7rUWz2Kx0dnp1Zmy1rozgznb2xTDty92d2cYUhM3Gm3YhqrA06_rbMbu8Ai6wJ3nhAHYcStHDTvteaNgkCLA

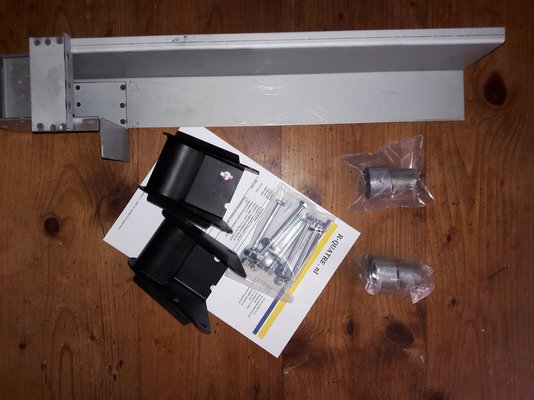

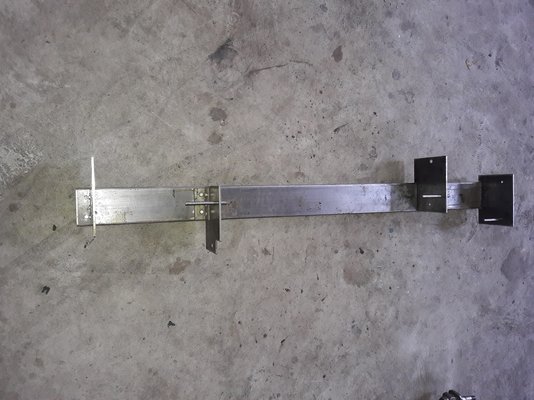

Thanks to Robert (aka Harbourseal). I got my hands on his rear axle jig :clapping:
y4mSiaKIdmRR6hcajTFITFHScPgRtswTD7dq9DkmIdKPTXxf7C0Cga56V-k_9eZLcr_Z9t8m9jfpH4UzgKNrivr09akSIhSxg_8tExFyEgGPGCzv2Uri_C2rZE9VOqPmB_GnE7BLnh5YGXq7TmEEYuXSiESgNK8ShtBJSbzcNzOwPfKDWwiMas-bwqsNypCjKvoZanY_X7ADB1rl0NzzT4KAw

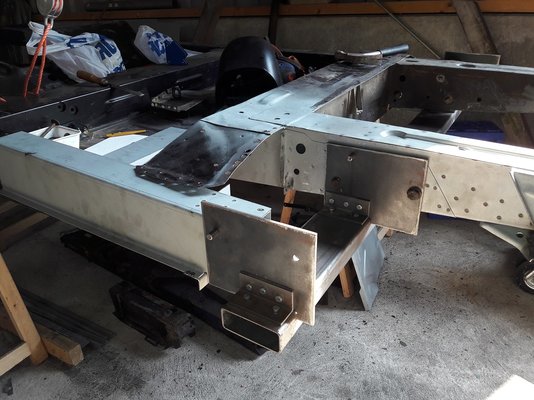

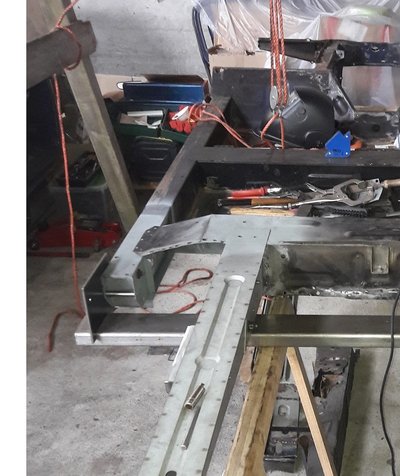

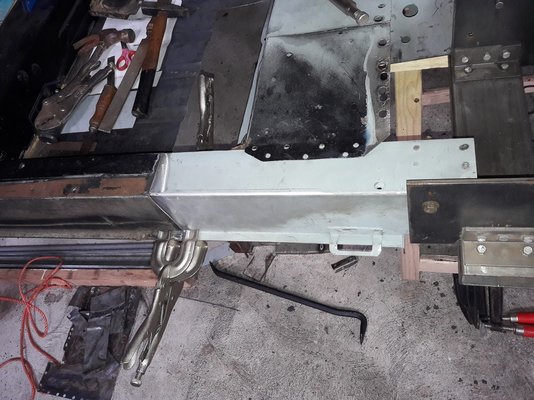

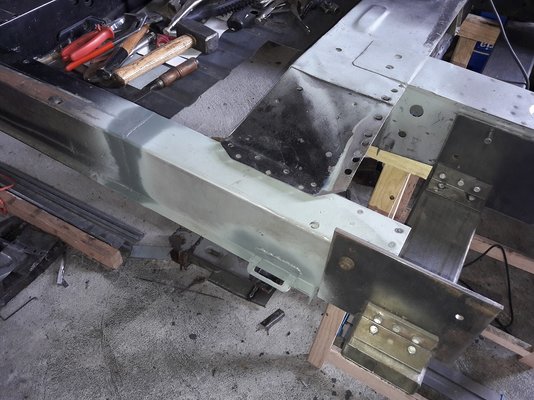

For the next fase a jig is needed to maintain the dimensions on replacing all of the the inner and outer rear suspension mountings.
y4mROxpqtLOWOlM28YYPTQFDH9UhaxCH0n7ZG5UYxqE9GgPXowNnL8ibwAxMuttgIVSqc-qrLMss8VD1b8MI6jE2Q861DTNFqDbtTmHTY3SJZj7SD9QXctC1k34Yb-0e44XSqpMHoLuxRwrPYBRNL5fvdXdW3ZdBPXALlC9RXwUFxztCIKko4G-ZOPjD4XDsEc5EMl_cTCOzBOefDxGLVBfOA

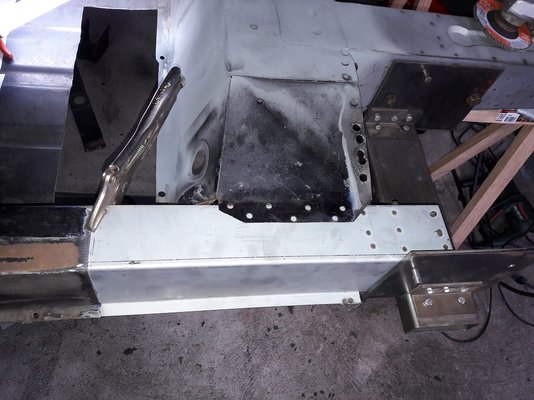

Crude fitting of the rear left outer suspension mounting.
y4m70hzV99DwFg0GozWAXsFieFLzJKvXIQMLHh0qsm_7p4UF5XWbX9mTRatKZAKD_fUFYBxPqLkXxOz2Zf_c5Qwqct8ArimWctjpIK3AKGHpZzCNnFnoULQcn2_rr8LHvuMRdGcQhiu64BvFQX1hjDQ7-5vLnY1Y44eCZGSoM5GSRp82UfwLJi-6SoEVrkwcD1LCs-2cHcpYM4iywhWRy6Cug


Cutting.
y4mL8hfGDgFXG_SJVXKbpr8iJmzCIQP4bELnZd8DmtI3ljO_aUZv3HY-hhY-ErQX3otlccA-HJSsod895hTlaZ_JYFa_bgpAHk-WrIoz_xuODPIjkqFkJ8DQhQM5y_VMo6hXHi1wkrTgqJ5fE4gwjhBRLhuRnvTEczf2Oay-Na1c1xe2Bg706vmXvKXOkTMLs0nNl5lQEcV16Ixvho5lCcDpg


Seems to fit ;)
y4mY6n9xL8aXDWtqDA7DSeUvTBIdy4OpQz0K7Z49jnE_XEJYft1GG5sZYTY5TudyWnb9TxVBQlmMePud-WTJK_3Uds8_4BfkENIHLeHR4c8puIv1dYRWfmhq8CBAB4tMvY48boDZ5NprkaDDnjYrsW9uIgbmry7eZcx-jQmMGjSP8SSRYhdLrvKg17SzGf1OAZGim9P5s35OI4eTC37ZPmEhw

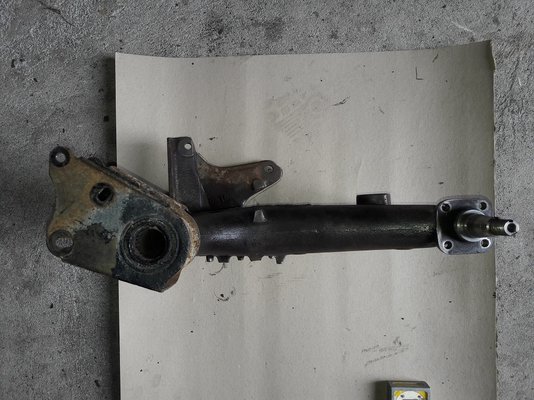

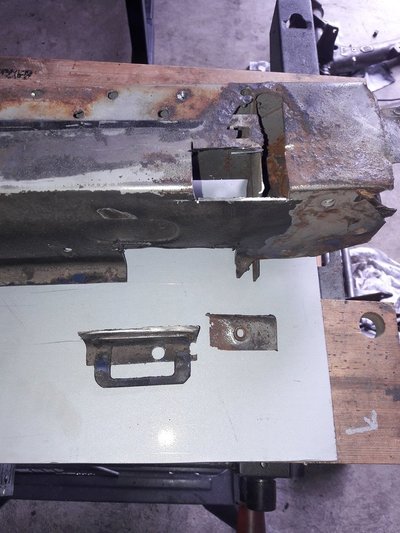

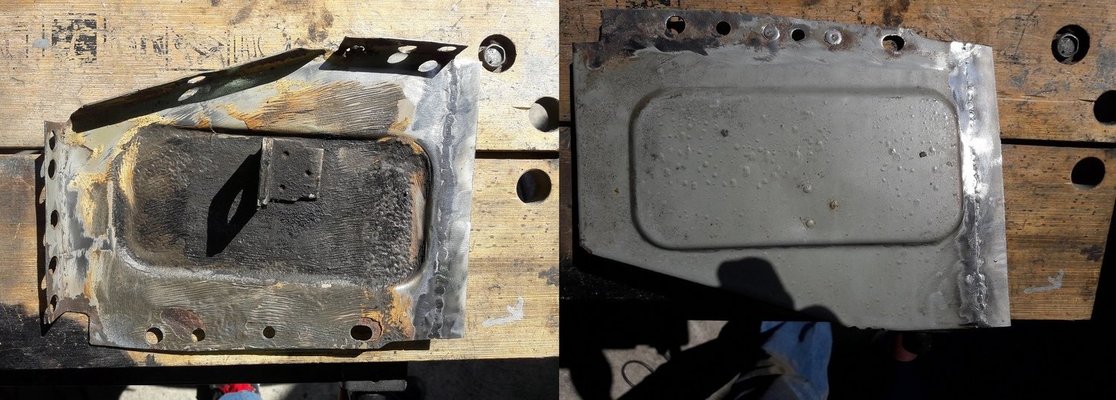

As mentioned earlier, I would amputate some old donor parts :D
y4mNVXiiSC_Qw9XG1zccCjPnKgVs0WQLFhlRCfcnM_zFpEmXWMfYifDNDGavSmUj2L8D0KSfxWqSgyinf995A5kffdX3BniiXmW8zMi0PIVj6e-8SJChabzHZKdygGa53s4ICRYyyH9y5lqNGUrhglQxdg2Ns1mrGZyt5-tnC64mC8zfvw_em2yB9E5-YJhEFZO4qhSoymFclz-cNB0_bSUbw


Gave it a cleaning and sanding.
y4mA7NH-JawWdN6lCwTyjb7Z0gjBltNUbkzGpY5fEmleKaTtfg5X41U25UA5iDW429J14Pr21s5iOXa05xyLuchOJfp9Gtvh8KQAjgH1QTZLEeq9IBzJylbvE6hE-amPqlcseltvxUZpyxwWBuhES27DykUVnoM0nWtpQCzrx3tMtoHH88X7gMnQ8MAKvuCdaZSFasCJDR4yyFrA-mw7FcX1A

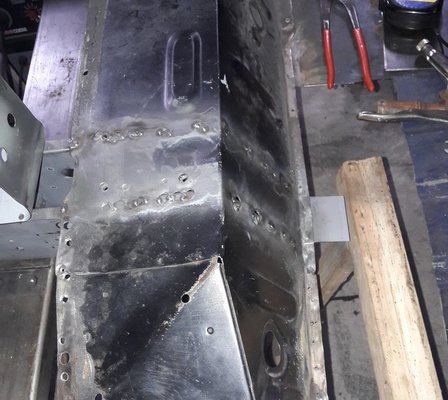

Welded the old parts in place.
y4mpWfC7GaTbm3hg3QlZX_8ORCU22ocTBQPXKz5OevghOpCWIgctfkIaw-6aUOnon4VyMam4Oy5GFrWDoH3hqMSnHnh6Y83zr88hcsU7l0986UVCA5BmSsGN4EINfpbg1x2FCt2mQ1sQVnrsPwQi9zuB6ccOlcAjmLNQPJvSr77tzrHly0Mmi1hn0O2mNwGqCIWyDzIWOTT8E2fDkIMgrtBGQ


y4mZQfQ_aYtdJ650B_neZzAkgsIGbeSWUMED0iOc5JSLzJYvdFkkozPW-SP-WFlewOS4WHtskxJTndKVHLzgzWsWrciSLUQFMh-Mledw8q-lPWrGqCXYdIdECYQjZw-gmenZY2um9pECjUm-xDlmoSSeSYa1LqVZoDCYCWAS6zCU4wdHTJ0o8PzY3bqR1IVbAgYG0-LgVBw1fHO1K55eqFxhA

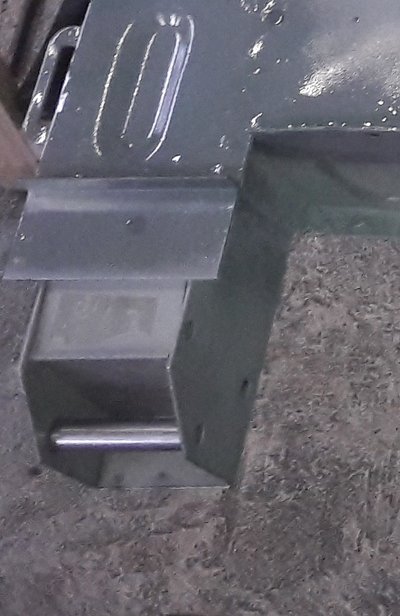

The repair part for the outer suspension mounting is for 2/3 complete. I only have to weld some extra 2mm zincore sheet metal to make it a whole.
y4mgjEwLSTtWSpygPlT-sYHGy6W2__cp9JtEr9-APz65VzDxCbB5i-j63_M0W0tf53WSiaV1hpPjwlUGWgdiit67A0phedjbZXGlvmYvwmO65bt6-q43WqReI9rkXLsCDySa8s5y9-8G8RMcaIOLhz9tdgBrsTc-R6GLyD2zv67tyW0u6JnOY6WLM-VaVPDz8F6hr_rXpZudLYHgbQba-U3bQ


y4mmB_soM4bVm0oyf7rk_CEYWh9Nkp4uXV4MUZUjrYSL_ie5HFiupevqF2LKDUx1FPbykjx8khdz3FSsF49nkRPLG0gO-_slo3RWF9B6f6E-uJZE_SYIB7oHLRpxPVCReH_zcmISDqwLHhJlMZOc3ot1n4A_B2qsgbGI5bkjdl94zpw-V2-82PPlDHsdHyn4zRzdexvCYuZwEbNZVDDcBpVzw


y4m7fEW0xoaRWAMZGcC0jOeloz9MSIRinh7NF44Cz_3ze-rTlkNpFafNAKdeUeA9xsITOMRKRt98kkFfT-i6c0eH_U_rkE58BWX-i1DLssugM7fWHBHO7Kkb0zekeYOx4i6OECXBO7_kCEO738EiZNuzMDIVHjA8Hh54zd-NPPBfuhg_RMuijnVzErJuZHH0Z1K7XV5trvuLz9zoUvYf9T1jg

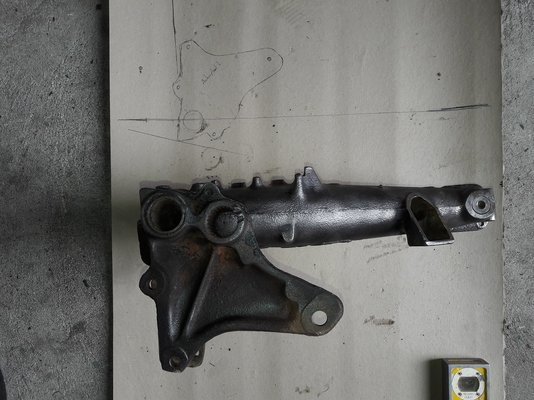

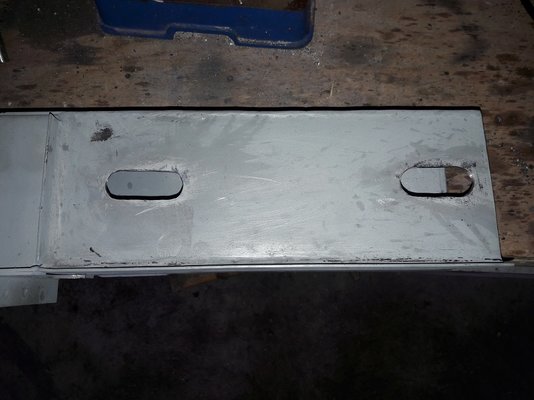

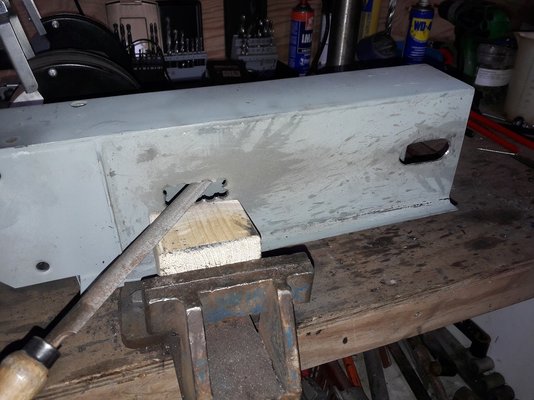

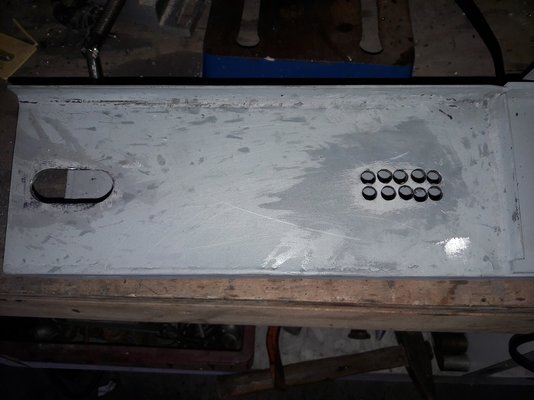

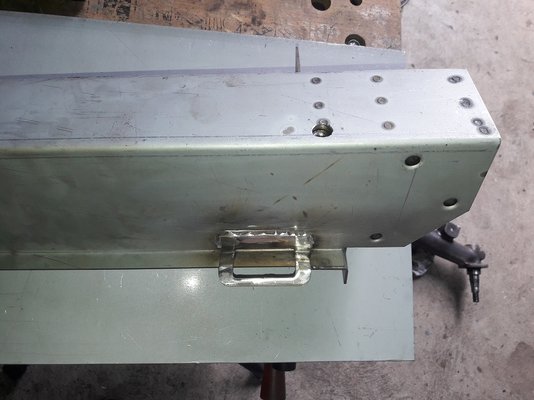

The dimensions for some injection slots to protect chassis cavities (I'll be using Mike Sanders grease) are copied to the new part.
y4mGGqoVM1eMSWV4U6YqPBdGnZrlKaLUtTunTdT1g1Qjco3jpv_vj1l9pUpUYY2vOCaU9VAjlQnsTNlqdlVOcHS3z9iiAakJTx-VNrXNlZTiRtfyo_cW8uUQGIqPvXSE5wtKor1lW2zsq2APcS_Gzp9puwHFXixRTO7HhapwFXj_H8y_kMApVXzkYV8Q-s-legjRqMaDFILQozJ-n15TsuoFg


And metal labour starts.
y4m59kwIQj20UGLZQ9lBgpiUAdIKADhoELeKovzqGwUV2ToG0R5YJC3PVvJ6J4asDOxhG2PqkC-EmyB6SF9lW3TaESNMsaaLEHdKMvOyA5YdF1frTM52y_LmAPS-TLqp09IH6TU2PgvWf8Oggzap3fqQj3eVBE7lzq0LI3iTXCd0nfUlLHirrfJq-4n8bh3ZeNJaPMZfklmtw7F8fDK08HJ0g


y4m8LLNs6i__k6K--S4XeuQS4g8gyaNJ2IvXqGVbDSQXZ-fvV9yh1ca0qSSnq7usZ3OKKIdHcrUOQfrDkvwtTxA5gTeskoANbc7Rv0D3scfAe5qlrLxGBJ9Sjxg2MnTfXWKczhI0lguODE1Cx2xVU7KinYDWBi8UzeI-gvi4mYrK1XalWVqusg8YvHXYlwrs_FWzPzDijt42xoSr8exUXODnQ


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
y4mfVQlRCA_hJ_rlBiGfgRaUVjhU6TCWvmP1KbYza1piaTtJiMbVUWbi5tRa4y0oOWuemsowyQ0ZumVDGIqI4Q8njEqqz0wyb-_KT-JedE01g7F_yrmVVL5NXchA66Y9AnWkj_83HuN00M3tHOmcrTUKtIuBP2nP88eAppOIK09E4ba6ckikTjcOFBmp4dYPmkQWhINQD-ijM177Y3kXhh79Q

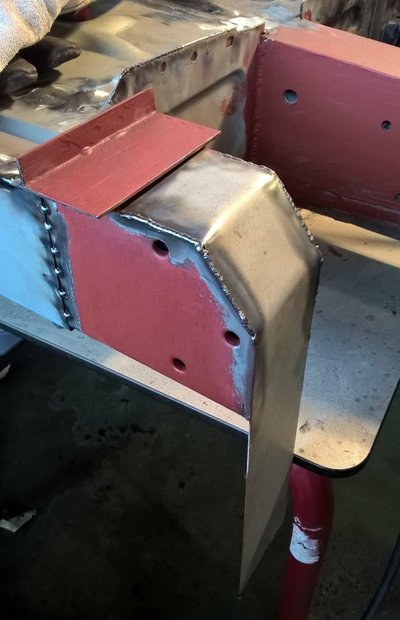

Preparing to weld the part in place.
y4mfxZH380v_M_GJWL6T_9gBmvyxpSrx7vXauj4uOlJci3CcS3ap7ctkvtRrHoXZt-liwK6qbzxXwjjcBFTn2mNQqHuJVbgkALH7hvutoqgujquZ-Lffp9fBsKbK2kyXuPBQHElryOjsFWm_Y2ZXkAFmfBbV2yeS6NrC-Tn0xXMhOJrsod-SSKkos-R9XAugViUvlnR9ssdJI9PDmGWM8poXg


y4mbJ56QHCCo1RCOmPd-sJ4fBTw_LI5Ak4gJOJ30DpHzEzuujbliwu7FJGdQiQoeu0kuzTqPp5cP2twv2F_sYuetiQRP2Qi5_c27rhQCWDHCJ6APNmxYMqmbcYIYhcieZAp9fAO5bEIxgAXOa2b2blhd353mo45_K12GvlZcuDDVE49-lgwFqwd8RbuH15mB-R-iShneIxfecUc58oM6SK25g


y4msdK2JZTRQN3fWYhheaSO4gIjaL050n1d0Swxh7Gp2YAtZptnw45YG4bsdUyoDSGcfgHxSU6A3m8yIS4LNOzVnVy62RGvXtudE_kKOeQXVEo2fIS0HLfDUmxQ-LHHKE-Uz6To7I3H5G7Rr9wfNVveRzvmjCIe1bEmzhursDkCIwwzZ1PzUqSoWmluaIqQySxxR2uYi-6bbTGKo2LjsYyJ6g

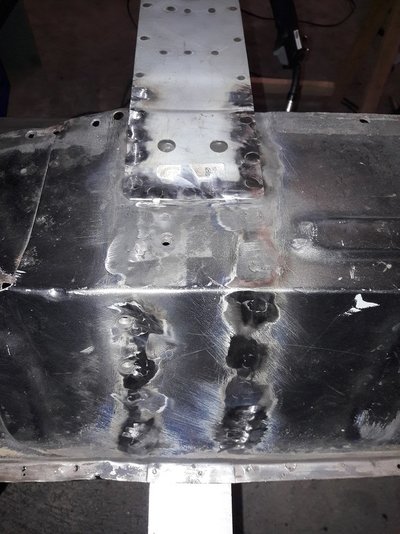

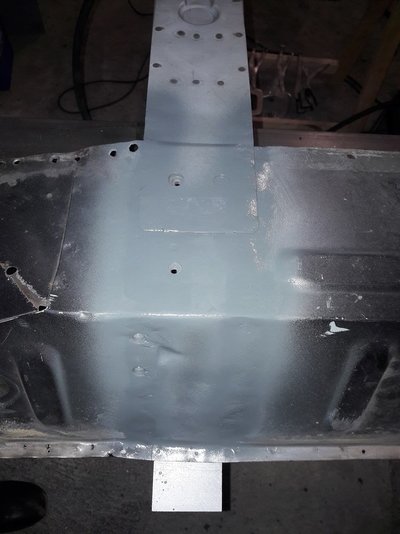

And as always zinc spraying at the end.
y4mPKb4kMVitbkbhXQboxRBgdojYGFUDkamDxa5YFS7zzKvwjypMZzCFDIcacuQ--2RKoVS4EuN_xMIVgn-jxS6uArMDuIBKkajLuHxSkOZsrgKfu23p8eqa39v7LI-tSE-Yqt02c3Jsvcn2w_gI1LNvV8qChO1hBja401EzTerOx1k2Sl1gtr9CdtOCg0TAb0Mifc4_eKBRsNIHSr4mlY6UQ


It's awarding to see that rust makes room for new metal, but still a way to go.
y4mTpAIrNyQUtGfqHFHiYi6MfOWTZ6rFCUhVFdAHELnn3iAI83puNNaHiEf1pC51ftTS7BFP_AqJe5fiFSH1EBc1iV8TvgXHXmHcZTkJXKNcUqukDA1Zxx0VqC4Qtm7c33IPHDNHfk2TOMENJWyAZ_blVb_FwzBVgHurz42pHouojEluRvgBQ_A_H7tIkmF1OYbzPq0dUWnuETNuD8LvZ1JUQ


More next time :waving:


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
And here we go again, it never stops :D

Some orders have arrived.
y4maa_frBElDHdk10F2P0C2ED8rjv-4JR3zmrpuKDOpTSaWmXnPpsbIbthoIwkE46sx4L_6VHlNHpG8vndkPacEG6aHAwuSVEMrZNfALp-v2VWLRyiNh95bnx4OqJpPS7RjDxESe2WqtdG3z5UG5aYAvaszcNNo3zGIPoI-P5x7H1C1_h8x3_BOVeI0lctTbh85QA_ZMbXSp5y3v0hubYhacg

y4mQ31uP_BIjkkSocwSk_mEFKa_G2OozdvV9EVVz3e5hsK4h-n6WuMHP_qG0-z-7COQeIgVmEAoWAmMLTpdqj2KOv6rANfJhqKNyqaa2h5ztDciNOyzlvyBlWV43bMT4pgIouF9BNnB6b46Ud3uaE4FYHrxkoeIhufSafHiuFbyY-CE4u9xaGNwz8L8VKs4ig6ocRbkwib6QeniQXI6FF7WWg

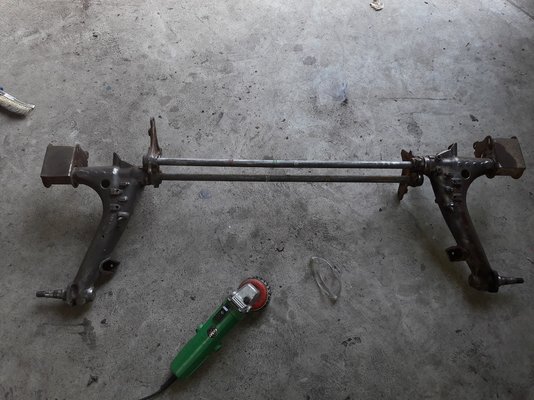

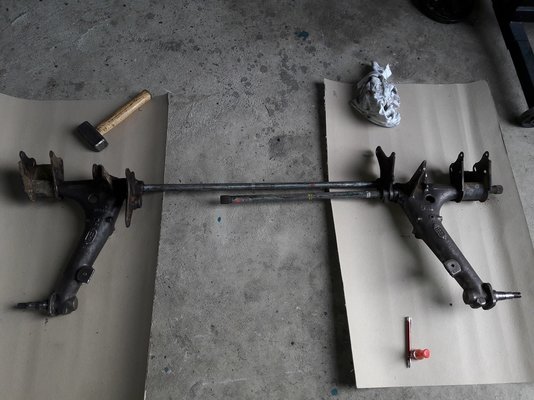

For a change we'll work on the rear axle revision. This means disassembling (removing the torsion bars) and replacing the inner and outer bushing.

y4mbydfdDpaLgXYbImPqQLXIRtlWXlPOfiqJzFoiyVg4SAtm94-xAOxgLytnskXiIO6PBNj4UgZ6zu9ELwnNv5bBTtDW12DNJuXLCs4usSB11lo-skgbzeVveZN9zgy-ymBoKhP21PRZDyqd8LAAq377Xy9IGlLU8Z-MgHyvpXr9Mm5DtMbXiIZ_xuMJSmdldpKtXeO7_ud41MtOBLCAhvyhA


Though the rear axle will be completely re-adjusted at the end, it's convenient to mark the original position of the bars. It's might come handy but isn't necesarry.
y4mV75k4gbOHT0witiKAfRP4WX-fC02HkPQehfydzBnbOVqNV5mK57TXNyz5jcFWDBWmAvTNTA_KxS6WATnQfQOQH55FLitVBspYVpgwCVyRX7rKn-d8g48BdIp6eFBTkMebqOqESA5QU2epQRGL6DTcGoJbFIMHeFhbGpQCNzgDcKR7dE_VZPPYxwNWY1YcWNC8nE9DbimITziZT_xenkX-w

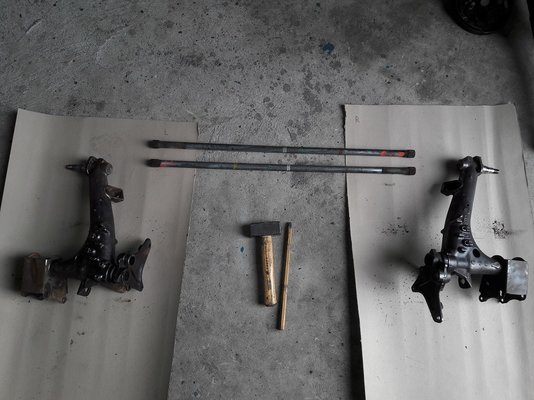

With a hammer, chisel and some gentle force the torsion bars are loosened and removed (peace of cake).
y4m-PQiXwPiQblrePhTJUwpKJWpyaQt8MlQBGHj85RGl8paMx0C5-pG9vcvXPodY2bnSmlJPDi5eckqq9QHhWsl77KuSiQVMHr2cqUF8BN6gVGRzlCGfHZSwWDlBzsVG_0DmbiZOjaonymrVtMF7XXI4uhSSEISx3E2vBNII2FMqYALosSkfg8SAKp1_o5q4em_CsLGSKPHC_AvFzoeiNzBig


y4mJZsIaUYg-pXT8jtgIrl6SDOkbzDQ6mIKOkMEoBD_mHomPx1xNXBwbXbd7eZgMD2dAV14Lu5DjTuqPcfsbddPxBH33N02M7CBqHT9G3ilXAQO9CemHpBAQ4beEf7lTABxfLJIeGhmveVMm0HAIg3DYEh9r5GTcUg-s-CrrEVKdJdsuy-qx8gIp3K0vxig7GN3Ro6TcwN1DB5h8i5nhCJs3g


Before disassembling both sides of the swingarms are carefully measured and noted.
y4mq6QAZW_ZiPeylXrAFALwReK3VBOfr2Qyr8onxx1WDtXWI2zewRd4SqwOLJYkhowQ9KIqkzHZBXCJUZgujBqd-EfYir-zoDi18uTh4jBNSOToe10p8H6mDAWJPSe28n1EtIMbggvRuogOEdP07c7ho6w21L6RBsg4NizqYKjFlQJHANkBwbr5Q66WDSchKgUEODFtRSJiciy1oBe0HQvjNw


y4mnmFT9RRsl4_y2rxA-YCLA3h8CGXj2M-TuQx2B0vDWFrPSeu-EkPDXAlosw-Wzeq0u4qZhOeVMhttsRdlMXAI25iHdcfCFMxMVPNOc71nmySZxWbGZnurjH0Cv59iS9OxUhz5KKhICVS5U4fx8a7URoX9mK0Kzly6TtGkiNMPRc82R8-gCZ6C1Ug61KtYnpr23MQDfPHcNshWyDvnDsXkDQ

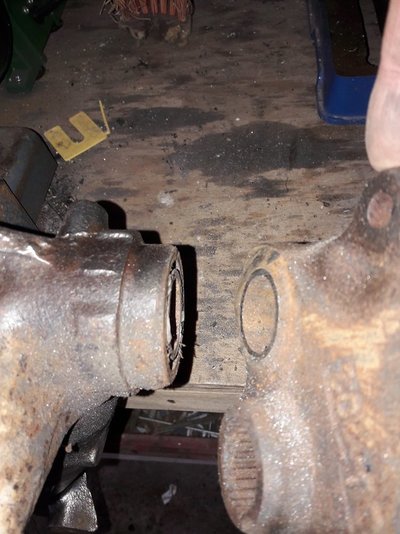

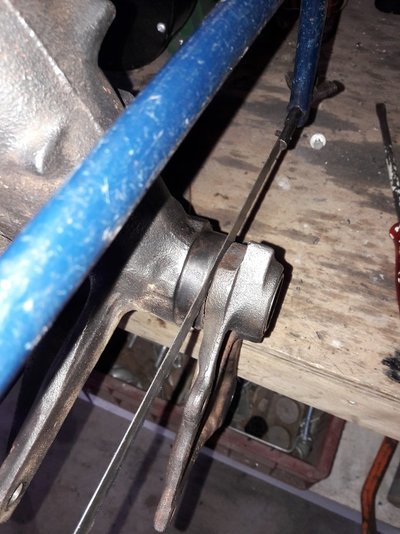

Now disassembling can start using an iron saw for destroying the inner bushing.
y4mbEdhsENd2fa0G6SxiJV0n38uBAajAWuljgEr2V2KRUgVq85qPprU-Bq9Ie1yQH9yH0bWXsoSdIPJM8JwegPzK62ameSLVTHh_5OxLT--nGt42izOnNZ1LO5RPPQBmKH_HiFlZ5O00n4gFkjEO4SLnf2VPnlizJI78GrrzmKzafFbA4Rkm7K5LL5_J-RHAvW337dQnnuG4Xs48h0TKVK2sA


y4m3cjeVBzoFtcypveFgCIn0q4MAGEitmuy1uRcmgl6MidkRURbci7IS-FlzwaS8aieblPq_QA9IT-wrg8LQy8js9AxxvZf7CxZAkyE_gBC0Ak6DzzBwmbjcPeVV8bKh9WG3UMybVduDJDEJg7jX6rAZdsE03ddAcZObXLHroRxIx_vZ_s7jmYm43IXTYq8koTCcQ3IbHLaowEzJdjFCFss3g

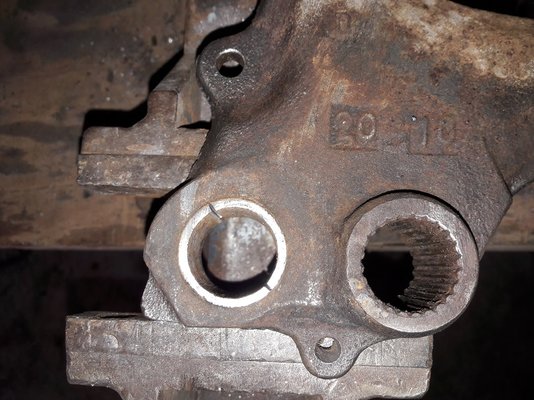

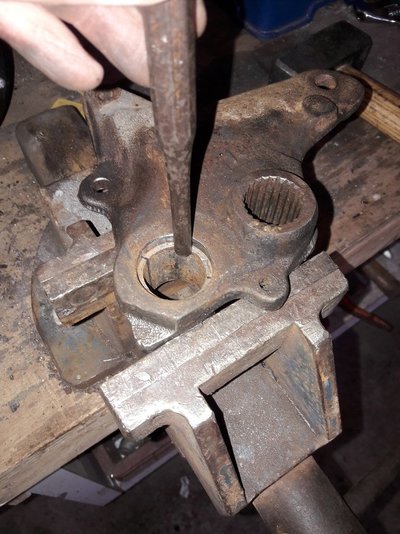

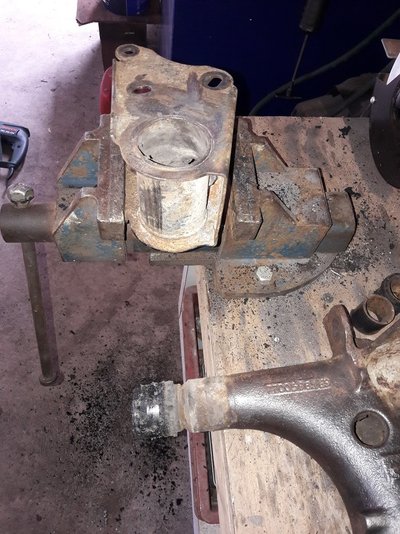

Before tapping the inner bush out we first have to weaken it using the iron saw again.
y4mYRQFsFHl0Zj5xlyehgnLtgkn_-M4DLe9AWObnwYNA7ckKtwd0CWZxAz-Pf2NZaZB7LkM8Y-zc9r59BZpxOQnQdcVhN8m6K2BTWdjgyVuUcWb0LdL81SHX2qSGJPOxq4GkqyV6wXTgc5jM2U9yYFgHJbUc2-B2GGGAMBxkPXIpDAHcVj6hBudCPvG8eouFrTU5PaGQvlFUFut273cCBGqmA


And tap it out.
y4mq64fSA6oCm7VJ50-bEOzfuZQgbgLKkQPm2bzrr4qhIEYvlDNhg1g1q-Kp9e-1eTZy-ruA6yEhpQiYLVTfepS-4Czlb_ANthfVQ5EwJCMgvbblyAG4tERDpT57ppCi2Iw1jSs2KY0tWUzoiXZhBmCdvl9GaSnH6Xiv8IwGa7lhiF7p5iwgSVh7O__ddbpexrUH6kisaEh8s21rHgyRt6RAQ


Et voila.
y4mk_Qf55s3qhcvQ3oHI-36AVY15PAehaKJv13t0fPQ-JbjPgJ4S4CnwVGNF8oqddkArNZ4_fY_SVolImo7bRQM6JEjP_-IJyRJ10nXcgJDLBkMkZos0CGG95mStvFxpEiH6jkAPnFi3A4zGzHDjS9HTKRp3eKruNFZIbO80fooBai1YBzf_8wv4TDOKvijIeSFZs3E-a-v8ICXxK89pTbFHA


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands

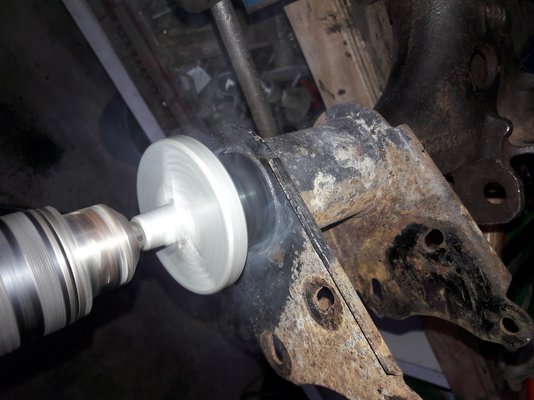

The rubber parts are weakened with a drill that's better than with a torch...
y4m277f4i_HDSI-3W-8ryePgXR7P_EKcbMoc2sQxQCedY2zpwScT6S1ZFeKQmQADUjMEK0JpS7U_SLB5cKcMJqQgKpY9IdQmut37lC2fR7JSM0vcYgE-N0dWuX3aGC5sMLbGL8x-ZQlwA6eYIqTy5awf7O9j3Yzx8DlilBGUrI1i5OqivCaZVrzYgMt2_7aOqNcunrb3DkS7chVf8IBmkQH0A


And with a little force and pliers the rubber bush is removed.

y4mO_TNPWsEWhbucqrgfwIjr9nc0mzvhF_mpYiqDnLGVA4C9hcZ1ADYcLl_QrDlHe2TRi4mOMFYCkgU620XJyplsTKS4rsdEAdPa_ySvyopbuSAD9hzRH9IOgqJma3JkEleXruJxvhlJdSp4mVNUMTzAdcnwUdDglL-Ic8JZjZmmCrNny14js2lduFaOskPIm2_aszPfwsVM9TO57o3LCf1dQ

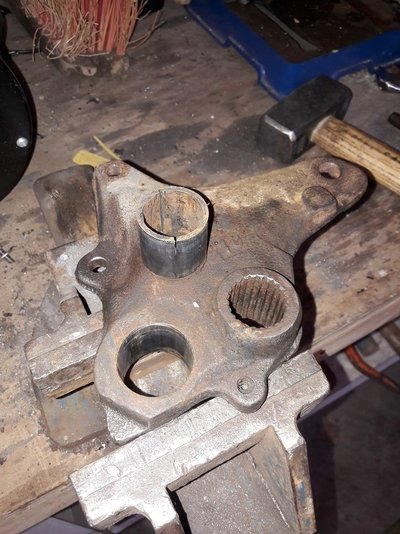

Leaving just a small inner bush. carefully we tap the outsides in and this way the inner bush is weakened and can be removed with pliers.
y4mekZqSsFwu4DPFWSR5Tm3OnbqZnpLkuYIbcDJ1Zhy3nEw0VBZaXQWkRZQV09kaJ_t0PNo3drwu3CzDj4gpY6HGGQ8z251xX997BRbg7VYXeV5ve3T8DmwD3EVV8usogXwh8IWs4lnW5b3Dj9n4zUa2gMd7iQaVv1y4HQKDgbzxxdv2j9Kuj626rfB01mqsATNadrr9iv_o5UxJJPscsNdOg

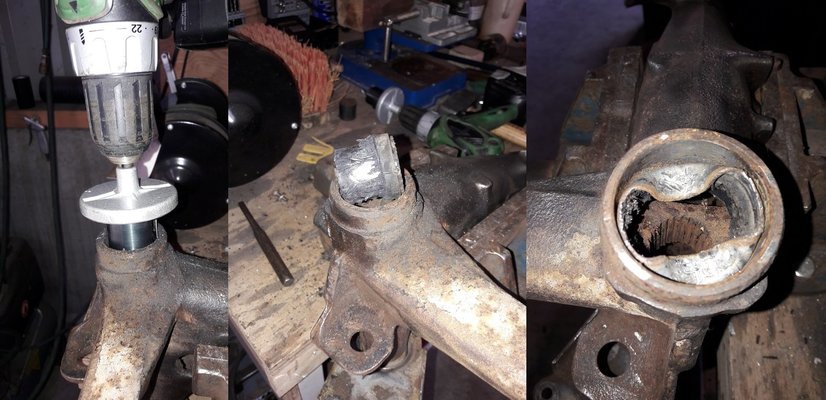

For the outer bushing again we use a special drill to weaken the rubber inside.
y4mNuvcOegc8GEL8YpuaGlSOh01NNu-4C4cs8hXKzbeglrdslbglyI9jPDjLapOL0VtvPyoRYdtayovbZ1XgCI1jwwUx4ktAJezVPYJ-iQMORGpQWOFnVX0G00Bx3pYUe2uU3IVXHe7fG98tYU9n8ZrxZhi86EEJ1ZKjcJYDzovACP5uvWuQ1sV-ktbpsWqnFdsnG2YhtrUcTl1BWisrouvHQ


And removed.


y4mwocf9rzCRGHPJdFMCg0zHDniDHIjEMk4dEwgns7DcZoBCSFWu5NK2Zd1j9tCMKq7JJNH2X16D4Nsjf9G_RG2d1AH_SLzP9A1nEoNg3-xNdCLkVyFGueWgTnHSmr_vRuW7ILPUzDJk4FyWeSYjNmf6i2dQ5_SSsy3EXG16Az_IhJ-iCOXTXsOWo1wm9BvNUDvqWEWGC9pl87gFEA_Xscs1w

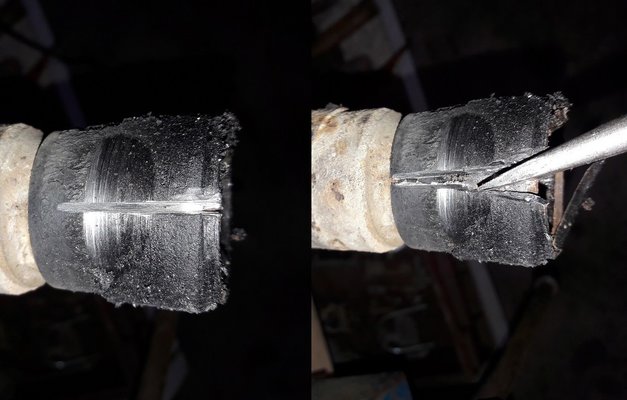

There's just one pressed ring to be removed so very carefully I use a small cutting disc just to cut/weaken the ring and not the precious part underneath it.
y4mQguOPgB-SAiH7S6JkjqGA4h4c9R69eUNCAPXcQInAeAdjAA9AhV_m6AKmp1lAdV5LZvVptTPLb6Slty6KjaGXW0wEvA6hGoevi1RVBADyvc38oRxvwhx-LF3-fWBfB6rgkU_XciQFfG7Ac5Hup3TYhCMS7JNCPaWZvhGa_BJJa20BO198j5MWo6Bxeh39P4ze771CkjXvj2ZC3YZYDanUw


I use a large screwdriver to further cut and split the thingy.
y4mKlub-Sd8v0O_oa68Ak2nsKTsDNoGiRvgOZw4TgBfSA39nVwgNjiqi7EWzoiQR-GloH1yur6A0cRPRc9fD8EAiJLVj77i8mi9CN2OQNvulAZXjStw9urEymdpjyWkfg1BGiaEK4YqQafaztMS_tamUcy1Sf1vfWtkFuKZyL0s1C38M8NLb8NDk_f6sAYml3rJZeBrG-13EmeFfprjQUYTXQ


Now it's easy to get rid of any surface rust and give the parts their first new layer of protection.
I use Brantho Korrux 3 in 1.
y4mgJhSjpih5u4oDoiPPo7A46gZZQPFNvK1zsKQEVzCMiXrwfYUNbekQDC1qhx66zUJMOMn6ADGveAUdSK1JkWdrIDjrsLauPeo_k3tLDN1i4o5hXYFBBXn3AArcaQaOMEV39kGhGmntzDQukw3F-tiL43Uw532U0A2FhcTloJwwydjV7M1PdiKPqu8JxRRFme6ESU1RSbvbbpsF8n0aPUp_g


y4meZImyOc5KGkgYkt_w2pTiuRl_diRbetZfZnmcIgt2q9nBYriocWNLDQHlD-Y_wNABNIOlBfYB68jV7zeEER6U6jB2ul5qeozVBBSwdXqOG-nCSX2dgRUDT1XxVp1JBsBn_66bBG2kdUbsjaXgZ-WjjJkYvJTWYx3rNXrtMcSEpge-RfzWy_-LBgjS4YnhxUE8ydAtcdpiwI7jLlUliybSw


Time to start reassembling the swingarms so get back to all the measurements, notes, pictures and start getting your hands dirty again.

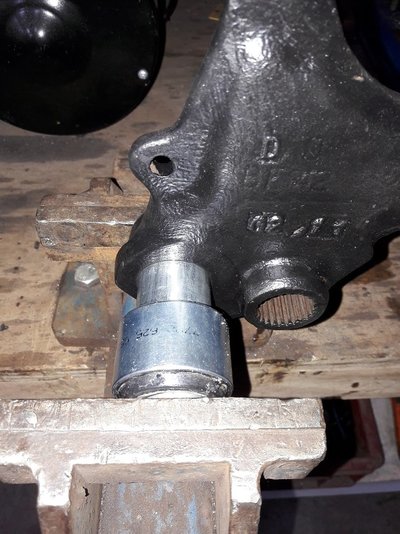

Pressing the new inner bush in place.
y4mbGbvczp521vxFd49YUPzxfoU-NlKf3vistieWJqI4jwCcjvLwxArp_qhE50AzLw_y96e7ETN-hOx0aGT_FOsYCpz1_KEvQUkyCIDcZGiW14K1Q_mOWNd2UNpFvkhPCKP_8BambP568_nz2A29yD2C2xJ6zK6bbPGMDccLT-tM8njlLtrQU9CQZDy00BvFjwJOX5yQG6KzizAuVc0Ki6u7w


y4m4Rkd0zuO0N1ck6piP6CN_2zODSOmfryt4T1LxSZcqem9g01eHrffFcs-_SEPiyL_0dk5fjgPgaO79tTxS8BUDQX2i7AYTBiYg73V7EGOIoctkYf6OnQFVJIIPuVHfkXDLNDI4xGUdAElQ2VLMuV-xMxBg8E9iTrSDIhmEaSVtdDTtzhQPC8qVYVc5teLGuDfu2axvA0ohRhPsg3wh5_ihw


y4mhKMhb_9_106n9W5wd5Gt2kxAcz16Ov8diJJeI11LWiz3Trs_E_sfqRXgcwXUzV7gK24Q0kbyCEz9wBmD_UMWTltcgFmNcPjVinCl8KN6_XqxeDhoFEHjTA3TpLHCSUqLWRDp_E1yII1vEapQKjeTsOP3G8kjqqa9tv0Hcz_cp2wOEi5F-_5OS0FEi4CiLzfyu7zY4AG8oboxH0UKBfLM8g


Almost done.
y4mzef_qyjsJLARFiZ3dmaMaBpQHGtaqNK1Iq_VmU2tkcSRfRyAeFucisptipTJjhKyl0q-IshWloARzd_9TvKOQSgw9qfG20gLRxkH9n3ccY7QRmKhcEyhRUNK7LkWksJ7leQ3M8qPFfnmAuFDsjUK8f4ZkqQa1CvZPNtzjA7zlDmh0QHlAqX-mLU3QvtyplMRXSiOhDZnLllhj3Xlw3GkJg

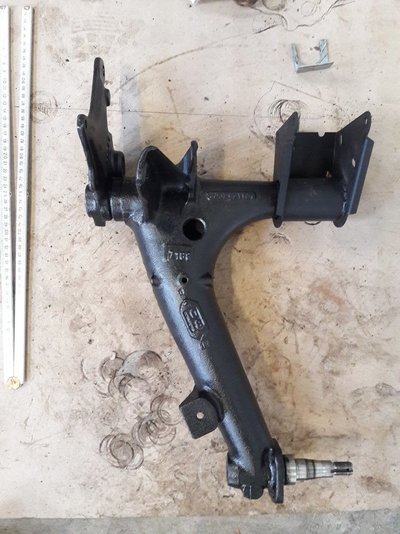

Right side done.
y4m6Teg5gv6b7IuVD8NY5Cr-F5OdplyIBmtI3dN6H552W27UG9nE3n6K-VUJD1KUvc16RGByZqlpFU9dStsT8j68hugDOmzg6tRse7qLLG3Tbd-y3VWtbXdeXXKaztSYj-1KOuma36LzRwJqvuExD04WNVTHRHTPkMs525-Us44D_7g1t-uSzb9aVRq5qINFujIHZogeRdnu7qsHaunAR0csg


Leaving the same procedure for the left side.
y4m4yglmyV9l_EWVJu623jkdN_29gsn7EGAF2VBQVP1OnsqRAMv56MKscg6tFSECesthycpw59Qiwy_-_m42BtBiiMRSvd3C5-iPIbqbuqt1drdL--rqxd3NL-Y_osABP93qbWFOVFs1le2iGrXQ6RLXvvceTGWOUDmtuciV4TX61WymIduQknFTCMfMyV3Hvl1lbv73smmt9HsQgZAA6oTvA

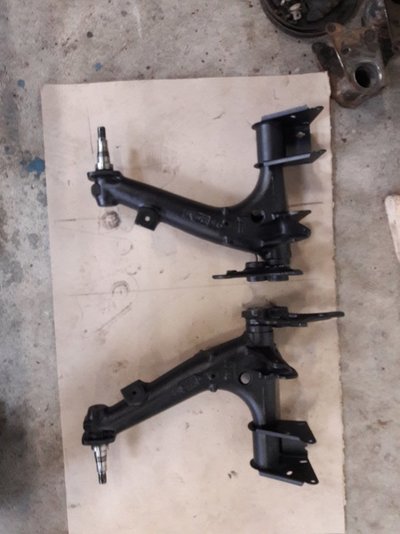

Et voila, les deux côtés sont prêts à nouveau.
y4mJM1rmpOhccTbV1iZyeDwHcFyb65yv2LM9R-608iBTWPqo4bxH5YTXWGqKWh_Sw0J5Ccsv7_-aNAT2WCE-fZzsKK9XCVic7Vbkb6K4RlLjzerlQAGfpWKeYSO6f6VtXutSp3_Ysf8wnftw11N1czOCKg2uuYh01uFNDaEHOC9v2Y1XP3_l0Z7s6hRhvJipQkeFLvrhp8nuQ7vZDwFPy5qdQ

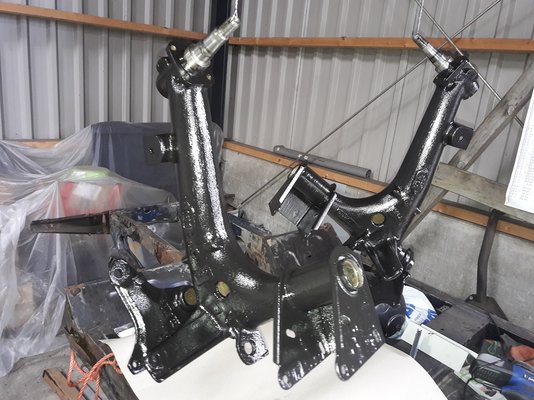

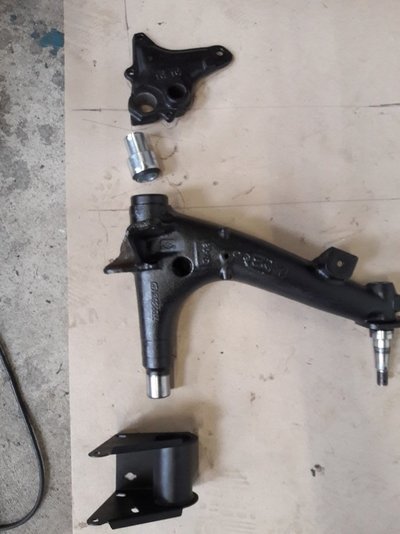

And the refurbished parts get their second layer of protection, and for now we call it a day.
y4muMEVB_BXsWxbLU9RuXsGRNWiG8kQWOhAvhhsNbE3copXOo9IloraRBhuzOUz7_vrt9B2NMblHJDuX7Di6VBiZ1V9NWC21Y5haENF7ehH-dgA0fPH2CckhLVmcuSqwv4IaT1oqqBemQFWN0U44vBiX6NeT5DJ0wHx-dERRz_VtjjR0EXwC32vTo0ubsSqZMgQeYwmFEIF_hNiEQ2QEcMmJw


Next time more to come as we start on restoring the rear right chassis e.g. drilling out the various spotwelds, cutting out many rusty parts and panels and....love it

Last edited:

JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
Minor chassis update on removing the right rear support beam.

Pre-drilling various spotwelds.
y4mVpDrGa55U8QGO6wnLf1dJ0ndbomFtC6GRIG_JcVKnEsYfLIIPAR91y_HHxOW8PAUIG60nK__5qw2Ct18PNvohm2zQlHVk5I8e00OHHmy2VbxQkZnIfNRv54l_IN-UQEZNv3qWJWLgo_wJvWm0xnHOZryO05B8ic-vc6_2OYHurmyG37P4lCWY8AqNmcT2QY675hTSG-6aagupHMUO0Te0A

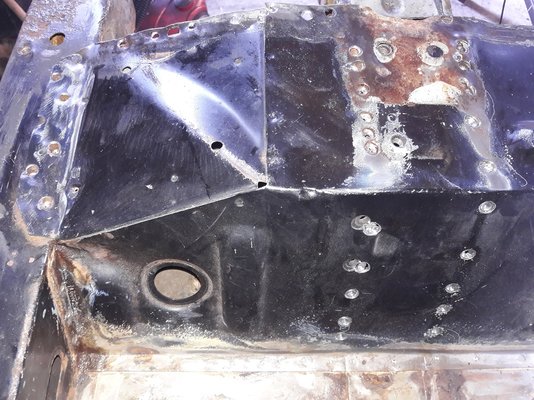

And drilling the spots out.
y4mWQKQhj0q0ECtlClbMos-K4leGfOLisvb2LWoDN4z_XC4mgBFuRWpoF7lUwV-6q2EDjB1HN1u-MXaxyGZvqLmT4gvjqqOOrhMxyF7ROGzeP2uJ60iBMVGYqEFptXzXexdurWOvENiYTlO3t7mkV48NObPpLUU9MxQ0hndSitFo9z0QDLUmvohdnZJa96p_WtrX09TQaA5s-V5U_Vbl1e5UQ


Don't forget the left side, right side, bottom side, etc.
y4mREiOYS93yWX2Iw22WOTYet0gOu2-mPib_XJYg3txp0otveWwxfjiz8flkc0BXW8GG_IZ9IhmuWvjFGZL8pEdJ62SFQdMcf7-9n28WxNhLxh79DBOBnYSUTRjwRCdN5Zkr-PKSyS2EF_y_I-cHNJ8hruvFIj9PsAKxqJfeQlsm_yNkHy9saWmHmuwef5_wZRkp9rOlybN7yNLS5d8eNm1Qg

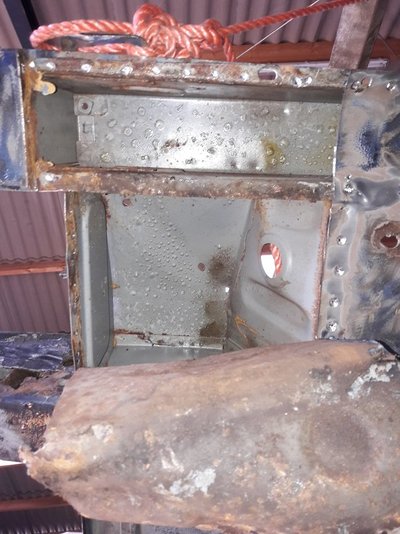

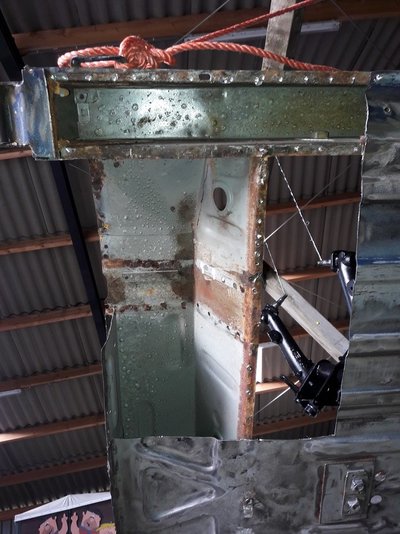

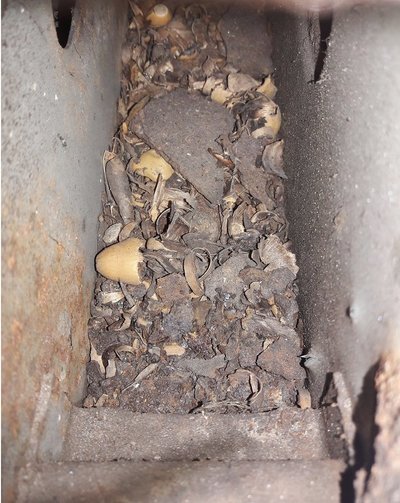

A peek inside the rear support beam reveals again that mice did feast inside the R4's cavities.
y4mtmlQv08CXgFhVVJjEeCVhFFtq4IKJCGMHtzincL4VFiRX2nvSrgXc5P26Uwat2yAvd26xHb332T009YmY8jfrrolnZl_vYR-izZkoKaamHYo8jUOw51KN0pc4VnhtdkD2IXmDkWWpDlt9Sh7hn5d7Bv8jXb9dskWnvtTNxOG79xGA6aheQ0xNeUQnViEfNAEWm8vjXo0_lPHWQeJ0nzeAw

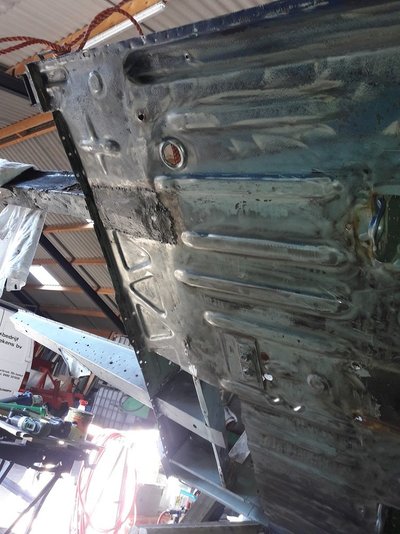

Further we go underneath the chassis.
y4mn-NyetqWxLWPtz11OyVks7U1rJqy8VEoywBP5pUEly3UN0nADN7e9q1C5BzTBkaPgJJ7SkcPzDXxMACUOmq3ypVSOuooFyPMaj9n4-4Gfw9dxYTRyfUXrHFD8ngpSHSuexfS1jbrGjHRNwCwY8BSYxbU0qvA8uJzkO5Eg4AyNjF1B3Pkf-XEflZxW878l-FVEf2GBj4C5gMgnBSaWrXl6Q


Make some room.
y4mMFEJegTZI4QS59LzIXX7yPm8pX_rUPI0iO_YS-RN9OFCaKDvCPCg0-M8svJHhFqvMVuBNT8_Pw6HlKFZkWMzp8Md__4axyD4DA5i-jmDLpbAVEEjjQqefaOBqlOn5TlGdHsd3ebQfpJD8YDWLGiVuE4zxe_ejdqajjL3Xhtd8MayG5c3Ep9kQZ2SQKbvp6OT2YXQbHgfEZ06IEudG_6ang


More leftovers inside the crossbeam.
y4mIw069xEbMUSiqggPb969WXIPK9vODqzjKwGaDao7wWQfPF331Y8ifV7olv7ukVSDJquq1MXZrZCtTqEc28I3B4UYGU9xjcTWRqhWwXlQUCUDWR0KmpDLDQNzrNWcWAhmVYn8NzrlYh0SUWRcTYumTGWNQDYt0SpW6XY6vCGYeTOy95erihEkF4NfuZQ-T6vA-ppyRktN5vnHFdqxDGABtg

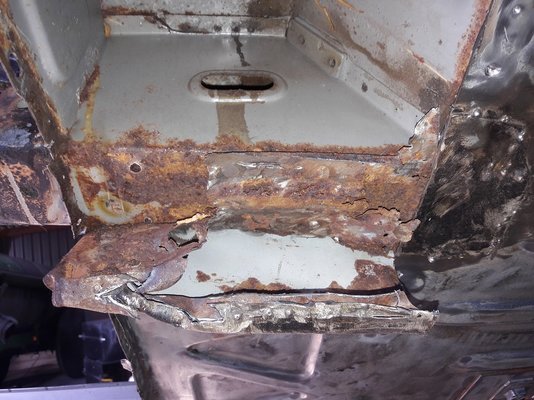

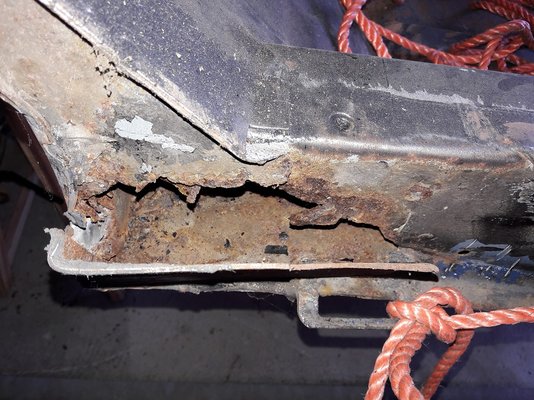

Revealing the rust underneath that patch panel, typical a fast and cheap but poorly fix to get a car pass MOT... This is not the way a repair should be done !!!
y4mof2Oo8hkeLBgr5Xmb78sniEDgAunMayNgApSrber4bJM1ruTgT-HTU6FkdZwLMS-fFumOAOZgAFVoQsXIatZncPDvdFsJ1fxZH4X3F1SgcXnJZ0XrYrR_TIALhDwV9nMKwBkXHCaI0nl5CETZF-RZQEBpTd2cZCnV97-ViFFZva3Vbuk_TTaj_Ufd3CKLv4kbeGwN4XiAlv4Gg4aPxN88g

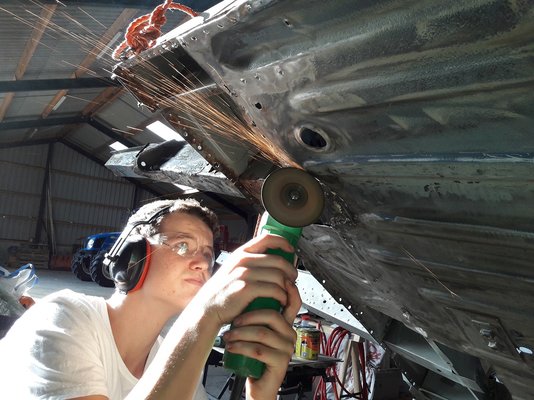

Fortunately the youngest son knows the correct way to deal with such a rustodrama.
y4mqaxM0X0NeLr66U19Hs0tbcwdARNLu6ZUFI62IBZqL1isxJeLRb33cCBu1xk7af0HqnhEWrgSaXVJF1ebEkQhnz6Kf-owkuRWrSRsaH_t0EilAfKWljjUX4ZdBYNfOwEbf21BJkT_4QvqApMvaS-0UcHY_3HYj-Oix39cy97nF2K28VgIgkRxadN7_BX7iozxyCmtQ1A7mpTD-Xfc__NRcQ


And away with ye olda stuff.
y4mCD0JJWTpuX-GUtS74SMsG0V114qx6OXZBNoL5SWm8es2I8MUjqbSUktMXI88DpRSvwFwQURaoamyGYuNRxj_BYxpEF50J2052YJarJW8DXpfrawZO0yyEt2Dsg6Oj_NuRPBrvu-6YInaoll_iSeW-QTfJG0t_KQY4ql1xOpjJHrdpgDSBVqasGPZo0TidhX3TAGh7pNdTHLa7wxA883KAQ


y4myWPNqZI3o-OY4thz4va21aSRODy0MX_Kntm1Oa0dgpXbwuThQ_D_bLgpWozHExbkck3jLRkMFBAxO-y0qu5-dW4S9dODJuE-PLgvIVmgYJCVdcQ8vcFnzXOt-4c4x8IeeEb64T3YB5u8h62Mt4ucDK1v1jYFgWlbfuiE3EeoRSF2_4M-Ea3SiHqWq1JsqaWANyZJAphXpgcVG4sdaMeWXw


Still enough to do in preparation for welding the new support beam, but that's next time.

Last edited:

JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
I really love & like your progress Joop, keep it up!! :drunk:
Hey Jurjen, thanks mate and how about your progress on the paint job?
We've had excellent weather conditions here in the southeast for the last 4 days...
Grtz, Joop


Fentible

Enthusiast
Messages
29
Location
France
As ever I am in awe of this level of craftmanship. My own LHD 1984 Renault 4 is currently languishing in France and I still have 2 years until we move out there permanently (Brexit willing) before I can begin the mechanical restoration of a remarkably rust free example. So just wanted to say thank you for the high quality photos and accompanying notes that I am sure will be of great future assistance.


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands

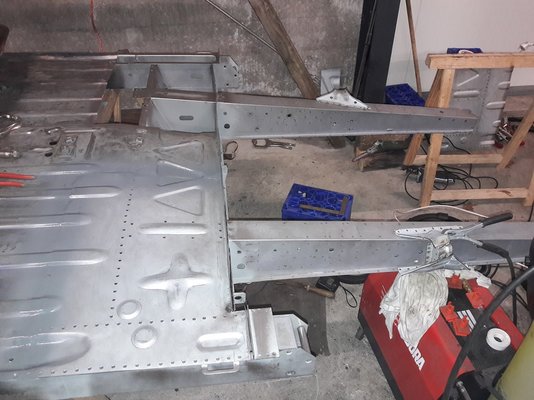

Here we are again with progress on chassis works.

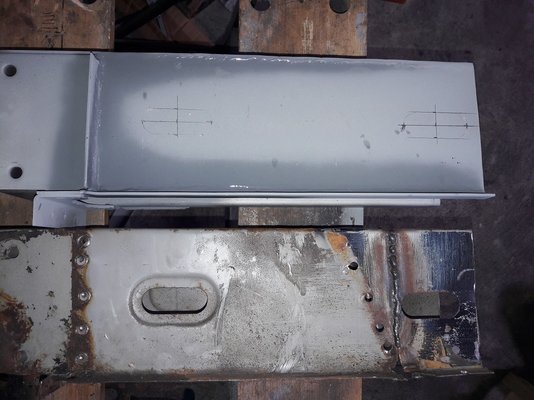

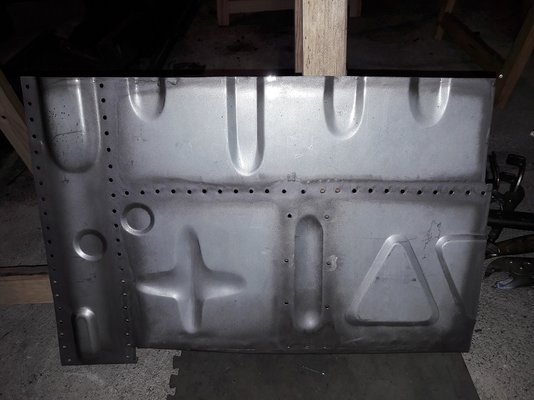

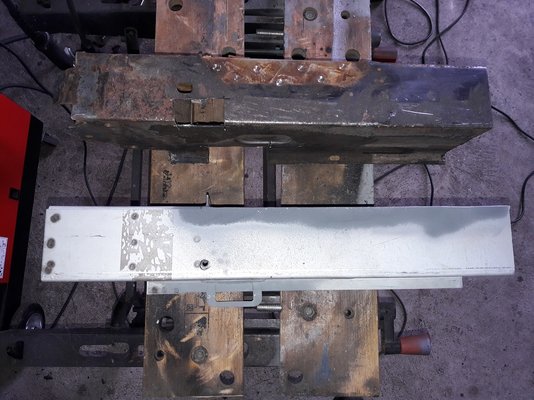

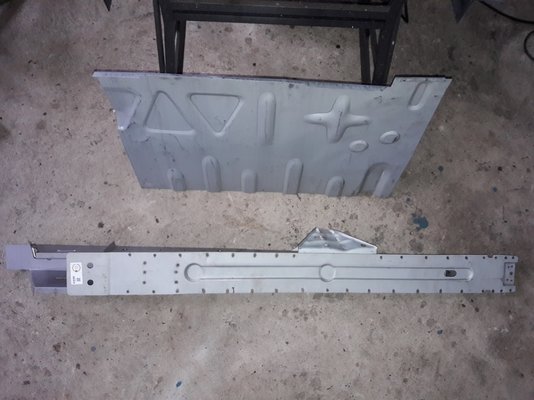

New parts arrived.
y4mPag_nzxFM7NTX6_cz0mddpXpP-LA9cWrlhFb5SJEzs2rEr_ij4Pe2HUcaWDtgIUUq-JTv0VWYllhydGn4q_jSyVBvEYcO80Qu7zXBOBVz4mFs244Pixp6PhNmaAFOeion7PVLoiYGzwkLTaQcL6-Ubb0k-1huLbDw1PdT_1S9Zkq2I6M83FNrH-WEbQkmcQWBBcqFsW1oVH5XRIHGh1Y9Q


A crude fitting using the jig.
y4mnqEhiwwQvlt6OmTdHYqtYr3RKp1R-8vOBq-VyZpVv535H7pAFzwJ_vnpxleeIKsZI6vjiwj9jDMGM7C3bbZa4wGQ56uD4Xb7A9Qk9AjVFbepteypt8p2WV2tFPDS71sewW0qxR7JCVXiCUUPTvBhfJtbuuAp4lCsA-0uoUxxFcky-066gu5qWwjS0ApbZs5uM2DQfZJ22ZduLKYjCh6h0A


Cut away the old outer part.
y4m8X5b6R4uvTHzNtd_UD_Z_4LMV66gY4RL2H2VnJoV9lpoZ9ohtUOGwdKvGF8Rs2ig8zXBygRbeSxxu1Xst6kWRW0LeTkdlMKSGniPT8EhDGNgHo-CAzPdrWwKacRLAFwYfm-07SgO98hmX4c0kpMwGz4ymlbpIZuagmG23CJCADG7Qzd_yRcjLq4h0gr37gT8jVFxcMdUlcCzN38DWeDmsg


Taking measurements with the new outer repair part.
y4mDOhRuZw-8P6Jf7PMEGjU3lG0hp7LtlPWEX8_bRMQGAUak4mau6pXGmzqOMF0EK7YIJX-V_cpRi167ccj3_FLUyIMQTSggrbGSvo-6cnuxMlvfZlSXmOtkUMnrdqbU9nAYx3Amq5Hlpzj_vtRG-t0s9T-kiFZOF45dZC4CbZi-6r-3Qt4WHi_zT5wxBrIvTHgVfZy1IKZdrPi36j1VXBGnA


Again some old parts will be reused.
y4mfbSM0Xg61x3du7ZzaxefdTmfk3Zklt9aZmBu35XYkhnU12tLTSfz4YlzM_K4Rz18dkudxrBHfd90n-q-WSHnCiWFM1Rso0RPNfJqr594ruMKgS5F7hEosEe-mWMQdl_ZX8cNluytgYj6r-uk0WRqdxB6JblBrA1FN9QtJV_fK5Nb1DTt2AXRCcaf8WzXTBmTGOp2S6WDEys6hMWsnKaGtw


The outer repair parts gets it's extra sheet panels.
y4mVZyMP6W526osIDaoLtT7MGcbedEU3CsI_GP7Pf0aEwTuc3z1EXAz7-vGjtMgdbfDmU_YFsL7HmYDGa4rdXt6cG18tcQe2ROmZN4287NUnWrWL3oSYjQZcY3XghwE_yIgLRmMcT37eRKhpZEQMKXDD23Fj6T5WMGU2A2_fhNFU9VD5SX08duJ9IqJ9PTZ4r-_3YEePdN1OGXFxKfviVGxsw


More welding and grinding the welds smooth.
y4mRyfRgNj-U4OhGo3b_lF0dRaj2ag1Lx4VYOTr-UMlMipXD7zoGivhRGzqYRUHTmfgy4aRJ0PGRIoybueth0B_GyHrvtWtPvHDqvLUlnzSLvmWe359Ob3okd-8e3BNIQv2hEcr1aNx8a1xIeV5dFGdXObvGmzgYTtuwc4lszCIPbjl71he1RroNKiLnE7CrTgWRaQC0ibEsHscySreRdVu9g


And after some hours the new and old part, hardly any difference......
y4mE7Iz0NhOiu7lz5SlhFQBHUB6iOH7CjEhHixdmAPmAzZDIagAmC66FjS1U-YC7VcVIHrTv8OgCORgABLmm-MuUVIUdBuoUUKz3rlk6YLVaOxmZHwzHlO4AT6Mz646jckSaFxnsp2oR-WSm4hBZ4R429xcFYvGMV3LpNqVHTKg2lu3zvORBdVs-D-5oq0smm5Um5Q_tLTdYwdbmajTwZhJ_A


And the youngest one is also put to metalworks creating the injection slots.
y4mcj79dLZa7LPy2EpFHSwadzEAWEgMmvNJ9sYIC1tfMtGbzCb5POEuLM3WZ4yUPtw5j_wWYgjjNGBnXWPwNt-9fUUVEu2xVDYdACqyvGTxwhFPwz_9ypvqW7eGTgu2lJB2mbiq6S3Bvj6YDFG9if1Ce67GAYTbD9_j3DpGronS9mD2g_xCcaQyY8OgiEHnPQ3OhmDu4tffcr-4JfoHo0MYLQ


First small tack welds joining old and new.
y4mxX37UT02ak5UFFnygxw4PQE77EQ499-nKLg4LUK6mj87Bf5_52dP7X72fCPcwoTqgr95ZNwi9k70_XVOt4STtymFq6dIMwxD-bb8QyyrNzZkvpC8JRxDK97qG4GdulPaUx7aD20ND3-VUDffUpNDnt3_i3jYPc7N1HasI2pVUDali9ZzIM6SfyAYZEIYhO-EyulPXh_0mmE1GembGc-RMQ

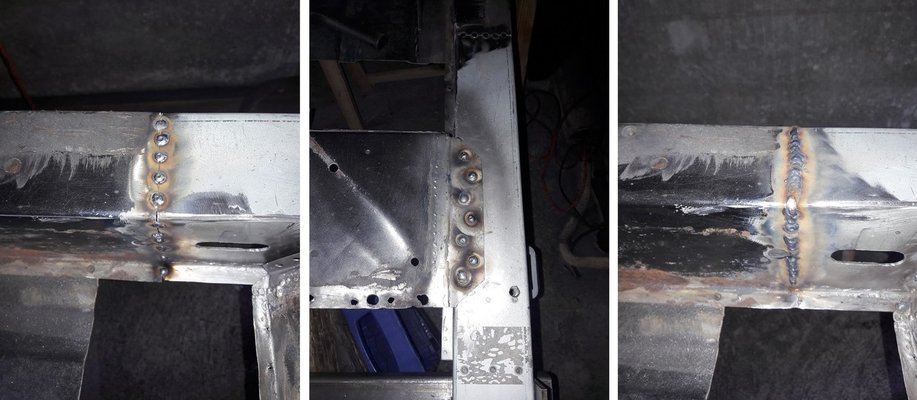

Plug welding upper side of the rear cross beam to the outer beam.
y4mHrhYKzFkxtzd7K05m75K6Ou9SRrMcgudd7CLGIB32dCpHZSSPlQ4wQ-vMNfvjaBWhppmzYD4wIO5ITbwlSLOO6IN7BBZ6gZ-aspG72H_MHWGKvwlPpUenZ3wOhvTeholDBYPiR5L8NG8mhh7RtqwG1moKys0LeBBsmhi8A7whTaMbYXYdCwUV_n8_4clgh8PTfYhBlOsV25G0mz_xESGQQ


Seam welding the outer beam all around.
y4mU4ne1bIzQgaAfDtFP0FfyfmAhx-dKek4iyTQlaSZB51XgTogRIIqkWLTrcpC1Tsw8NHGrXnF8omhSeDPMQX1iIH_LxVCiUzhTfM2B4ur3ELxRNKSntBAl6VFCB1jJYoOoOlivGk5SkOVngSQIshpu85_n8sRhkupsBw-kL-6Lzx_h687dLlHexJ3djK1b8Aqob_vvoPIWa8HE7bG7a8Tjw


Aligning the new inner support beam and keep an eye on the measurements.
y4mK7SdVTC6Rjr6JGYNJbdiC7Y93fTDLTbYcAcVCnWUVVEy8mXdFF1fvbuRs1k5tD2_pd7tNiJVBTaKr9IsHdORgNMFjuR7nFoVgMsTTs9PmGPBGC04zc-Asx_ZpaN2PqOUIqNRUbddv_BTMjvLqpV_cXMLsyGgAwsCX1fVyi20ZYXRQoh570bQyhd2u_PqqTSMCd97KAcfwh1lEUFjMX58rA


Plug welding the inner support beam to the rear cross beam.
y4mrW50iRjNAgzz__zr0sBME90BMuwKWZ3atydmdlQyFpPSAoBSlTCWNjcqFvBhDhN8NhNoHnUdA5xQQ_9bt9usEHVnONbrZ_9h6O-CIW_F547UoWPjJsqLhqPCmYJ8ykhxG0GD2pk4iFmrJ7AbyF1j9ed9KkvqXj3wbSDl59JUGCCKe44Vjvcm7uoNy6q2IRU2cmO0d69LxaMEiuw05RSfZg


Welding the overlap in place
y4mB3uJz_AhLb8IJEJR2LOre1Ihxsdef4vGXFfIWTLrYhjoXKJRV8_XPyACIm8qPRKpvfKVpJuyD67QBfIRGirjZFnwEKwRRnNRhE2aW6lQ7TQFQD6PdXLQO1teRQvbUD7XtAz9q9TcEB-w5aE3E00ofUj2RAjtRUK-JkP0c8VDl0puyocmb2AHPP1naH-qQ6Z6PTxjuRzR7-lazUbDCQL0Zg


And a zinc finish for primary protection-
y4mpUdIwD4Ga5BPr3nYjK7Um3MjnkAY9Qe2X2sQhcG3p2Ru1tQ3oD55AMhZUnCC5yDFlhBZQahb34UqYmUdO1_Ws6AdLhJPGWuz2ZgotD0kzl6K2NwnKBTv5ce_WLU-TcPLR419cmlJCTCv4kRHQ2OnOv1EikeS_QPpgQ5PSER0Az3RSA_y0wAWvHatNrPtizTSewopIUX-qDpBmCn5kTcu3A

Last edited:

JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
While welding the youngest is cleaning an old panel.
y4mdj4VDigiBjgRXJmqLX4cnbt_lIQGBgbci4QyH0Fm_xdJO8lQPyWD8SBkJqWg2DA1QaPayRuNfuvCz-sSj-zpJdCLOfhxJTPBCnX7Nt1fA7q00RsEVtWHfFBpoAA_NjtuO_5Z9Hog9g3hcfNlmmiOYpyzYC4XdE31f3Gv6KiYOZ-26KxCPFRMvb12PqKFQ67TG5p_qduXl5cNtpdzTjcW6w


y4m_2PNoCJHuaGyn2yjfkUeNbRxYYcFh0N-wuCgFUEBtasSLa5or6eSd3naq0EAxbUfHUXyH6b4Jjd89hssOXCf1WZZPsCU9TcVOky7MMk-XY9lKQR5U8wZeMYAsY_hHYOS7XBk3e_x2eLDO9Bjn2Cq9zGXT1E2tVKMz127XJSgUD9CSt3F1t0lVJ3jiB-btrx2dGWd39S-0uI-aBpyWRLYWw


Preparing to close the gap.
y4meDMF5qYH_R1W7TUCazPxEgJ_-eUVsDwn771mrQmpZ8hvFpgyHJz5ctL5_tNHuXy5bgHKgcJrjz7ykD6gRrPL8YLYPxWG-a5c0f7n5U99xCXdQAHBfdR6S-vSJIsaNTXYN7piKrzpVIeojhc5_ApRs2kLXMUstcb9osWIeR3xewFa68sv7Ic4iY8VVpVJF8M55yVDbbsbyue2kPDQLZDw4A


And plug welding the panel in place.
y4moJXgqBcsrq_hvJizBz9Sg1XRlK6Tr5yeZklZY9DKTDENeN-grp115HFtu1KTWgIUc9xlrSf68B2_OMBpStfq-CPVX05lwCR7uE5OxRqdyDib44LrUdlOB9hY5rNDPPsr34qDXo4F4Mu7KnkHiZCFKAliSKLQcQb-9SUCBS0Mgi2CFY_PU5c91_O5UdDzv-JVgTLcApNryU-u5AlY4Gc9iw

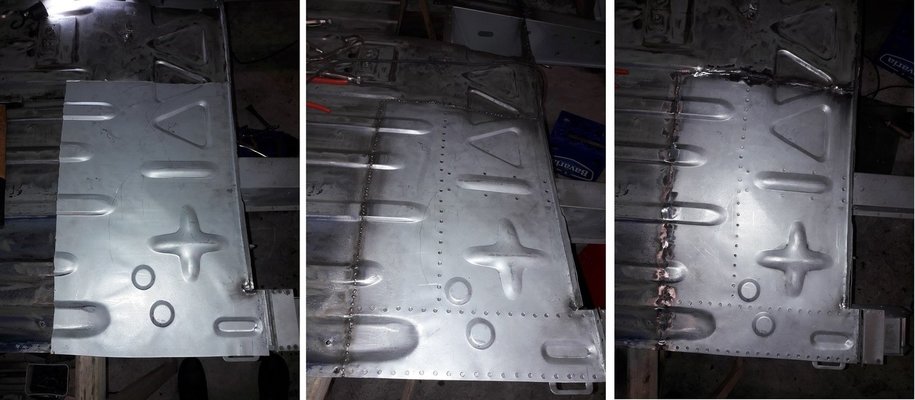

Now it's time to fix the floor at the rear, so lining up a rear left repair panel.
y4m8GOm9t6ZYtP162qTcbF45Z0kJD7mFAbe5bIk8vVzS2CbxB3EN_YV_Qo5w6NKHXZEOFoxlukiuskRwe7NeOxeriX8gYk96cOwxAPoBLt7iX4i8JcDGKxLkbI5diWExsiiXS6OJet-18TgDPjqQoiZz7KnACNZBhb11-Wz5iayulWQY6fqrv2XGjfCb9nuf80NdiTGbWwiHHiUWqX10ZF4UA

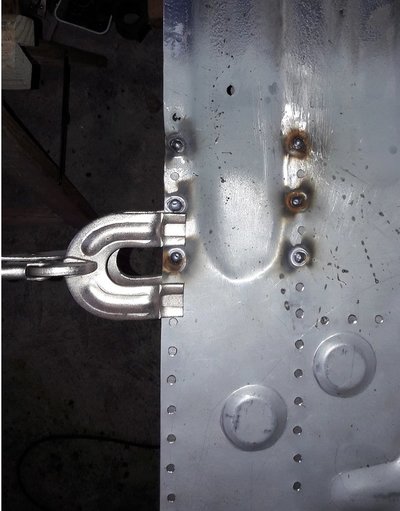

Time to plug weld the rear inner support beam lower overlap.
y4mk5QJrSpTA6uW5o5WHTTLHwvMVIWde5OFhomad5ymJK87LAkqgd80TJdqOV-8rE9C-os3197TQ49hdiSYgz_vTYJNybpn1sswEarh0QSGWCjYqIIlOuPNcFfSNFdY0e2heilY_W3_Y1mlpCUYHu44TFC77uHKIteYB4H9_JylsN13p1iT0rWPmuZV00qSaOhwkgs-78vaFEwoDkQqYdoB_w


Preparation on the floor panel has been done, fitting, grinding, fitting, tapping, hammering, fitting, grinding and drilled a countless number of holes for the plug welds.
y4mNdgxz8wMXQRuWi8wkS6Y5r-4WfrZcVCB66-YA8p_a8RASAsvCcFb4VzsPIrv8Nl35mvok0_fUMyzAYdodDF3VvuJSEjZqBM8GN8rVH_nXMUtMv8bMdrW2OaQjlDWDXY3HCrygVAu3ZRm_LdzwC4p9jJRxOURj5KGRa3zpMPIgHvRlhBjzurTNqbdwYrB7zJPFDQx72Hm19wXMzSdAcoXhg


The youngest is starting on crude preparation on the rear right bottom panel.
y4m9whopVT808192vYa17_uCRSjcFcBHgcKD6HHeUSgqKGzU-ySqSgyDNanACxqY3D7aw84_lbCq6jSrcyJ75XFTBiv4oCDzh1CxIJrNCBgZNfw-WoIM2UcrNXgv5O74bn1p_5Pzx8H-_Ib5wVEHO8p4rS_1pF3o-NulV1W4ur9HFN9Wsjw0g-tcWR6sverzXkBPViHWMXkL78gVubSGfFohw


And again fitting, grinding, fitting, tapping, hammering, fitting, grinding and
y4m1eIV2NIV00pJQhnTg9nSFVBB6FKnFQ-G69I88_bTDcMTHspK28goYeP3XhwXNRCtHKPiiPpoKzTEW9kPZRd_26q77QWnbUyNxdt_NyzPhh6VumutZ497DKk_BRhRUK5F2uXwhKCeUe-tIvJaJJ0Kq82X6NWFXEEw9JbSurDsCnLGoydXiIrnsLK3U3ZEJyGJK91ZL3o1yeXuFYjCoOPj0g


drilled a countless number of holes for the plug welds. Then tack welding starts.
y4m3rTNRIzr1vbhgQv9pEUUJHppoYhoYI8yUco53eabJCVy97uQJ-1DCcTqtuLJcFC2BkLbpKpbwIlBoVvPBtVQpzuFdvpiUBDLHQxglZKb_i2JQiahd7_lajOwrTer1A3O7HPdPQKW3UteA__pNa0H-Sz5Pwh1vjcyBR-lAECBZKupobl234AuCjSEm0fKa6xiOUSKVuvqM6B3XPn7lw--Hg


More tack welds and butt welds to finish it.
y4m--yLsNUmdvTZFlVw6kadbOn-eyGKbfVkkH_UsJMSiySZasoopNInHmE8eCQAryzgtbyPdaXnyuMu-y1f16qY9zO0R9Rw4ApJhg-2KZ22vO5hwPxLzQWJvofLvuRiWz53yp7UwfEDJ6D2oRHfPNkzpR9oWqMRyg2R7XhXgfi8BRyL__GSKum2oEGnX9GiRiL5odOT2srxAsES9lprTM3zLg


After grinding the welds again the famous zinc protection.
y4mtQU95T21tGTp5uMaLOckBRVj1A11vhIPki3RadnbOAhBscvehhQ73P4LuEZqi0nRt7pHRoqRDaVm37_d-o7HE28HoQbhOk15u1INIMg71Yj627uV5BhQgSJvYqvTAZAZSqT88_R_uJx--Q4TYeGbgoYMlFMXWdnoltFrjqnhnahn_IPs2D-BUq46WzGSJWuCvEIqTVVRYARJDpRasunOnw


No rest for the youngest, time to clean the gas tank.
y4mRlCnye02THalJYbi4O7E14u8pdfa5oiKg-aLJ3KUfxtE4-hrtmCDPRU8xLrY7FAejt98N7XleugpY0muOj8vUMr_Msv7bfWK2RJf1UZ76u_JJ15lDDvwVpZcdL9SXnlPk6vTDfyyizx6nFUKhDVcFbCP50o_Wit5thWWrWsX5QhnPE_gGSiuEi2xwZ4RrlsCirF25qN1vEOKaAeEf7yWhg

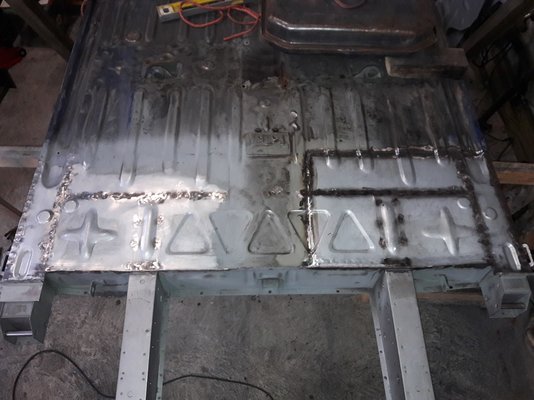

The rear right and rear left floor panels are butt welded in position.
y4mKVa8UNk8psedljnRC5M81K6BvQQIH7j3CVIOFBmxnNiKDuf7RYeEAsDjBnVoosEEJNTBVI3C5xPKW0cPFWKZ0ptqAebgnASUC9QGL3ov24aW2vtTslGV8ylQzs3JgRO1AM0UeFX5UJHDKbFJIozEK6Mcr5jvi4_UdBWw804RhwAEm2Nmn3pQWJXMk8gBX362f_8ioY0uhw8u1m26d0qSzA


Plug welding the floor panels is the next thing to be done after Christmas.

For now I wish you all a merry Christmas and all the best R4 miles for 2018.
Cheers :drunk:


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
Love it, love it, love it! :laughing:
Thanks for the compliment Jurjen you did allready a hell of a metal replacement job on your chassis still I peek sometimes on your restoration pictures :clapping:


JdeW

Enthusiast
Messages
699
Location
Laarbeek The Netherlands
Again a small update on chassis works :welder:

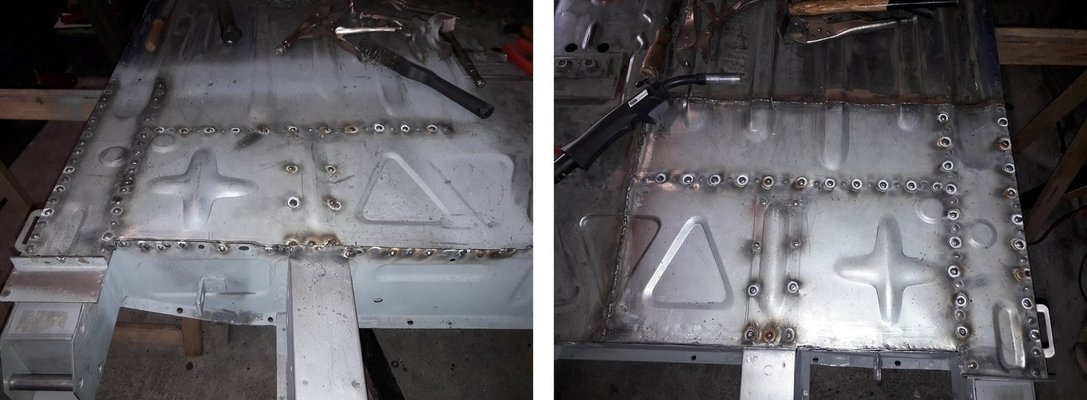

Starting with plug welding on the rear right.
y4mtxrb05vyPKy0pb3PtzZPqRuzBqO0dFCJ3Oa7EIqC-TAxdabTRIGH0CURIIHvMaIEYSfDstr3ALbG8HLzzpjHB6kbu4yHKNcBaBHwzBeUS6IHimyXoMjXkhWdyW9yn7jrnl1b3ttZ3pHCXbITJgdWn4qa8LQUQWS5WadV40GHK5z9CKZzDEBrSgm7_MY_-8YFHgtoi4RiLc7V0uGsq7DKYA

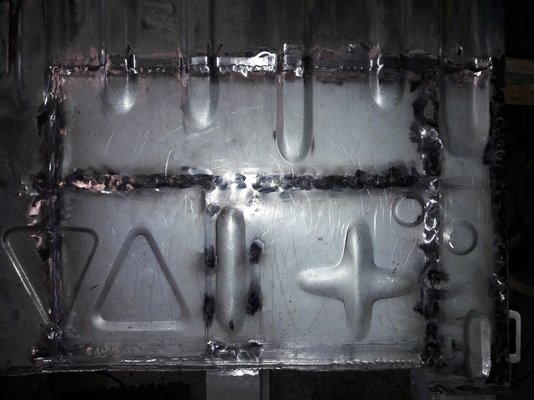

And after a while it looks like this
y4mDHkza97CBnL5TOYVPoX5CDE3akP_5V6zHAK6zoRNKeKWy0xIaQK2HGZdo3ebFXKzbw0Jmyom2oG6tBCOcrcbNnNUX-mHDNRnPh6l2LWh39PAhTP97l0wo_ZCZ-2dSyB11XCm-cqi30n7baECMmEI33ZplUoECnattSakj25veDNMJ3EiDpZIB7hW3bwU9S0yQmFTMYGlK45BlLeQqO7lgQ


The rear left also get's it's treatment.
y4mCJ-lZw6-AUZoyqQQ3Q_BfuYImYaAhVOTBgTbhHTmoE2g3rWvQfmxBzSrIUAeE05A_h_bHAws-D-iZZ3BVrwfaigAo4ei-2JerDZbzT2c087jjEviMBnlIDrXEx1v3VudsEC8c9Po4mGp-6G7V0kaZqdgKP07U5UGWjd9ERLqRkbj5EYQi7p0AyjWvBm55rnp-o8lmqgMJNZgkhx-qmINOA


Grinding is more time consuming then welding..
y4m7EBa943paxorKk18qygMqZo8IKKolahkI50qrsE_G28_QX2SetcZjj5TZhNDkMhCpzHrM6vSGcjUy2cC89P32h8EqJN23maxbsHVeLLCspMbtfdhXvQ5sxak3UbwN03weU8zdu64GG0cVRBVFBchy0Dcv3uJ83Ite4JEO6qmDLokqiCHXnfXGmulnb737aOc34TKshQjBc7d-_B8Si_RTA

And after a few hours and a thorough decreasing it looks like this.
y4mj_UvQnLpY3IIQRBU4qepP8LDSavMHdRUWPCttlVGTVGTrMafBcPGhiTgkMYMfMzko0cCWloOvweY_W4rPl11NKPkXDEN8b8BVOgxhIbXajBCAp796mLyjvbCK2w32nJOLc6H-ndOywoLe9jGORjfaG-4Q_ActO2JZBZNMNRi90B8WBfqExOKuYZRIiG3Tmt0pO6wPwnS7mVVBukbB8aLaw

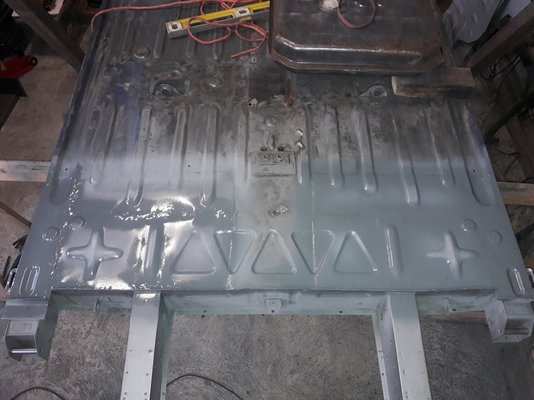

And off course a zinc protection is applied.
y4mDL0OpZCejJjMeNKK0WmJH2qcPUe8LfZTbK-KO8aP3a6AOnLVPZFzbmBPVobMpsk7X3bE2N1PB77PF4Afv6vRbmlglzlFHWE1GSxABaILb1Gj-hpXmB2YUGx-ajFH6U1GsrAOwxecHjWqVqhvJMLswC8J2byvPTOkaJSvtZUAGT8agTWk1XmIr-Vq6V-Php99C-Lt4eeT4FFLnnaaEOSCJQ

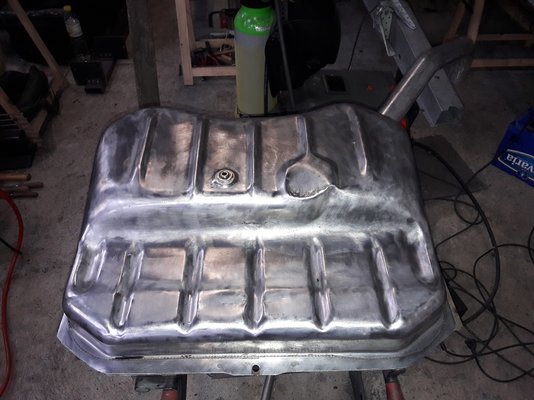

The gas tank also get's its further cleaning and decreasing. On the first cleaning job I noticed a dent probably it occured somewhere in the R4's early lifespan. But it's not leaking so no hassle to replace it.
y4mytQNQwmu4hK9VTBWS0B_o2-hSQXFbq_bdhsZk3mqM1dMkYnut4lKx48kCy6kOecD8CiTlvkTT55VZlD2f1tlMzwpNxQ-u6Hq6YoIlE6an66UxzOh-4hog-7vYDNZaPlBpEEeY8v2S60HwZHxHQasDYoKkajoYU976BxaFMZk5NCCfhzouN10hYLL6MCHylNG3XMXDAAYPWtzlWtpDOK_wA

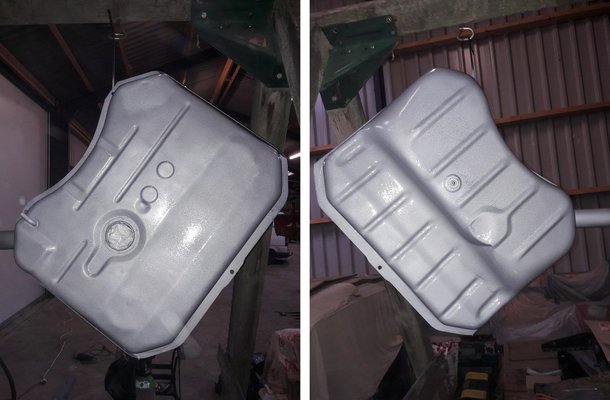

And the first layer of spraypaint is applied.
y4mhjs0R2DN02P_zI7QSnvgc5m1ld0acLBRL_rKYgm8rC4SI-pWbGCEbIB7z0UPooIYchz1N5Qp2zF7fD--xl8xf5ZTvcoG1rjFFgkvF7O079uMYycJcc7bxPZjtad605LT1090PQTdQq1HG6ZC9g_IHvKnNphFAGwm5PuIEwmhaO-Cd55zutCPNSDPLhnDIdvSl_gAWdpCarv_pKv7f8iKdA


y4m26MkPDWMvQHtUfokysDQSUjuZHmB3_7V5sOJsO-h7a9V2YZC3LM0k_ezvr61EC7jv0FZOeuKkxnE5AvaxjafWr5pAYZWfH35XPo1_sk_sxroWqhD-vxNdy23tW-VCwVCqAKw56nr3PqG-5iF8nZpr0vdliFXnqpmsmKkhgDsGKSCgdPT3zBoibtqOPRhahO0wAIIS7p6tgYXb0q-O80Hkw


The rear chassis is almost done.
What's left is a small modification on the ends of the outer beams that keeps away any future dirt pilling up on that particular part.
Now it's still open.
y4myu7zCfNUuCXdz1uOKYBA7l4kuIaA-nWfmWcjtMcN8BHCYOLencFiClmqU1CBHxMQ9qTj3kz3Pkm8mPQvuTdbqM9-5JcXiDvum4wPPCUonn4HTc3l6IxEZ-IAf6iXhGTDMFITharAE9pR4MIiofTXhqerDqyOCbGaSHqnghkkAsPRHZyArjHTW_rcWOMNgNv5XL8YmufnuuOasJEt2VCapw


A strip of sheet metal will be applied as shown below (photo by courtesy of Jurjen) and some holes will be drilled so that the Mike Sanders grease can reach the cavity at the end's inside.
y4mxbDCOkTbRVNKHCngI_0gaNf7mjcp2PefTBIlIY2Usb_AEW4YW2Ap6VDZmCfSoHN4pS5Ea6c_1Zcmzl80hR9N8CtZ069UNEhMWRhOOQVjVOMxVhhrRF6fGc4BArTvJ-MzGmtRbtS6kKUJlWe38B_4rZrtvWERHLNW-c5cJvUp3582wGCNVhtMFLl68VLbLJ9qqmGTTQGxwzNMc2_T5coKjw


That's it for it now, the first year of restoration has passed.
A lot has been done and it's still fun and rewarding this massive DIY project.
Keep it safe tonight when using fireworks :flame:
Cheers.

Last edited:
Top
