R4 GTL 1985 Restoration

Jurjenz

Enthusiast
Messages
456
Location
Groningen, Netherlands
Caught red handed, Bavaria kratjes! :drunk::laughing:

What an extensive job sofar. I didn't expect the chassis would be that rusted. Keep it going!


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands

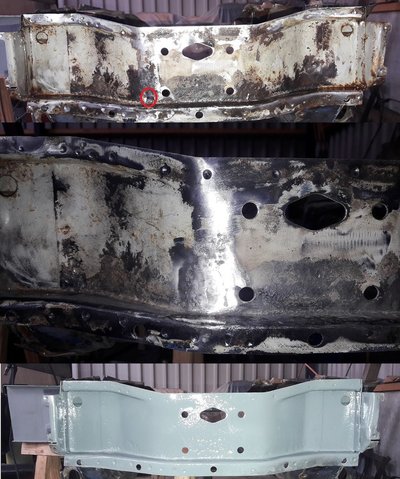

Meanwhile, still busy with restoring the front chassis beam, some NOS parts arrived.

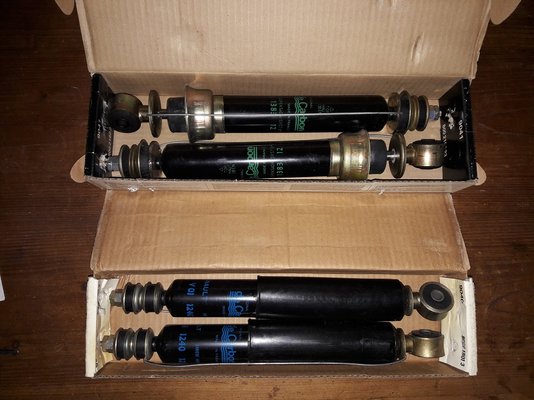

NOS De Carbon Performance front and rear dampers new in box in mint condition.
V01138312 (front) and V01124012 (rear)
y4moXEft9nh1HcoBZlYEm8tnh_4QOfSPzOFTRiRZ7AssA65s5Rj-cRuo_PIqndJ7yct2Xe4xZfY4uzy7Enj3rANljfqst2Vzp8YjyTugwOF2KMl4CJG1MFvDRNn9d12iLXH0zOsKQaZ-3V58TjoS-vOIF79zRqsQ96ibEZzWJJdLT08K_z9fMYLN_uvLbpUh76huheVkG9CRfueBEUTEZB2nw


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Front Left Chassis Beam repair part 2

Small update on the progress.
My restoration spot isn't heated so momentarily I'm freezing my *** of working on stone cold sheet metal in the farmer's shed :flame:

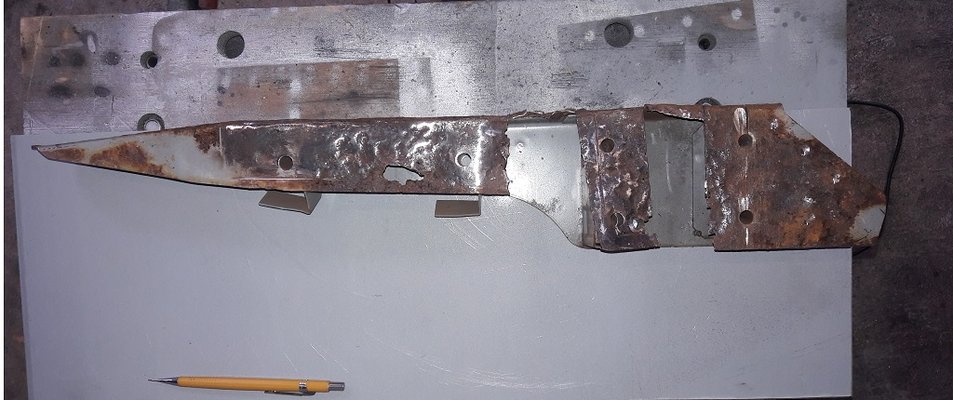

After brushing off the rust of the so called "Napoleon's hat" (aka the inner front cross member) I discovered a small hole (red circle), welded it and gave it a zinc treatment.
y4mcPIjVvEYjySQ7_1BvLT90HOoSEkzkSVEA05vKZYnP7Vy24N8J3DNLpUWnQCseYomX04U8Tymok2LK-2JXF8EodftBXrMu7fHmdpVyZmp8A0HfXkKZmWIBUNma6du9k9tfLYp8R3YUYSLEAGVAvp_TUNt0HZZVpguPIMRTArv-LxkZnf5VS4UUTSGsi1CLy6cRTFRcSbwGHziJJMz8zZ5xw

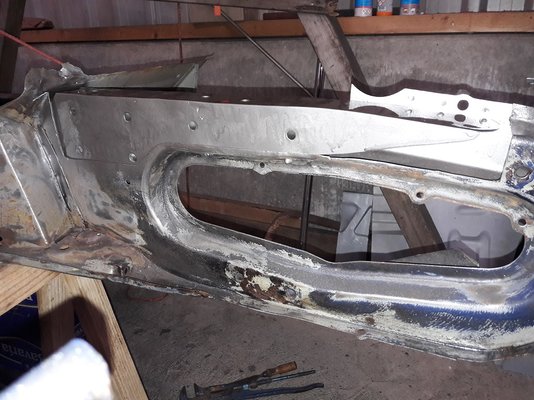

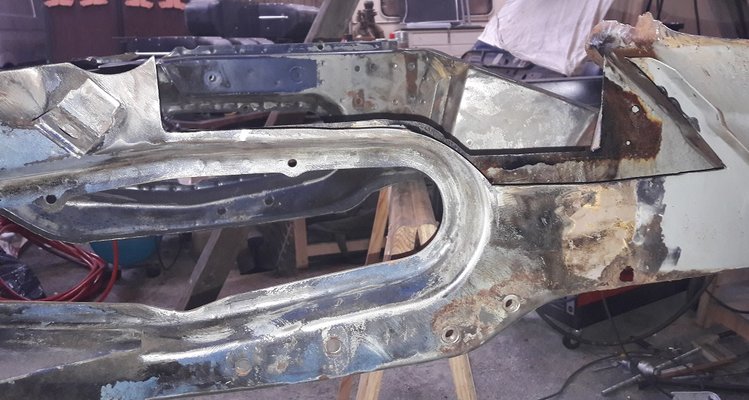

The front left chassis beam is roughly cleaned and prepared as seen here from the inside (engine bay)
y4mj2uqSuTL2Vkm0wlPxiyzQVDi8P-OyEeNR4iGf3LCDpxeJOvlc8tlRycNQxdbZYHkLSMcYAk06UJ23_K_0hUM206pfslVR38mEfUfj9x4RLmPdMmu44eNXynAnpCdCpPX8UvPmhY9mTwudB0RtFJlAYwQI-z2US1yTk4PdTI0LgRiOR9WkLvTkQuGjHVPJJygcjgbujl7UX1iksFEYRjKUg


And as seen from the outside in.
y4m8DLiaqp7EM27FWusHbPM6y9bZTP8FkLUFegXMB4gaChXJtI6_vIj9j2g-s-GEnDFm_Nm1exs2b5lbqaFS3Ra4ba0WwmHKStH61Mb73qa2PR7KPB2QG68N_N6PpGVRfXveekHMhOgGC3fSJuTqwBrJPeqQ-X8YKKyqD9emFL7O0dBPm4DmVcr3ZVgiWHMJR8s_JeXrhmwRuMalDHOnhD9rQ

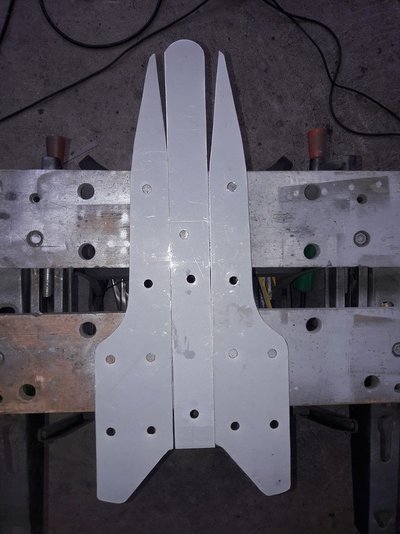

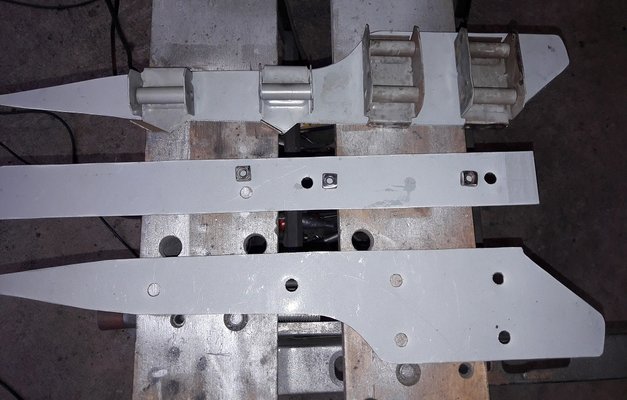

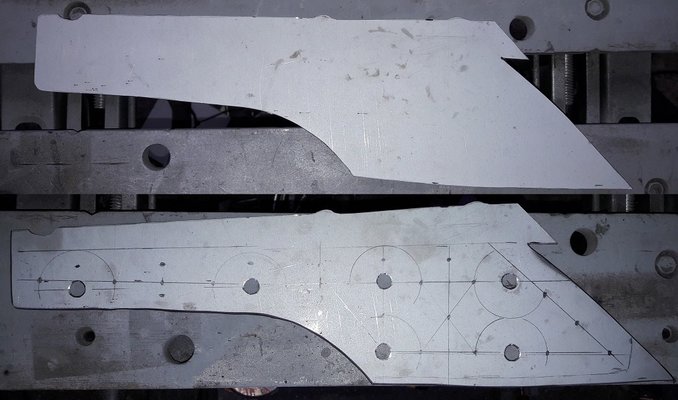

Starting on recreating the inner reinforcement piece, making lots of measurements and laying out the odd shape on a piece of 1mm sheet metal.
y4mlWdQPn42y_jYhJE9IZgglbvlHQqGV8ru6lj4xX9qT2nvZye9wJ1RL8hZcyIMRAx4Sbj58b92yp3Lo_B0tLROAq-INRTdDT8raNGL_ERo0l9DVhfCH63AKgUwl3ToW1_1ZGPgWGwMKMmjPJCrgnegoVMnv9o8ycJwfHBWjcDcGnt6IGMD4rPAmq0mgScdGTXSY-r7sOjNH2SZkib0TnNUxg

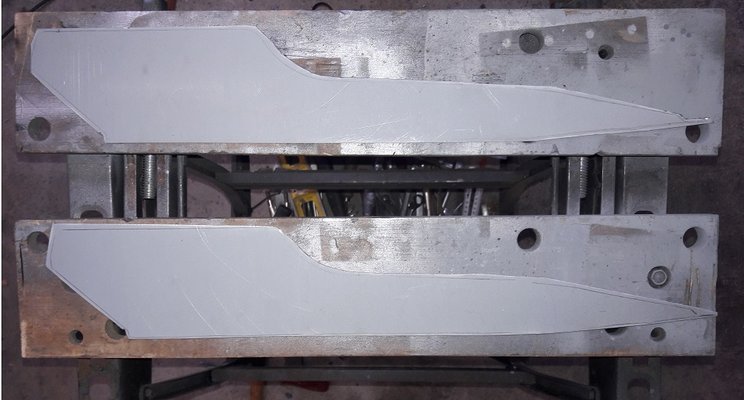

Cut some pieces.
y4mviwHP0uq0La-5z5_16XmkrPYj_8Yb_u-dtEP0ybFUvRsQ2w8LJiKoGrgRVWhzc6t98UwHaBUhG6Bo7EfFlZPox5rioNOKCcuC_mC_sUYKCKL5gEOSkuBnarmNYe4gRQulmAS3VAy4vkiK3pBe3AKyNJpK8zuzUlcSyIB3yXJkfyiT2zYqWSAea8sBC6tM5qFljQjCqVk0mA7DlpTG1FRBA


Grinding and drilling some holes. It's still an odd shape, never knew Renault did something with rocket science....
y4mrOvCPV4lWBtOXNoGpALwkeqqmyNvGoVekRGOSAoWSNCTo7ZU0VJrOKQZetbS5cJtkNhRr_pG64ZtgMhfFmEdXsWGq2cSxdBLvHj1gpp6PmiSjiSXBQjbdl5SyF5Iq3DNDTSZj5CfvW37JKjRxOziFv02Oz-2yym48_bDZPs_zaER964X30b-6IAHZWJrZl4KVH5VOBqPZ4ltJs3qU_mzKw

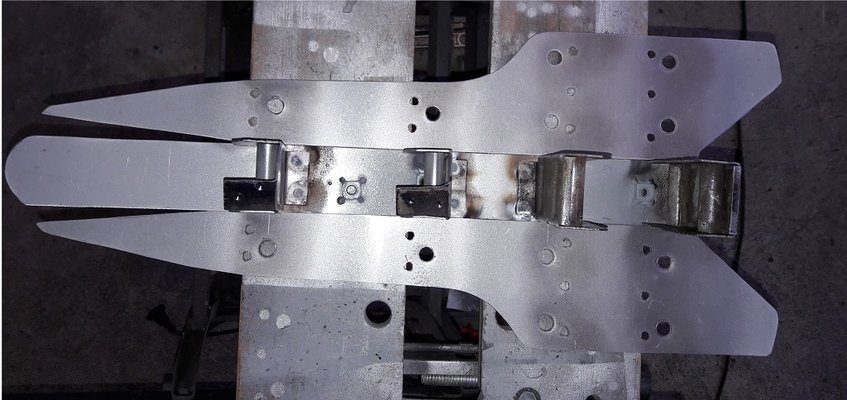

Laying out the various salvaged pieces like the nuts and anti compression parts.
y4mO6FfKTbH7qkW87_ae2c2A6Sx6cW7z9gZzPc85k57yvdZYHNNJAlKDpeTpjQxEaIUIJo4zR_3zTA1SmGxtJbwkal8bQ5VUCt1GO8ff3wnRplFzHnyuB21ck9UQS1--Utxm4NdNK3whQCfygePOasuGGj3v3f6yZzOuEOX82mHZI2NO_1Vr1eD8tBVqIcaqHAxPyWRvu7I3mzZHJO2g1dhyA

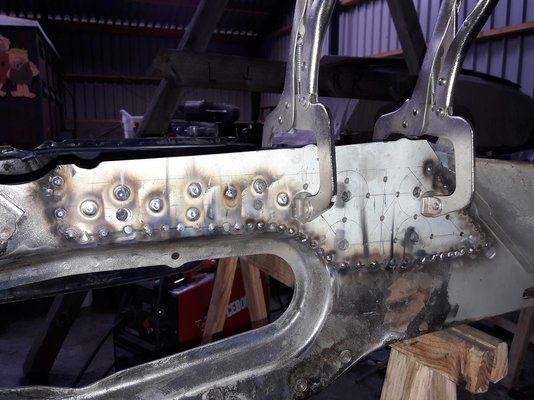

Drilled many holes for the plug welds and started welding.
y4mS3LdNEFRMgUIsSebLlrmAbNNaEOPAQVdUydNDQNTF2H_wpGhP1DcE_TyLqORxs-cld8zK5Lr848uj0A1Q_N1sQOH5Dv5UFrNFQfj670B5ygGUOo2KQiQgqi3Yt4FjBKAtwfJVbJMJ0wyJdsIe_kosaJM26XBIq1Xtur0U5oll2Foo--pU_bqfOiAE6rG2Y-HF511-Z9fhkHiWPXOPHdPwA


And here the inner reinforcement is almost done, the plug welds are done.
y4mIjfNoyCjiV80ml44qdgiUF-WaDEhoTMopi3SFUIywTx0YNNazESArXf2k4cKMdaT5iJSIVIq0p0UYvkNyD5jd0hRaOKzzog9ix041Q66YXsTKUJO594zMkUm3VDYNWoNxSOjndyBNGDEIIaOQFZihp9Rza9VXpRLZFkUFctaZa78rWndtQyf4ihUomyFcRCodtc8zSX6hOUkzOX0C74aIw


What's left are the seam welds on the top, grinding and plug welding the inner reinforcement piece on the front left chassis beam.
But that will be shown next time so bye for now :waving:


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Hi JdeW, can I ask you where you got the nos
De Carbon shocks from please?
Cheers Simon.
Hello Simon,
Of course you may ask. I found them at last on Ebay the front pair from France and the rear pair from Greece.
They are quite rare to find and it took me almost one and a half year to get my hands on the types of De Carbon Performance shocks I was looking for, not just on Ebay but several sites such as www.leboncoin.fr More frequent the used or second hand shocks are advertised.
My advice, be patient, do frequent searches and with a bit of luck you hit the jackpot.
Cheers Joop


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands

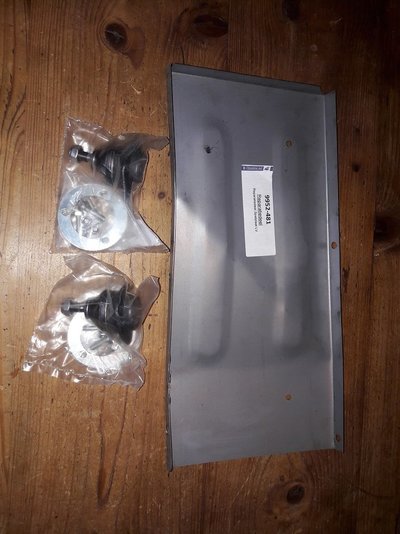

Finally the outside temperatures are rising so I can continue working on my Renault 4 GTL.

Again some parts are ordered and other ordered parts have arrived.
y4mMPo2w4sMnuPktnjS-3pswHPtDl64OtDXYcG-BKg-dZ82EQujxWAPVmwTxUhw39jxdfV3ChEHOQBqQZEAfEGlCxuquz831ueZn0oSpz66l5y_pnzgeEIlUG6rqdVifbn5fg66xCpBo0TmkR7szP7AXlRV8Fc_UW3DJlAtvyIUt1LjvVXD7y7hZxAatrtovW-g8Jq8ihcFAMMYXX_niCSUaw

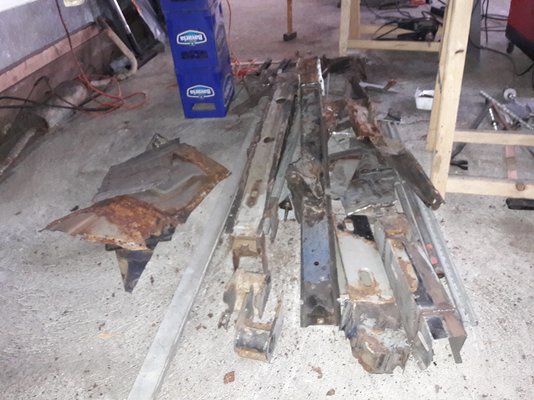

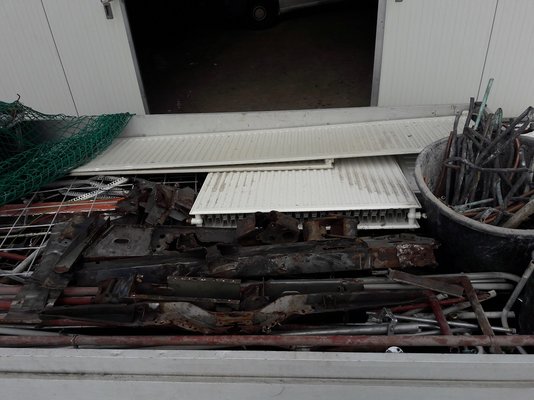

A pile of old rusty removed Renault scrap metal is pilling up underneath the chassis
y4mSNw8tGwe3cC05AT4kmoUmw_U5vSbXyk0a0Tjq-oI9J_xjziI7Y2uyHNgliCBE0rwH_CV1SU-MzTy6VUXoWsf3fPD7sOQshtrX8XSOlE4XVJQt6HOMJG4ZT-Mp5RuGDQ2rAGVJrnEw0KBey-6yDk8J8roloV5MIJcR3pragszcyyCyDEBVDMoNeNv6coJzfmIpJlbq5Pon3xwfie2QjENGA


Time to say goodbye to the old rustybits so the scrap heap is dumped on the farmers trailer .
y4m_73ci6OaaZTGtnkCTpPwnlIyQStp9KMj1JD3cme2jgcdJ7XjcXC7yCW5w_cjYfIyjhbWligNbU-iWLYG2MIaDrA0tivVTklRA9kV86XHgb4seItwpKK52ZNCa0jmzzZr55Xz6h92SHLan110hSZYkvuPa8mNvMVAJF7k_ZHHgjutSeUkd60YDbxfSq4GfCkBAIOmHxep6ztYoEaa8LvHgQ

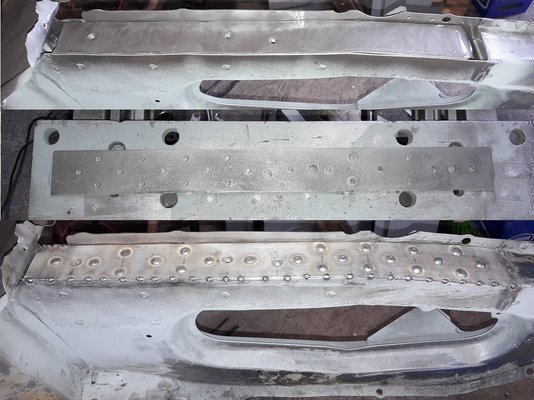

Continuing with spot and seam welding on the odd shaped inner piece of the front chassis beam.
y4mbCT_Vv_9GM0wljVkGMlH4qTM5cB--Qfn8g8yhEgPrKrb-0n-8ner5_4OmV2nqqDFYLXF_fJlL7EWjoS5RR4kL809t6tPLAafy18OhtQzPRMCZ3r4ztEXs2QPd9Eq9OuaenlkXws85EPAgF63qQb2d12eItEdudGAg-S8s4I5QfEAxgV20MdYE0Qrpoq4RJswM8I0EoSyo9Ai8qV0jiMQqQ


Grinding
y4mvYVqOvYLlXDxF6u68mTN5wSJCn7Is20PM019LTdU6LL6UNcyjaTT4IrhChW3WuRSr3Xgi7fss4NcI6rzLxveg4VbMCEN3xtplUfiwQ_zubYk-edARMMDHVhTvpmUxaeQDwhpLeZczouaY-k7l1byGElHPjK00oL8GCBfaMs14fworlocUgT8fNagohvvMi6KkVkMDyued7ZGi3jmmjIUlQ


And finishing it of a layer of zinc.
y4mBowIbBSAGiO3LM9cpw6EXLN2MpF945IZdoPqms0rBSp3h4Sv-uSYVEQP7OykNbDZQ1DMOSV1zp9YdEmlWBIWy_z99txzMF1NRpYASaUhTBOung9B4CgKb8LmxBfJ6GBP5ewUYZshajUYjVgdmoIB-RFDJXAnpXS4SHviBH3BBEwriBR91wZrK0d8RRsio-OeB6ppQ8MaNsPed1Xr9fLD0g


petak

Enthusiast
Messages
1,803
Location
Vodice, Croatia
I admire your craftsman abilities.

P.S. Petak is just forum name. Came from early days in forum world while i way driving R5 GTE. In Croatia R5 is called "petica" (5-five - croatian pet), and mighty ones (R5 GTT and GTE) are called "petaaak". Totally different from Klingon word P'tak (Star trek TV series);)

My real name is hard to pronounce. Hrvoje!


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
I admire your craftsman abilities.

P.S. Petak is just forum name. Came from early days in forum world while i way driving R5 GTE. In Croatia R5 is called "petica" (5-five - croatian pet), and mighty ones (R5 GTT and GTE) are called "petaaak". Totally different from Klingon word P'tak (Star trek TV series);)

My real name is hard to pronounce. Hrvoje!
Thank you Hrvoje, for the compliment, and petak is indeed easier to pronounce then your real name :D
I must admit when I first saw your forum name I thought it was and sounded as Klingon as I'm a Start Trek fan.:doh:
You made a good choice with petak named after the allmighty R5 GTT :clapping:
Any plans on a second project e.g. a R4 with R5 1400cc Alpine GR2 engine or even Alpine Turbo to give honour to your forum name? ;)
Greets, Joop


petak

Enthusiast
Messages
1,803
Location
Vodice, Croatia
I was asked many times if star wars is reason (also big fan of series)

Those were days when i was young and foolish, and GTE was easy and cheap to maintain and jet very reliable (comparing to GTT) what was crucial. I was at University in Zagreb and needed car that can drive me 300km without fear it will let me down somewhere on the road. Plus side was it was low and fast, and it was very nice car to drive.:whistle:

Now i am driving much slower and R4 is right measure for it. Now i enjoy in driving slowly and enjoying being on trip. Also i adore to be "different"

Second project (if it will ever happen) will be only R4F4 with rear bench and big rear slide glass on both sides and girafon roof. :D


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
I was asked many times if star wars is reason (also big fan of series)

Those were days when i was young and foolish, and GTE was easy and cheap to maintain and jet very reliable (comparing to GTT) what was crucial. I was at University in Zagreb and needed car that can drive me 300km without fear it will let me down somewhere on the road. Plus side was it was low and fast, and it was very nice car to drive.:whistle:

Now i am driving much slower and R4 is right measure for it. Now i enjoy in driving slowly and enjoying being on trip. Also i adore to be "different"

Second project (if it will ever happen) will be only R4F4 with rear bench and big rear slide glass on both sides and girafon roof. :D
Wow university study, so I must call you professor Petak :D I've only made it to an oldschool bachelor (in dutch engineer title abbreviation ing.) in process technology and nowadays I'm a professional craft beer brewer :drunk:
I started driving slow as my first car was a 1983 R4 GTL and nowadays I drive sportier with a 9th generation Honda Civic, here we have an expression " the older, the crazier" :D

And I agree with your choice of the R4F4 van, in my opinion the R4F4 is the first and original R4 van, has nicer round feminine curves everywhere ;) so the looks are better than the angular R4F6.

Last edited:

JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Front Left Chassis Beam repair part 3

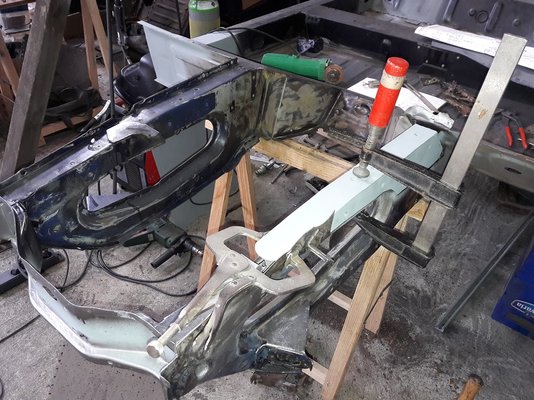

Continuing on where we left, the inner piece is ready and now we fit it in its cradle.

On the photo it looks "easy" but most of the time it was painstakingly measuring, fitting and alignment.
y4mcvWFpezIvoTvf1J_sseruzjsind1gPAXV5VvxOpfDZUl3i_pkFTG-jo_IY4RW6FUTYhm_m3hpXG1l2jHlrogbD0bxIUjoKjLxUtYp8q6Q3TGpSEe32v0-49pkxCfItXx7qpKMuXZp7XME4ox1-K4BoDohU3fbuQUPtWx1PkqmMP59lSkNRHH9cdgqc5-34VIOHrpcR1yJ3Cin7ElhMORTQ


Tacked it in position and applying a weld thru primer.
y4mg91IJWHJln3taBJmawu3iRcTdUQWwMaugw6rfZ1ZHBl88FhvOB797Ta27BPGakuqHzB2S7vU7NJ7uEQmXss6zzZ76uyC_TvWjEZg7ho8LfjlUwlPo9YOaJiefYpLd9kq0wTOpQt_QBproHmGjaJHOk8k-Zdpoo9U5s44IUeiFiQCZKYlA7xBmrU_9rNE7lEMfj9Exa2Z1JaETxvoCVsyPA

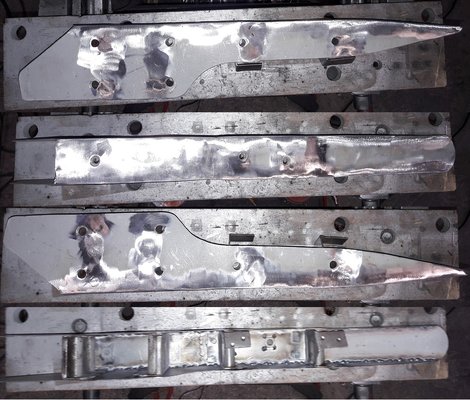

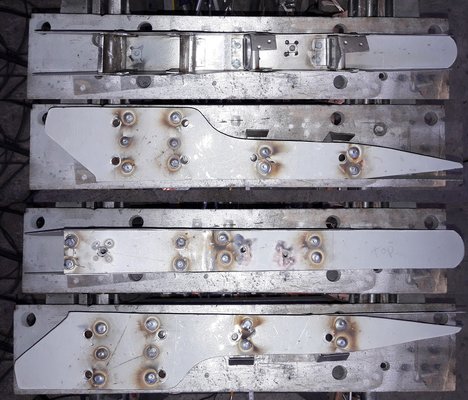

The inner piece was build using 1mm sheet metal, for the outside parts I'm using 1,5mm sheet metal.
My farmers shed is not as well equipped as Petak used press brake and folding machine, so I'm limited on creating each outer piece seperately and welding it piece after piece.

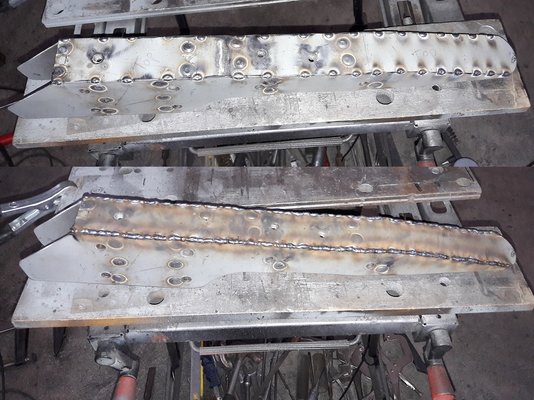

Let's start with the outside part on the outside.
y4mw2KR533b808mtm9Mmfzk8z0uzrXe7tA6nRnOyF9yYsqFWjuXCmcL7fifxxnidn_9ll3MW2RS5Ufl0ALnovaTZA9SN4SIMuG8YaDjZUbxb0Rrq16u-iLuMp8WovAHZ8vbwsaPgTSWrwhppwbjUoOd_lWLS6kMg_losAKmHcw0PyuBFoL9h7ugxEDaBN393bSrrDaL2eVi6SnR-8777RTnTQ


Tacked it and plug welding takes over.
y4mU7otVEe_OH7XWStL3rQRUrfUwgo1cfBQFlObtD215OmrYy-6aXuX3SUIYcHl570hEmbKFOP65iS9FJybBiSyxAbg64aBBwMDrwmp15dCqeNjn-KoeBLiGIlmtusW-vVYoh_w0tl5yn_bNV9zOMaeP0m91g2KIBSUXbX_DsCMvMtT01e939C_vhLbX0MA4OuGscbGYF_9WDbOivU3KbyZdw


The bottom section is still open due to the famous R4 rust so the last plug welding can still easily be performed.
y4mSz4y-FRCaAsTPPtU1JIw3La3OxN_mG9y3o798hhFgszYfB4P3jhulyv6vOqLyWzHndIk1WiuMNYBMM7kMB2EEbEtUpoOeDMMcySWFhj66BwSNFtXzD1I0xQ0FmHgsnsz7BE_icg8a4uzXtmrWa7awVn5M3xG8wx-ctvzzU9wY7H7J0N4Yn5QZ--rt9nOw4kVtOuALqx_8E5MgygLmNgcVA


Final and grinding, the seam will be welded on a later moment,
y4mqRvbKui8IEKTVpSLjvy5gYUM_hEYAwwlmfH_NWEbbVXwUHwhuwJFzagTp6KvuDyNVCarpRXhiOrY-tiAu-by3z85Vi1pyCsK_OF9TZjIVKyMkP-zEz_XHG4j38bYFJ-AxLfgxuQVu135lz0e8-wv-rqQb_eY4EOLRo4IbBPfud8-vbu_jERA3ScWKrAGmU3-Ij6RuWyQiKbQNM6ZDB1EbA


Time for the outside piece on the inner side.
y4mMr69ehiT1AwiA2p9coNOwDvk_x7zVAJ5-JbTX_896FnNDloXixnyzihytUDU6O-3a4GWMfJLyiUnRN6kc9DIKp4tYCzaztzzLjQU35sKTuunqHTM5f9ym9tpI3j1eNVrrY0uWxPIFHPXISnvBCfzXkxNT-cdORtmWtSFiZHfx3XEiMjOfrKa6-HyFzvmzPAqknT7PUztGpgAUnvo6Jf-_Q


The outside piece on the top is next.
y4mCwk_LY53GBUkaRIw0iIZq6XIY8i_skd1cc779aE88kIhtcywOmZaAsTlMFFy1bOVjFD29v3FiMtwkAhOn2ycm8gn0vX2GhplafvDCSUSqoFdYqWp_dam1wgyIFlnY2Zb9Q_SJ9ja4vedoIWyBBQvMy81mZmQQg-PxuBMXWvCP3bOI0ii6mAMYnJTGEG9KHCFMCkOfyHBee0_ILUudaMZsg


And finally a small strip to finish it off.
y4m3SGOn52OXswlS9d7BbqrRtOiCXLNI4A92UBe0We6Rnm9NbrRRBLCo_OJgzYHNfplN4VsO3R1JfVledub6mxkUDP9CyWjstJFlqcD_vVF3ETgs7OiCdfBilsUC1PS9DQ_KCBetVElMw_qHX3EeWaBRP7T9VYzd6KLPYvx_PpK-LWianBI0TFtAFyjoOubx70xE7Tkj7PWF4rVgCXWZZw4RQ

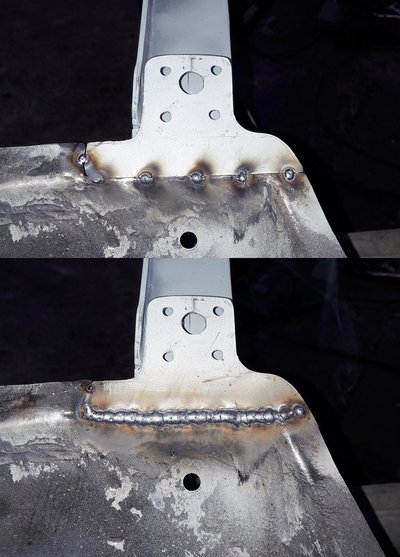

The seam on the outside is welded, grinded and zinced.
y4mKQEZ9IC0wUWnuYpt6p0fNqCnihTD2RbPiwjlgPbcftcS3Viyq7YcD2faL2HMeg7f7XjBLQHrIXyBL2lmJpUc3HefgceXKnwy0qR_LHO3KLi_kjN0mVXQ6yU4w4sGAWDO9YSjZVhxdNgUVodjhWL6-eMAoPtksB-qk-moejl0Pceya82nSts1kmJzmPaCZh2Zn8gnF_zfo4naHRx06S_R2g


Unfortunately, as we speak winter has returned and the temperature is awful to work.
But fortunately, I keep you also busy in this way, on what's next.

Cheers, Joop


petak

Enthusiast
Messages
1,803
Location
Vodice, Croatia
Jdew.....this is even better than modern press for bending i have used (and payed :whistle:)
I really appreciate how people are making their way to do the job without big and modern tools..

I can hide behind some project here mostly because lack of courage to take welding machine to my hands and start welding.....

Keep up and bring us those pictures.....


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Jdew.....this is even better than modern press for bending i have used (and payed :whistle:)
I really appreciate how people are making their way to do the job without big and modern tools..

I can hide behind some project here mostly because lack of courage to take welding machine to my hands and start welding.....

Keep up and bring us those pictures.....
Thank you Petak,
I like machinery and you made your own rear chassis beams and that is also impressive :clapping: for as I had to buy new aftermarket both rear chassis beams £££
The left front chassis beam (that odd looking curved shaped one) I choose to rebuild the rusted pieces.
It is for sale as well, aftermarket it is, but that is a bit too expensive as my monthly budget is limited.

And maybe you find your courage on MIG (TIG) welding on project number 2 :D

Cheers, Joop

Last edited:

JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Front Left Chassis Beam repair part 4

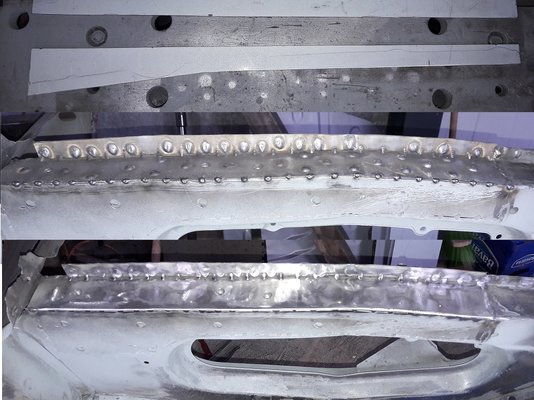

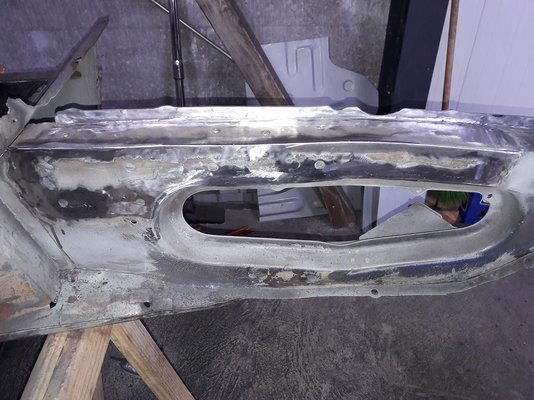

Further with rebuilding the top of the left front chassis beam.

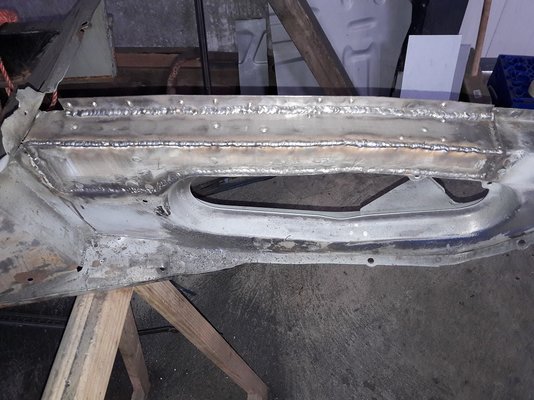

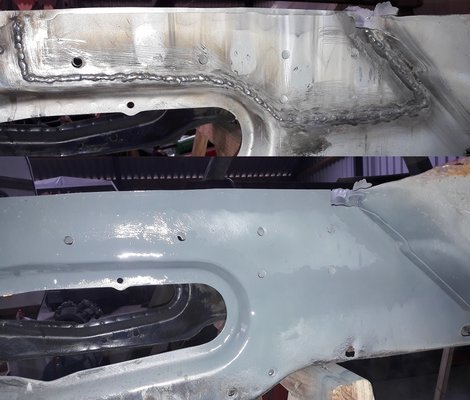

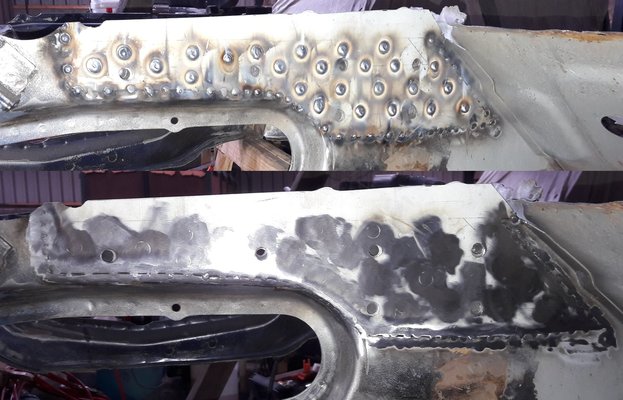

Welding all the seams on the inside
y4mktLwUG9MLNaGzciBDxf7jaaXzifavW5JyGMWqmFjSY3klLAGqVoTEBC9T7D-PcJWClvOJPgkGmNejPWBkZr1JRzF7Qa3xU4NrnjLGyDuMWWci33NBhCmZCW8noPnUeLKuSAHH_9-dEzPW0dO2QXnQRAVFkpZ20c8lRXD4ej1wX-FVOCTGOWjlFDV1GHo58S8m_YxuMSjzYppvdhuhr9r3w


Grinding and profiling the strip
y4mhFyxHS-US5JCpAgctC2Jk3nicfB5Be-sTd3UmDwvEuINOXF_5pgsnX0ddONDymfHxA1gLAEucaiEytNCqAjAgdspqCb8Ko8xqiHs1EzFECff1HHUAVdYO_BBAZgk6A_nFteEPA7rHKHmd5l9yAYC03gJkp3M1pq8P9xPFvpZHe9qT3Ud2_K5FiTyp5zdyINRF9N6QjLWdBE-OA-3HKAfPA


Welding back the support of the steering rack
y4mbwBJcBjE4aYZFQ9ER19cHTnehJH8rcKyh88GPzcL-rTg3VuUGD6cthcaB6jA30yNV7oJqXeENceDr7Y9x83iOLPfS81-7FIq86EkZ776x1FB_fJvAj0aMDUgpzpZHw4JnL6UqyPeTV8lpRrCYbEKNyVHyAMxJXrpkiUqbirLKxGsYN-Kc56Ro5GMa0UykxNmZl8N-ezo8F7vg-kcDH5oCw

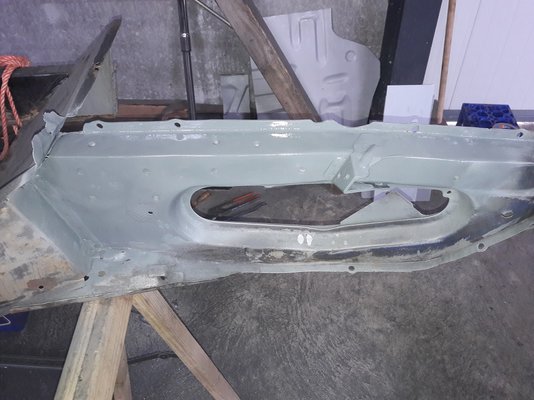

And you all know what comes after welding
y4m9QoA0-uIUqmKwK1cD4ugkGSjLzAdar65etJaHg7AZCUXm6w3JGbl-AlMI2jISgs80_S3iuDsJ9p-bx8-GORde8J6R-YaO_GbdIRx2SS52cp8Re2_Nqxv-XL01J37BKbD0LWP6TNhDYLddKAQsGGa2Hvc4zuNVDTK1cbGchWXw1QltCbzQ0RwoY6TkEge0YWcRI6brFi8dLcZsQN9in-I9Q

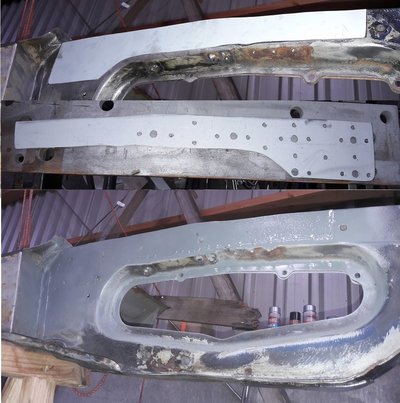

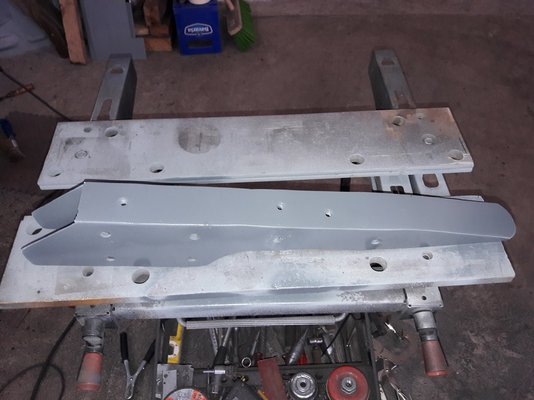

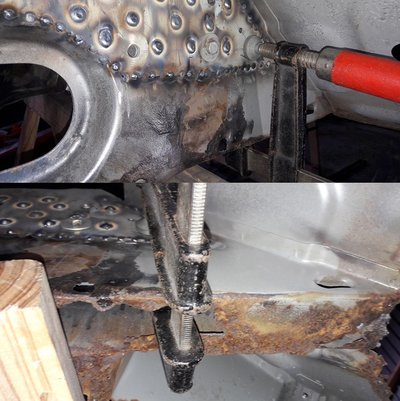

The old overlap piece was rusted away so I crafted a new piece, followed by tack and seam welding
y4mVoWODlngIADkOZ_XFBSV1BdvnvooufACVMuFMQeeF95JSoMxZ7ZMHvQOdc0CdrQ8Mow72IdvjNN8r1LHOIeJIv1aTO4yHGP39bmZ4r5P_8snHFPeO2oKnIjehy8BgrJpF34AuuWqIZxB1J4u9FbyK3mAAJMV2U5Eq5avLCTrczvRDpwAniyBKSXmX4o6RGjL4TWdlnM8JzjAZNx8ZjIkkg


After a bit of hammering to get the piece in the right shape I plug welded to the top of the beam
y4m7sp6tbhBTyf-3_zvpEo1P1wV8SZc2gBxtGvgEzNe6HeIpSRHAIzbcQt8qCGza8rzZk77Sd9YHAW6kDb0uRduGHgchEd-wByWOUfGQT9rpeUCWVpvdgpx0uKzDrh4hYiTEG3BgrnTg7MRHhRFogmGZ0yz8KfyG0o0FvKEAKer0faswojEHGroMZOACAoNCO-nuQsaXB9F8GqZw0dWL2uZcg


And after finishing up this repair and cleaning the workspace I called it a day.

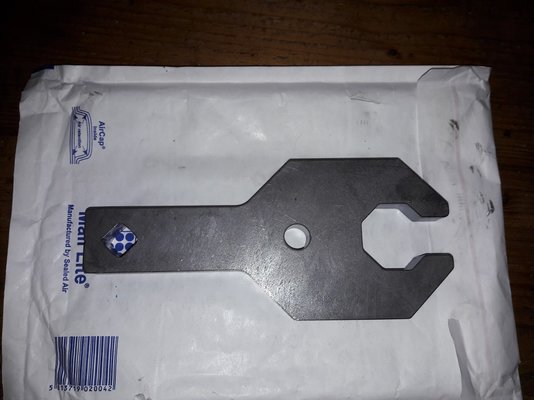

I got home and in the mail an ordered item arrived which I bought from Leboncoin.
Now I can build myself "The Tool".
y4me1q_xRUp0CJHAyEzStNrgda37v3BCbNYdAJYuXw81sm82B00GDj8bjl20x71Tu_MJJZYVNa4SRyWnJWSrCuzx6KQjO9BuEmEh5A3JE3YDvcXzObtkfmBfhvjFdYBFG9e57TaPHqdtHyXzBffPojQ6RAwrvelmlTx8IA1s_JjxBn5X0DlaytNhgUxgDgPasiaHw405UVJhs0kqUiDlVJ0pg


Of course I could have asked Petak for borrowing "The Tool" he used, but Croatia is quite a distance :D

Next job is rebuilding the front left corner of the lateral beam, welding the new splash plate in place, flipping the chassis, start replacing the rusted steel on the bottom section of the left front chassis beam, replacing more rusted parts and then closing the floor with the repair panels :whistle:

It's beer time :drunk: Bye for now :waving:
Cheers, Joop


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Quite some nice sheet-metal fabricating there Joop! -Reid.
Thanks Reid, some home brew parts are straight forward but the top front chassis beam was time consuming.
But the end of the chassis repairs are in sight :welder:
Regards, Joop


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
You could come by and borrow tool.....beer is in fridge :whistle:
Some day I will drive by Hrvoje.... and borrow your beer :D
And by the way I'm very familiar with the Baltic regions...


JdeW

Enthusiast
Messages
727
Location
Laarbeek The Netherlands
Happy Easter everybody and still a small update.
The youngest son did a great job on restoring the steering rack so hereby the photo's

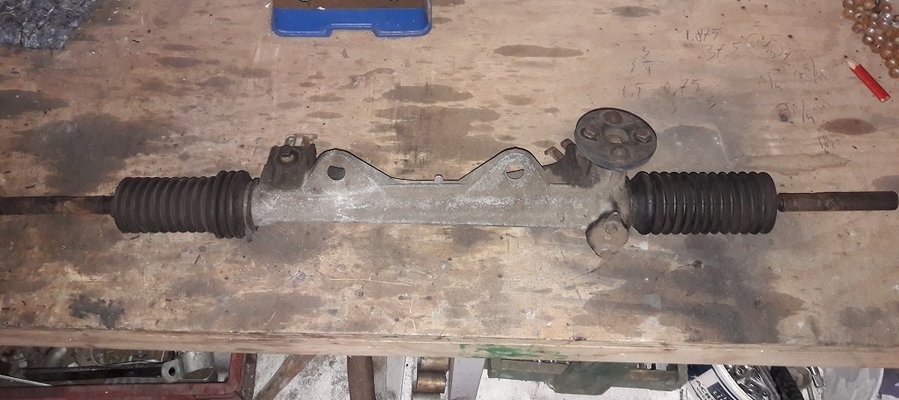

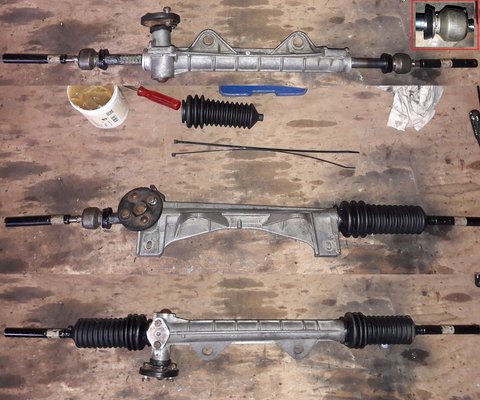

The old original model 2 steering rack.
y4mrpzCcIddbBKjpAwF-TYklmdsHIz7107m0N2Jpvg2Lfgf1QOtEZ6OhnoAzfdbBa2zdGWmgn6Pr7F60uwjvIAbvYb8Inqk8rV7YXxNKY2cy4VFvGIZhVmxLmsMyHqdOpx746hKODslXzZIaRk2dSwCPCLsjPHPL_3VqPirXNE9-N-5dS3gEfaf1Kp8euS4vipZxgYcvmQOEV1BLCta_s5vfA

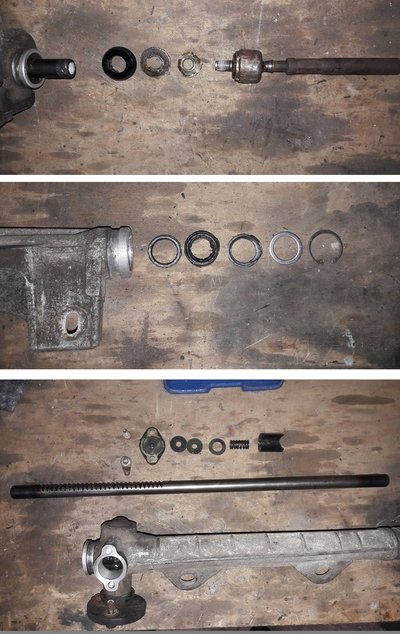

Dismantling is always fun.
y4mymEhRSCPtpHEV6X2aD_pLp8nGhHi7sEESYND2y_wijxnrEYDK_nBJ0oGzz9oNS2JHWvDIaxWxnyPt7IF-j9du2ZxLXJbC1PBUjJEK2KA_4_ooFmI-af9JzIX_0fLrGdfTGXF9AxheAcje7MoF7IG7xeEq0tESCTf6eXqcHrjF4JIqUj9yekup5WCSMKY7z5GIvcecoRKSNI_VOFofnH4Kg

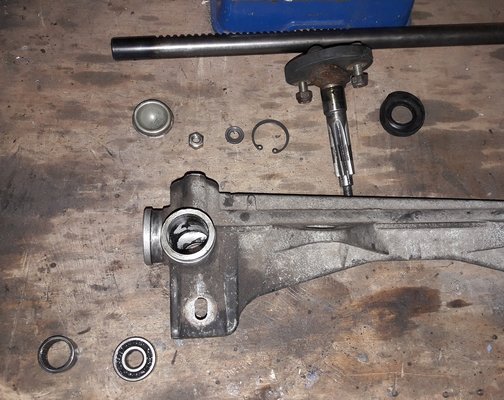

One of the inner ball joints disassembled.
y4mh5T7ETqky_0RSdaZ8M-slSZpUAHH2XbahTrcgitWmabdczMvLQHrEtioW5UJdw3QpVk0pZjJm_r-sE00ZPSRYgpGG6F-NHe21U3xNqkfBcY8oL410NIYbY_vlqfmavCmRe17xMo6nF3FYJkRbNsh7orNwK89Y47q0MDUzoX0TnsiG6vNHI9NkyaFutGiqqi57k0JLRkTy_1TNoB21Il3XA


The silent support bushes taken apart, the whole set will be replaced.
y4moQ8cv4eQLlfDq3mm897YIMSN3BuMEJM1eDUE8cU_Iamw4zhv-w2aPSvMUesXo_-Ys2kUM4pnqEQel-kPkYvbd1GSBtKOSqPJRyN9skKX0OrMCl4ObFMxprDUeTlzewY4WMbslnoXp3wMYO88MVPauIwE_5--PrmQjixc8rSQI3KKB_jNqi-Uk5eqwIp-JuZvmkBR8IQf4olski100VSZ2Q


The house with plunger assembly taken apart.
y4mTQf1AAWJbMphGcFq-gZA0arypitXFirtFHKFglGXjLWtZKOtgC-0yOmDB2uokqBbvlYKz0uqaFkvXtqJoZoLPgPv78p7swOoDetuxBNf-Uim9LNZiqcKCheGXpMBLDUeTX8KV4yPDPcCWaW8h5YZmPNwpq_sM0KQxbyt4iAq0iyMSoV5EzdQJVy0sDw9wEdTEKf00c1yG_1Nj4dYph4dyg


And disassembling the last parts.
y4mrjVAGPGi6NoplDcBV8bwLwdz3JxypE28LNOF6y3sY2hY9itLuKdxN1MHDHPhvt1Z68FZVMfbnNEPQqzimRsdAfgBkxnp9RppjlYsaqg0cFhxDQb-Yzhz09xN7yeyUAOqJoerTtzP3forOO-afVy0N24S-pvGmSGuotiMMQKbNFhhx89moha6i1SpWNkoIS69JgoSelMtlZxWedByBWeElg


y4mFS1HFZY4s0Pv8T4Y50SF4KAwXY2JnFctOiZP6RpiLDXCj6KFU8_jl1BZp6wgWmaPGT9wKQXlHjT_w-3BUGdAGACTzo8CvzpPy1E94ztKl2ti2pPUnoi9vZ3WwbiswOY-f1b84PJ1cekFHXjyROkK9OQeY5LeRNwFPfzKdPS_nq-AxjtWp3cEgFwctYf3abmk_9WQjl9YQamd2CAwg2auIg

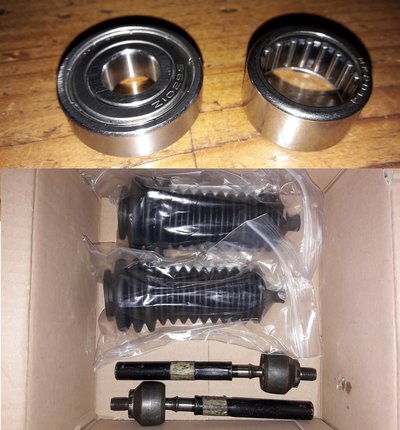

Some of the new parts, the open ball bearing (12x32x10) is replaced by a closed one type SS-6201-ZZ, the needle bearing (20x26x14) is type HK2014.
y4mu_1biW0rtm5zmF3CkdiaXK5JtECfhthYCbYq5ZEMRmWDTxj2i02ARVBBz5HGlgKLH1UcHYcMtQUUpFu0uJNM0ihKFxNhVk5sT_4QHnuq5MrL78tGsRKcpo6e-CjGfNjnTW1SliGi0iu3LAZjuAIkyEhQFVVzWDVgmz5Azzatm1x8zitxJK8l80sGH8lJOkJLBJOO8IDuauYHh-DUJsR4_w


Cleaning and brushing the aluminum housing.
y4moW1UQhXY9Tk5J0KTZO_30Mm8V7l3S3tk_QiQNw3jZa_LgJb2x5ZAAkVYE7doPsN6TcOaFJybJqmyj9bZfjIq6eRb5DJ0bpXysi6L7gPvWzGlQ1Y-PlsEADdTfkTa0R4vMXTA7TmlURWDwodBmtB3fZ2YfCWOsZVbDwfBOoaL01kW3mSxqksAnJXwU5SowkokGVUHfE711TQ3ce2D4HWRNA


y4mYLBGBVepp_lAO2Nqh3yGhkjIu18YbF3YBrvJ-yDE5TN2fQAzJ0G3bJMEnbOOLtGUY-mYxmqqqqUp1mOUetbUmrtSVSGGM-RgZq5BP0rnMwo2dnZzrpQ6CzYsH7sSXJnzNke3XA3cu3eyLDufhfRHtEh-eB-aP2qjNgsz5K6zwOpp3omsCczj8GQe1KtJwyCs2gMDqs1Az_8mP9RQkQyvKA

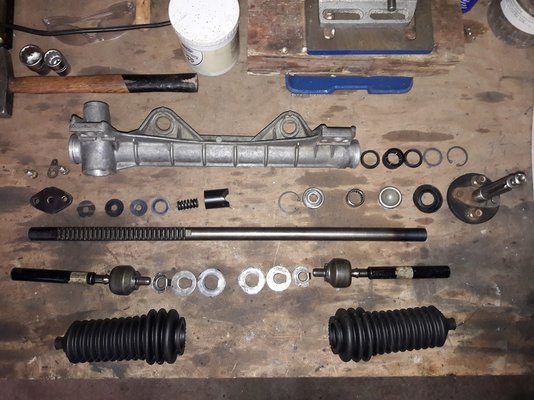

An overview of all the parts, time to reassemble.
y4m5jh3qxnBndrmtcYxcnIzDmWFxzxp-oXpNxdK-4wClvls5gcfz0KxuvKyO6QcywkNl82K2k-IWrwYz-AujLY-Qy4Ns84F__JeLRgArmLgMBkmdyD_7XI_2kcRE0qj7E3UNMVQykgQ8HOirJTH8R1-h6TnJH5xiQzy0Dqf7qSCDNLCNU_FoTpLtjqASpl16Y8e1vKW6tPBWFTIq2u8_mgedQ

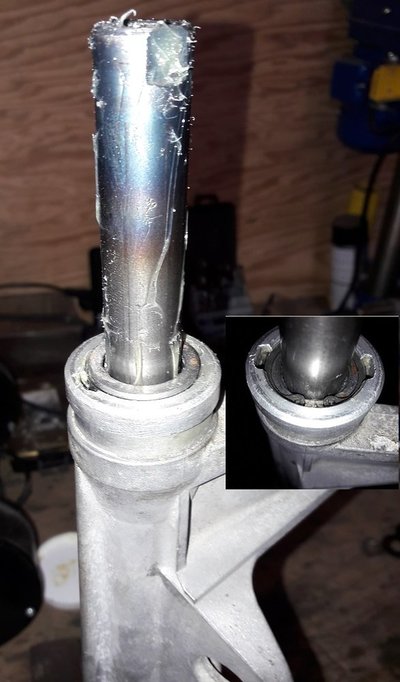

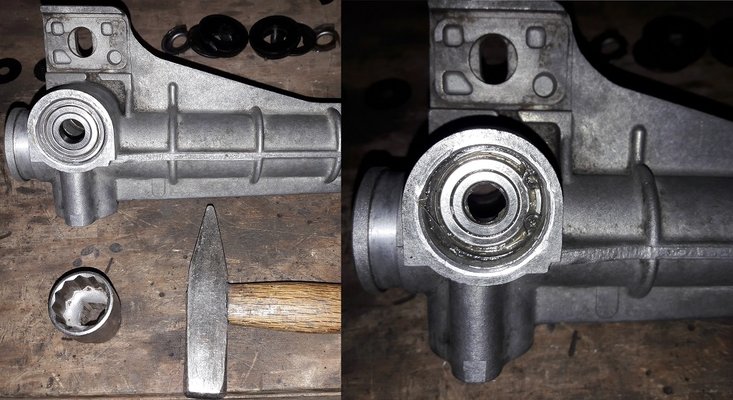

Tapping the bearings in place and securing the large one with a circlip.
y4m8X9HeUrW08NEyhgDbH9Ka_Sv9wZNfeAiLpt-3NGS2bLeJnK3KuRJxwGSytr8-zqQnQ4Q0PIQvT4LYWBrvgT68PJzG-_7hlZIpncQVYNJG229_1GQVIYayZ4yn6DQnP6PkO3KeoFvIdL-ectk-Hh6gF4n20bmkVs1vprTDKjnmFGnRvfx8IEZcbkMPJ5gWqsUTDpnhGBgYHfbaBRRUDyuOg


And don't be greedy on that grease.
y4mJLJDbBbCFYqShQGltqjRJFj29wj6XK0Ztajyj1gDNcz_vZll--JahzaOHz5DeZj2hmdY-6nMHw3RbCCUj8kJYIN5-bvPSz8PYMjSaQJr1qrEtjGEF1ZJpaSM24YPQYzz-kcmQZPtJRPbtm4aDQoplbp4qaZMbf0NUjLVpdRLRZ91532AytdTdOUPWeXcbVd6GJo_JeAF5UEYc85ig0AASg


y4mVFAB5O6oRetL5jaUUiQnZUPiLRLc_EDR2oHI9ocY0oEbM6p0_qEXINPKEMpA8Yx00H_c34vX8CXUvkXrR73BghrJFJtQS8fxgC-56T2wrFzYHQpRd1Xs1FO_Y8TnZfESQ_Nhk0zwZFgDnpnlbbjlnkz9MSWkkcOY0biKwAZEFK-XwXDPMHFl9ewAMLemb9UHwROZvZRJD6HCjlo8HzydLA


The silent support bushes replaced and circlip secured.
y4mTDjrLyuYAe-0-67VXxPc5GQ3FGevzGwQg2nbY8uVL5Jq3PXdSkBCBqLOW7UGAioF7jN63fXXFV9Z0hiNWoA6lg2tHw1wtL2UItNQ5E_eu6WMNePv8wTBzGaR5FUmQvIMtATD3QAMAKtyehlM5QPq-FO9BH1iYap8jwindPjTynwzGXPza-QcUsNBctBbiiKCbWWbW74S4o-qZdsBkKnksg


And finalising the steering rack, rebuild completed.
y4m_dgLwdZrj8NXcPReDF92dNSGlmvT6EbRX3WrKeakrUgkRb97TOdizQKWH0KJve0Gh-vqMRSGNAhwVa2oJDu4lZrrKrSVMaD9GK6ao86FznHi1y4SCZ970XSJk8j_S2GxnDiURZtu5HjKZHNyH82dOfFs8VIgspCuMPn2n7WcQuX4AVjA8SiXneW1dtfHmqQkGZmpadgwcOQsyDkQ7j0n2g


Cheers :waving:

Last edited:
Top
