I noticed you installed your wrapped "spaghetti" manifold.
Question; Why a 4-1 instead of a 4-2-1?
This manifold was available for little money. so I went for this one. Its new old stock. Doesn’t look that it was ever used.
The new ones from Mecaparts cost about €300,- This one only €100,-


JdeW

Enthusiast
Messages
695
Location
Laarbeek The Netherlands
Okay, your R4 fanaticism already costs a shitload of money anyway :D
I've only seen 4-1 systems for a R4.
I understand that a 4-1 system is for high refs and thus performance and race purposes as the 4-2-1 system for low and mid range refs thus road performance. I've allready done my calculus on a stainless 4-2-1 as I've not yet seen a 4-2-1 on the market.
Any experience yet with your 4-1?


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
And some more work done.

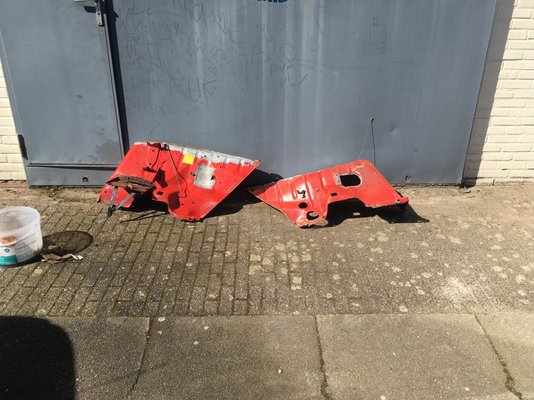

Cleaning off about 35 years of grime, grease and other stuff that doesn’t belong on the inner wings.
By absence of a powerwasher. I’ve done it all by manual labor with a good good detergent, a dish brush and a scratchpad.


Leonardo.IT

Enthusiast
Messages
238
Location
Tuscany (Italy)
Okay, your R4 fanaticism already costs a shitload of money anyway :D
I've only seen 4-1 systems for a R4.
I understand that a 4-1 system is for high refs and thus performance and race purposes as the 4-2-1 system for low and mid range refs thus road performance. I've allready done my calculus on a stainless 4-2-1 as I've not yet seen a 4-2-1 on the market.
Any experience yet with your 4-1?

It is correct, usually 4-2-1 are more suited for a road use, but it's not the only thing that improve low revs torque instead of pure power.
Also the length and the diameter of the pipes are important.

I'm trying to design a 4-2-1 system as I work for a company that produces pipe bender and I do hope to find a way to fit a good one under the bonnet, but it's not easy, especially for LHD cars there isn't plenty of room to do a proper good designed manifold


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
And a little progress.

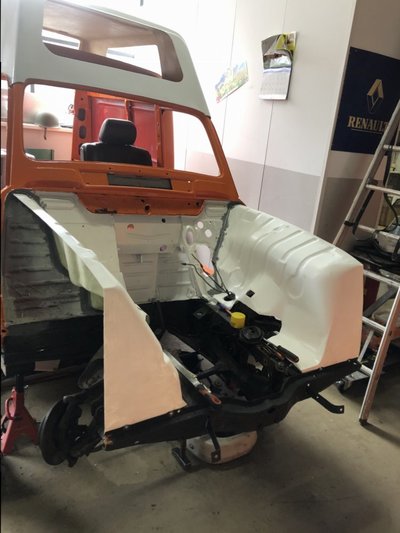

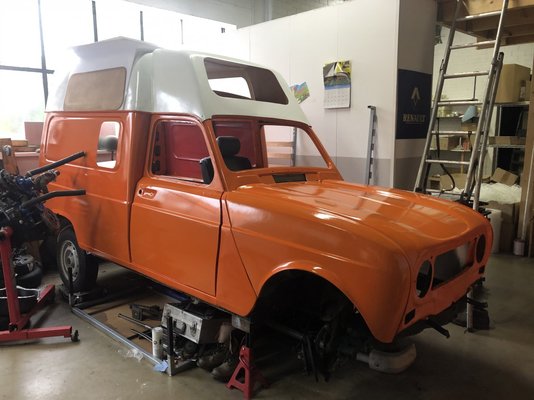

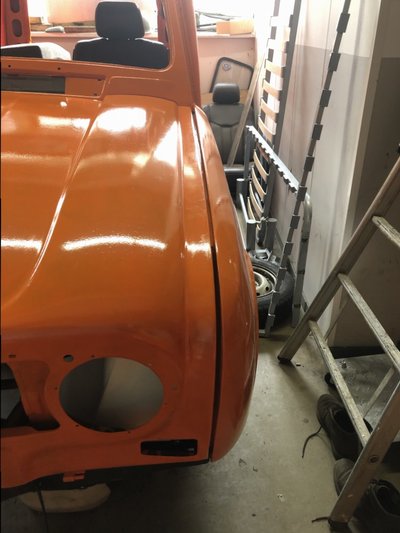

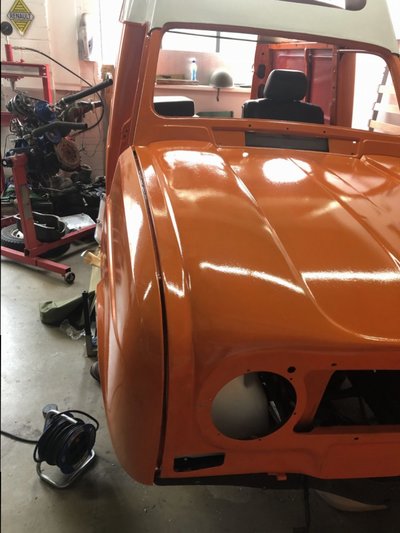

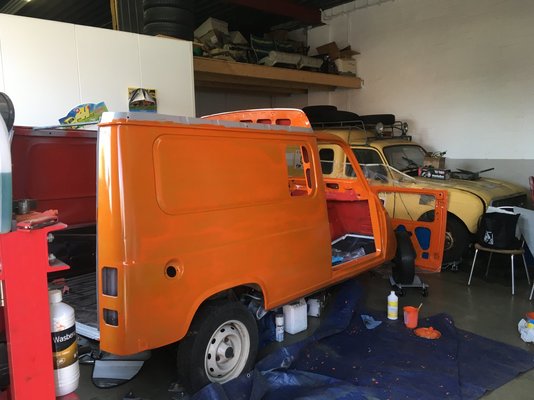

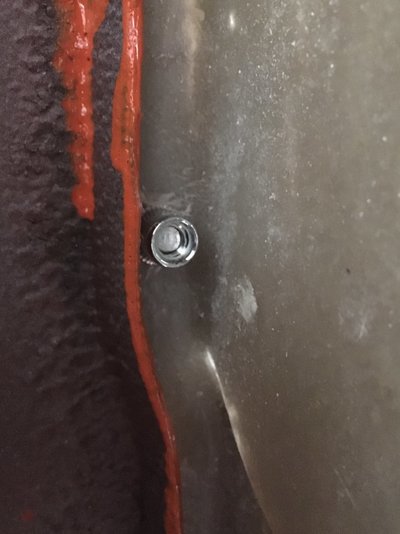

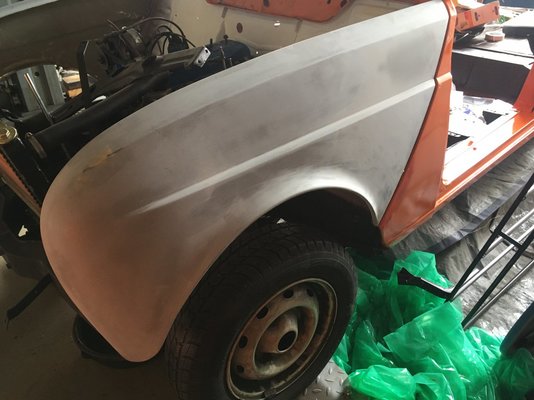

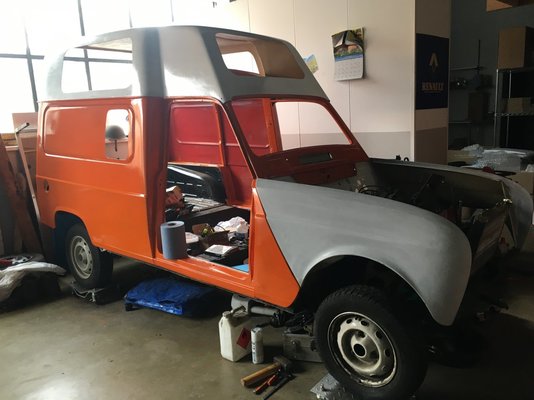

Fitted and tweaked two polyester front wings. Instead of the French nut plates I used M6 rivetnuts to attach them to the body and chassis. And I put the white painted roof on for final fitting. D6B3D968-8935-40F1-AA2B-11AD7B40625D.jpegCE9DE880-426A-40E2-BAF4-210966BE3D29.jpeg12F4F874-2AC1-42A7-8AC8-025B83CC8A75.jpeg


petak

Enthusiast
Messages
1,728
Location
Vodice, Croatia
Did you made those polyester wings or bought them somewhere?

Where and how much did you payed them if you bought them?


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

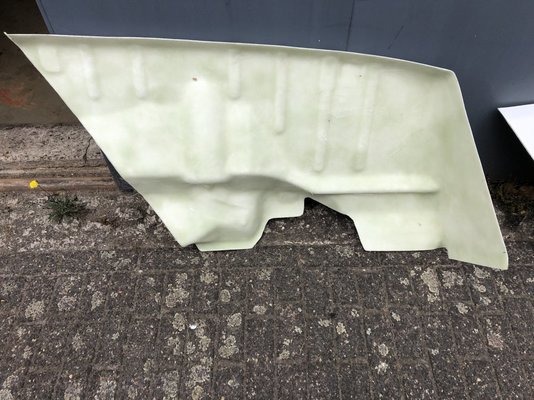

A Slovenian friend gave them to me. He had them in his possession for some time. He thinks that he got them from the Mlinar brothers many moons ago.
I know that Vincent Tournier makes them as well. If you have Facebook you can find him there.


petak

Enthusiast
Messages
1,728
Location
Vodice, Croatia
They are looking so nice.....

Are the hard as metal one?
How tick are they?
How hard is to bend them when you twist them? Comparing to metal one.

It is easier to make mold for inner wings than outer wings.


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
Finally I found some time to work on the vagabond.

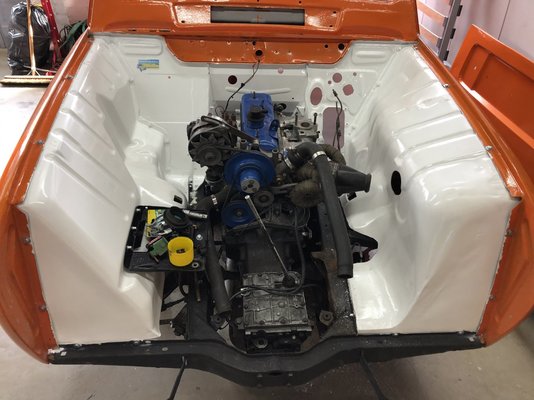

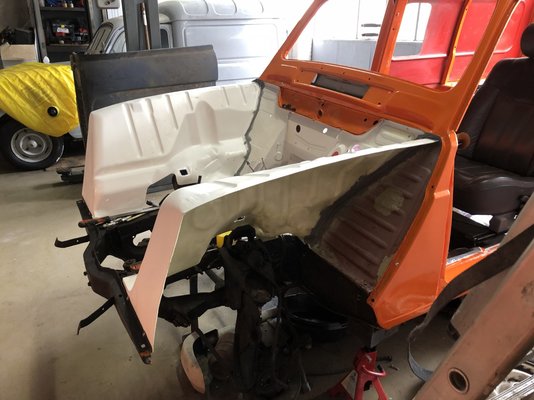

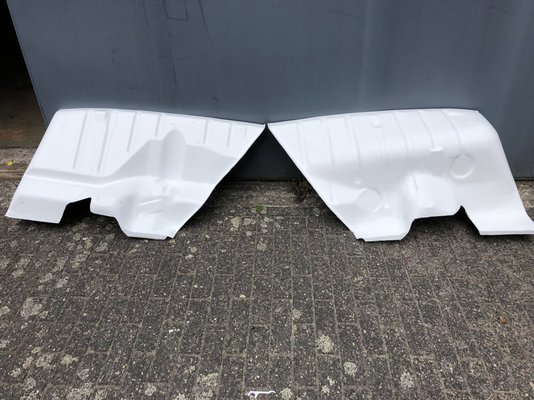

I installed both the new inner wings.
And yes Hrvoje they are just as strong as the steel version. Once installed these polyester wings feel quite rigid.

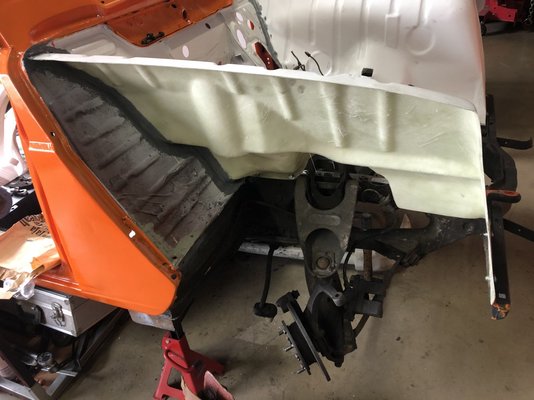

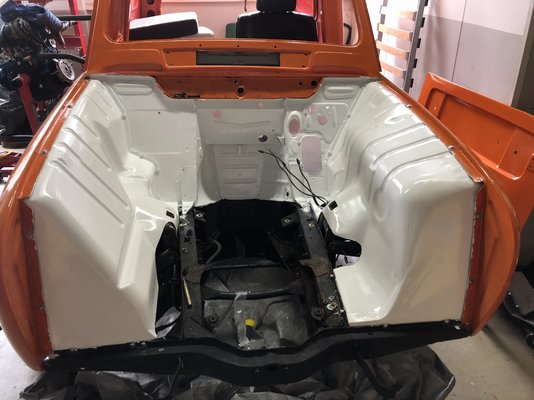

I had to open up some holes over the shocks and for the brake lines. And drill holes to fix the wings to the chassis and the body. 79AF00F5-A048-489D-BEDA-2286ADAF9340.jpegB943C5C4-4657-47E0-AC4D-896863324F1C.jpeg68720D31-61DB-40A9-9D21-E465E4B67F86.jpeg


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

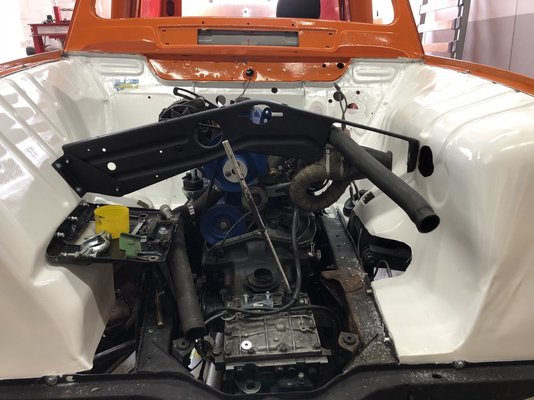

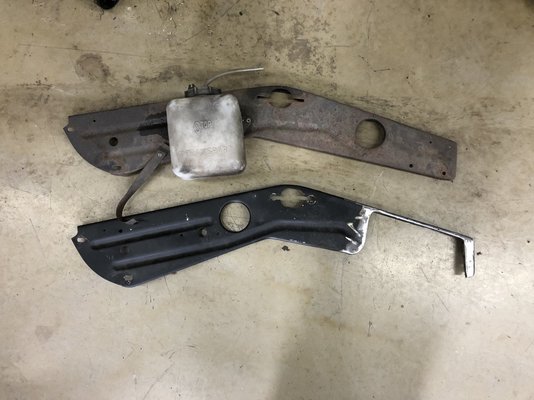

I worked on the upper traverse today.
Had to take a big chunk out to make it clear the spaghetti manifold.

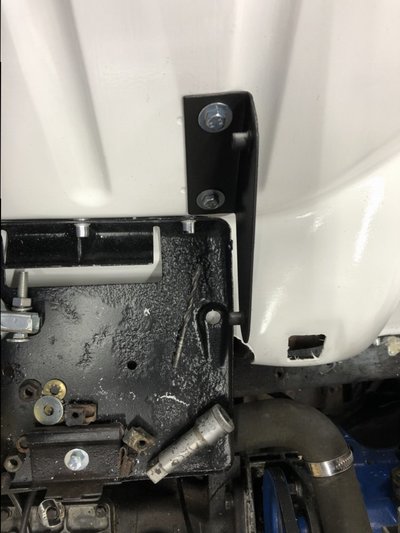

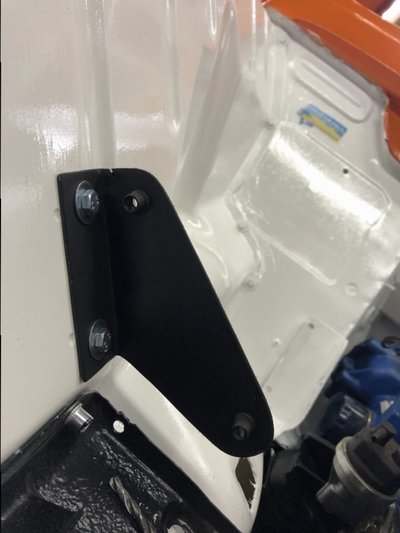

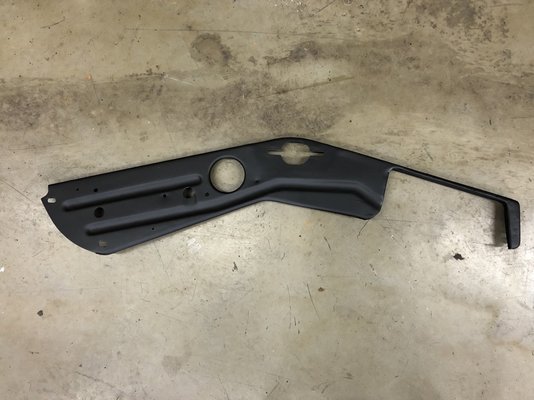

I also had to fabricate the bracket that holds the the upper traverse to the right side inner wing.
A nice enough job with a piece of 1,5mm sheat metal.

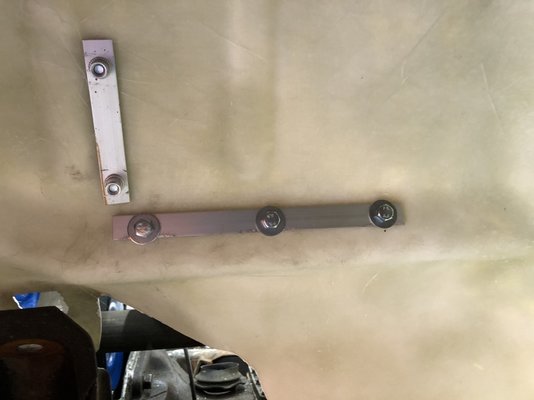

Underneath the wing I put a strip of aluminum to distribute the force of the bolts on the fiberglass wings.

And the end result isn’t bad either.


reidalpine

Enthusiast
Messages
1,533
Hi there Robert, I would fabricate some shielding for that upper rad.hose too as it gets Prettey D*** hot right above that exh.joint.
I made a shield out of (thin) alu wrapped in loose layers around the hose.. Guess what? -it melted! ... Also I'd mount a shield around
the exh.exit (hole through inner wing).... just mentioning Take care/-R


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
Thank you Reid. I’ll Do that. The exhaust manifold has been wrapped. I don’t know how much heat that shields. But better safe than sorry.
