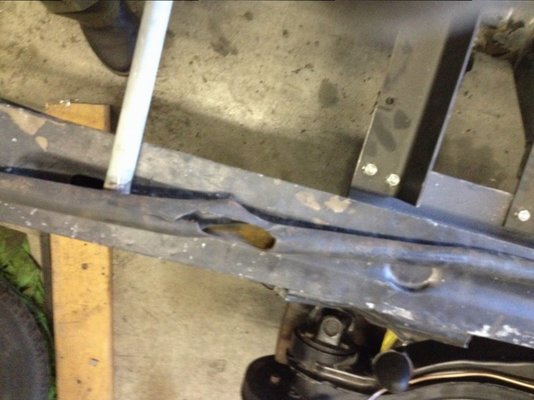

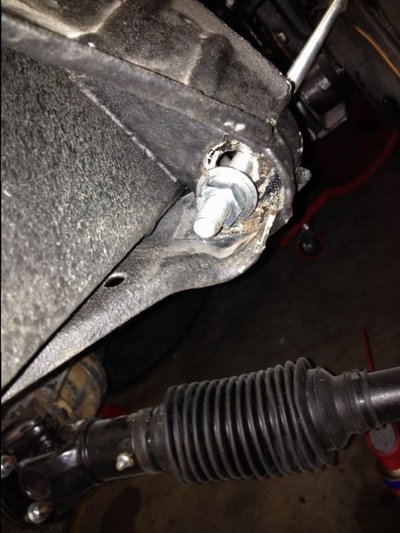

Yesterday I lifted the engine and took a bank hammer to the lower traverse. I got plenty clearance now, for the camshaft to the back differential.

Today was a day for sorting parts that have to be passified.
More pictures will follow.


petak

Enthusiast
Messages
1,788
Location
Vodice, Croatia

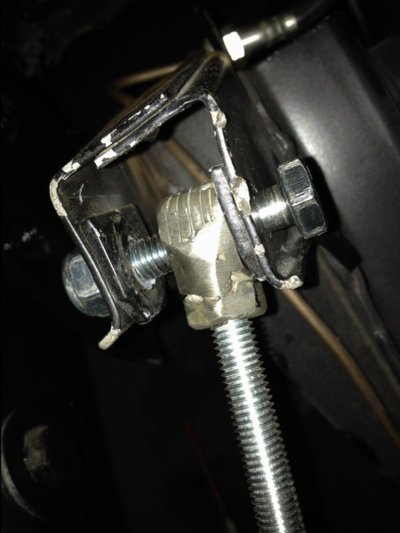

Smart trick with that brass L profile...so simple and effective ....... but could not see it myself


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
Hi,

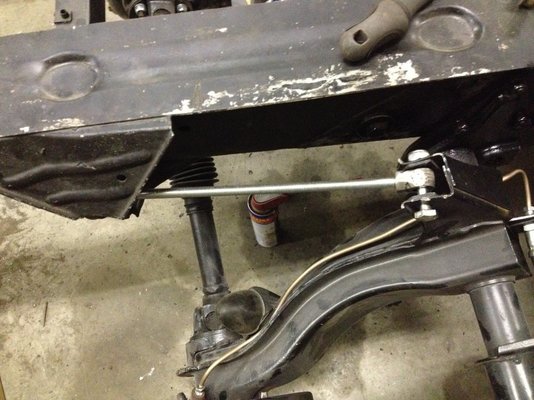

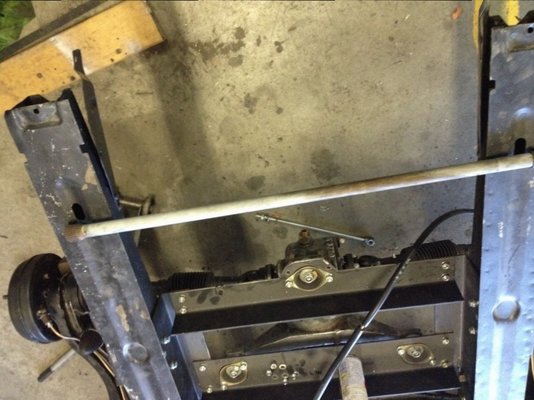

Ive been at a stand still for some time. Could not get the back differential to work.
Tried a clutch cable but it was to weak to turn the diff. on and off.

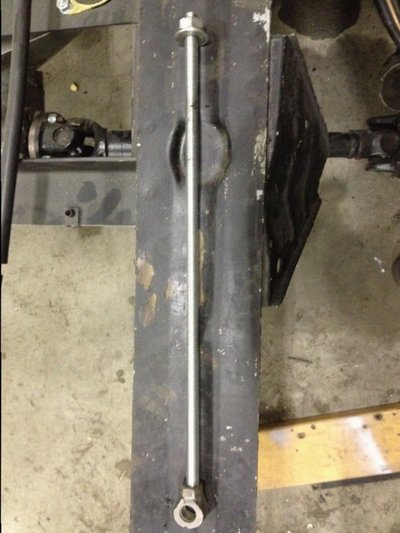

All this time I have been searching for a piece of spring wire 3mm thick.
I finally found a spring factory in Rotterdam that was willing to sell me a piece of 1,5 Mt instead of a whole role of 25 Mts.

Then the head breakers started. How to attach something to a piece of spring steel wire that is really though, hard and slippery.

Today I fixed the problem and my diff. can be put on and off.

unfortunately I can't upload the video I made.

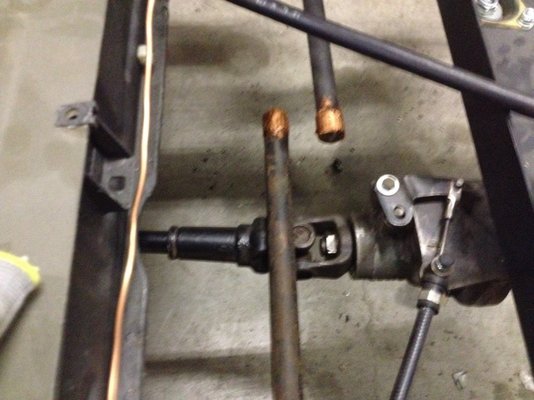

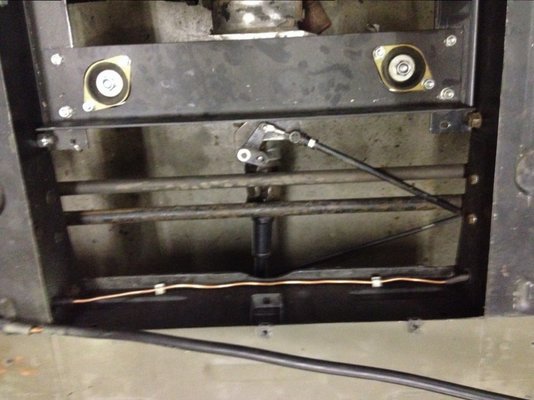

And I made some progress with the fuel line.

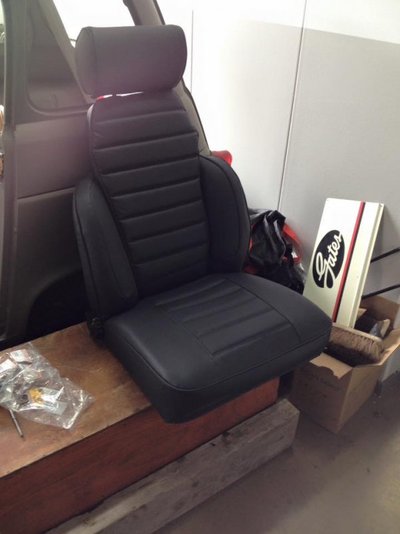

And bought this for the all important vintage lookIMG_0404.JPG


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

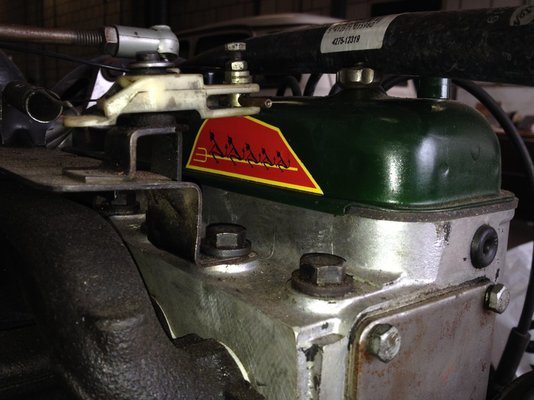

Today some more progress.
I finally got the engine running. A friend had to push me to start it.
I primed the carb with petrol after putting a + and -wire to the battery and a + wire to the coil.
And after turning over some rotations it sprang to live.
What a joy to hear my first rebuild roaring.

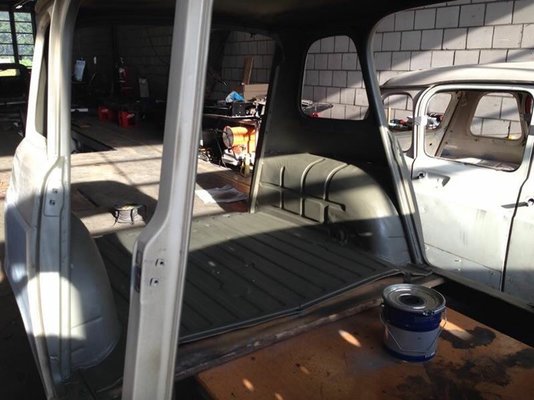

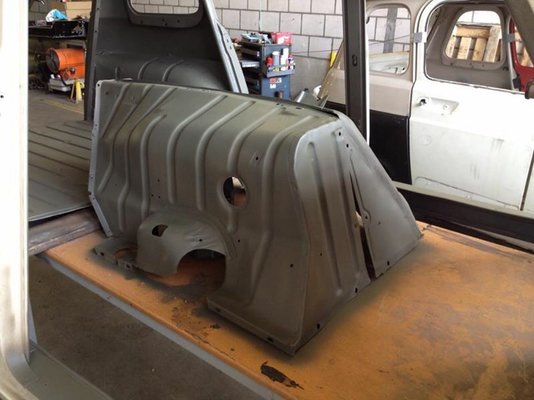

And I spray painted the inside of the body and inner wings.


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

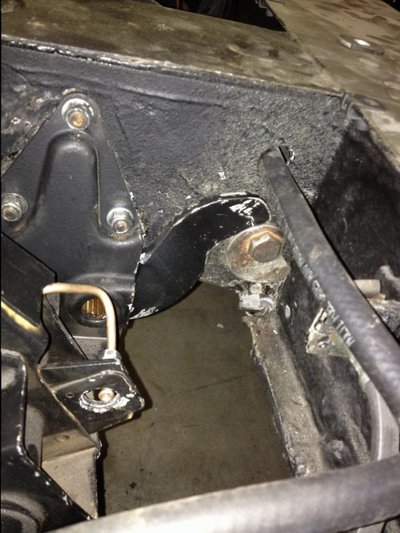

Did Some more work on the sinpar. Placed the brackets for the 4x4 umbrella on the firewall.
And some modifications on the radiator.
I found a slightly bigger radiator so I had to make some modifications to the fantunnel.
And I had to place a bracket on the right side for the 4x4 umbrella.

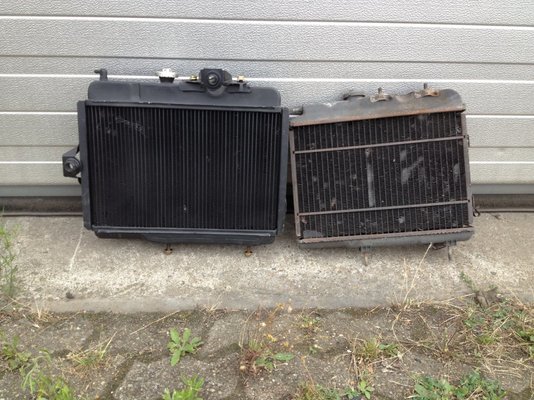

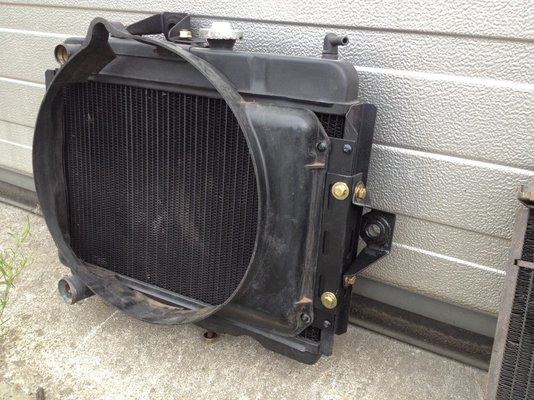

The old an the new radiator
Fan tunnel was to narrow. Needed some work and the bracket for the umbrella on the right side and the top.


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
The coming month I won't be here very much.
This is my last update.
In October I'll be there again. And working like hell to finish before we have to move to another workspace.



mr-reno-139

AKA Paul Cunningham
Messages
2,214
Location
lancing west sussex england
The radiator looks like it is for early 845 cc R5
Handbrake is on floor so is slightly larger did the brackets bolt straight to rack or did you have to mod slightly


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
Today I had some time again to do some work on my project. Slowly but surely i'm getting there.

The Frenshman I bought the Sinpar set from, had the height set rather high.

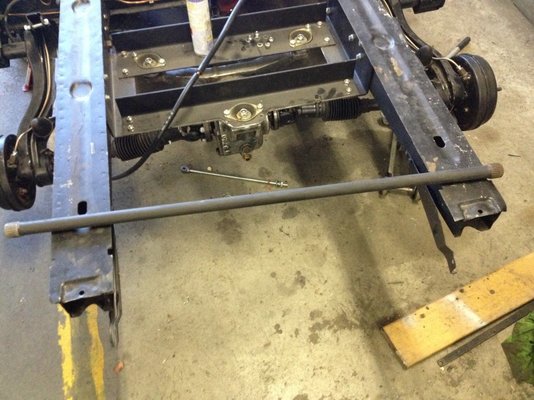

So today I started with making the special tool to undo the rear tension bars.

Its a 35cm tread bar with six steel rings welded together on a M10 nut. It goes into the slot of the shock absorber.

It takes the tension of the torsionbar so you kan hammer it out of the spline.

After that you set the distance of the wheelarm to 30cm and hammer the torsionbar back in place.

I did the left side today and thursday I will hopefullly do the right side. because the torsionbar is stuck. I hope some WD40 will unstick it somewhat.


Attachments

  • image.jpeg
    80 KB · Views: 6
  • image.jpeg
    156.1 KB · Views: 6
  • image.jpeg
    83.5 KB · Views: 6
  • image.jpeg
    56.2 KB · Views: 8

mojobaby

Enthusiast
Messages
1,274
I don't think I'll ever understand the complexities of torsion bars, but that looks like a clever tool.
In July you said that you had made a video of your back differential but couldn't upload it. What was the problem? It would be interesting to see!


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

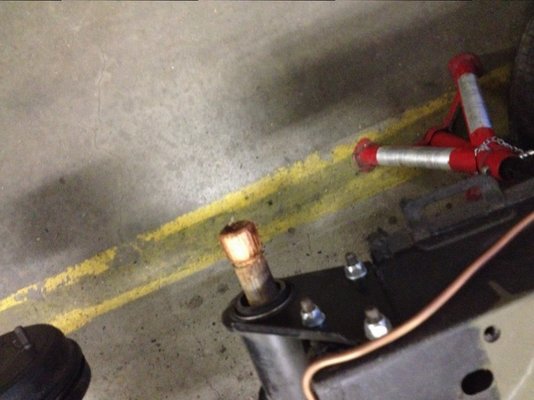

Yesterday I took of the right hand back wheel assembly to take the torsion bar out. It was quite stuck in the wheel assembly because of a rodent that had decided to built it's nest in the hole that houses the torsion bar.

After taking a bank hammer is came lose without any trouble including the remains of the rodents nest.

With the bar out I could take the damaged rubber sleeve of and replace it with a tight fitting inner tire from my bicycle.image.jpeg
image.jpeg image.jpeg

After cleaning all the splines and putting on a good amount of copper grease I set my special tool in place to replace the torsion bars.image.jpegimage.jpeg

With my trusted bank hammer and a steel rod I hammered the torsion bars home in the reaction arms on both sides and set the height to 38 cm ground clearance at the back.
With the height adjusters




With two almost new looking torsion bars back in place.

Last edited:

harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
@mr-reno-139
On the bigger radiator the top umbrella bracket bolted on without modification.
The one on the right side needed some drilling of holes.
And bolted on with some modification.

@mojobaby


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

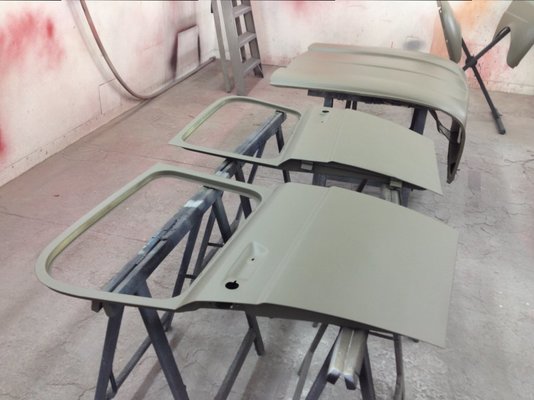

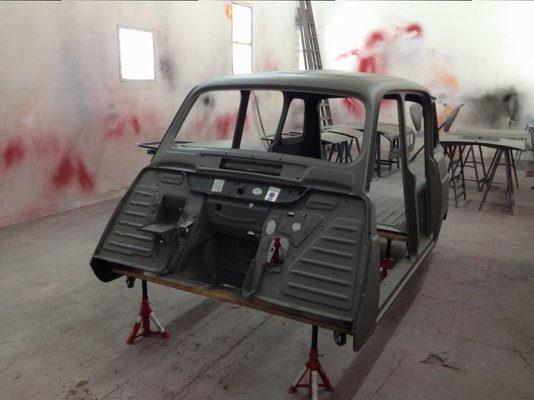

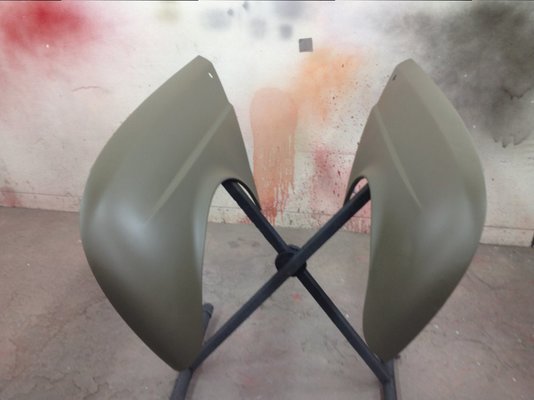

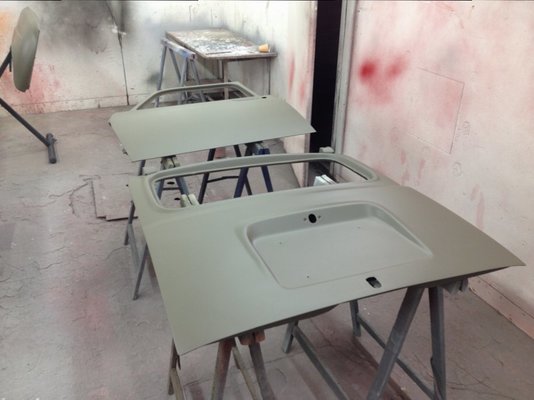

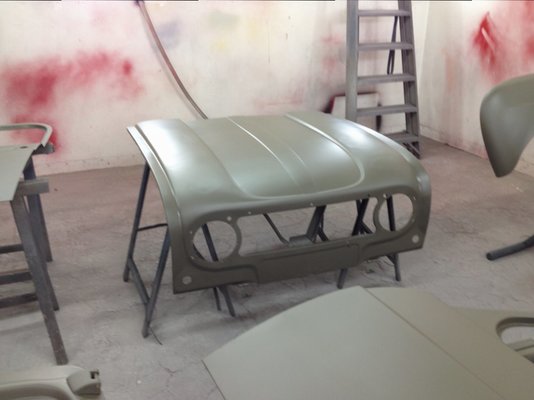

Yeserday I picked up al my bodyparts from the paintbooth.
The paint wasnt realy hard yet so Today I put everything in a save place.
Next week I hope to spend some time in building up again.

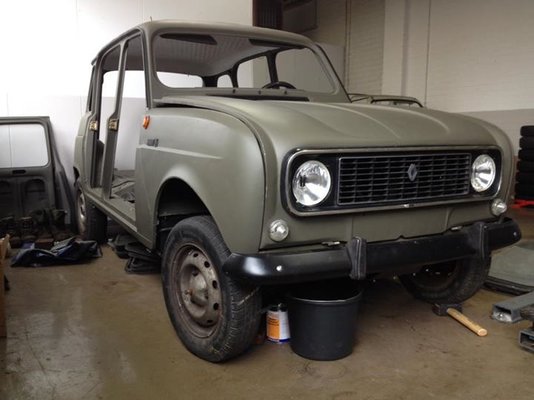

I did put the hood in its right place an all of a sudden the chassis looked like an R4 againimage.jpeg


JonathanT

Not normal for Norfolk
Messages
1,324
Location
Wymondham Norfolk
Wow looking good...So many of you seem to have such big spaces to work in! makes my single garage look a bit cramped :(


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands
Hi JonathanT,

After three years in our ex bus workshop we will be moving to a much smaller place at the end of this month.

We had to size down quite a bit in the number of cars we have. And are now rushing to finish some of the projects we have.


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

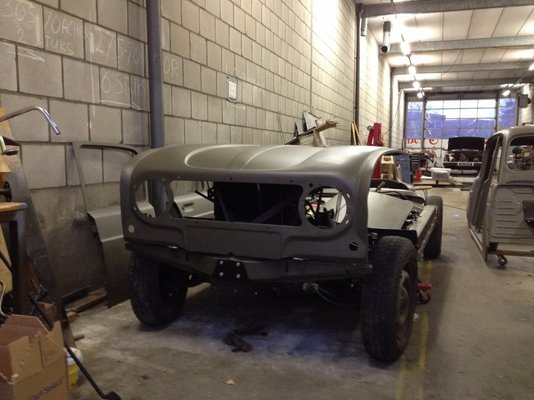

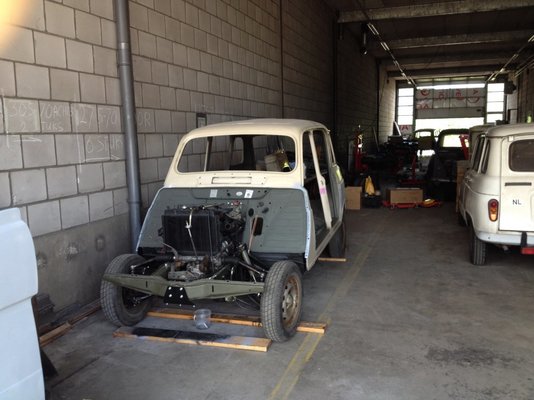

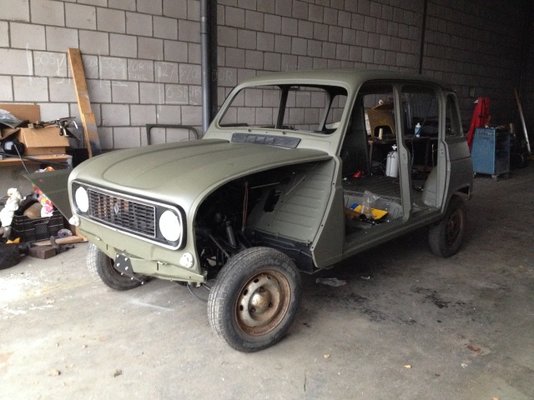

Last Friday I joined the chassis and body together again.

The stance of this Sinpar is about 5cm, 2 inches higher than a regular GTL.image.jpeg


mojobaby

Enthusiast
Messages
1,274
I know you have some really nice tyres stashed away somewhere. i can't wait to see them on the car, it's going to make a huge difference. Your car looks nearly finished so you'll have to start looking in the fields for another project:)


harbourseal

Renault R4 Lunatic
Messages
1,021
Location
Breda The Netherlands

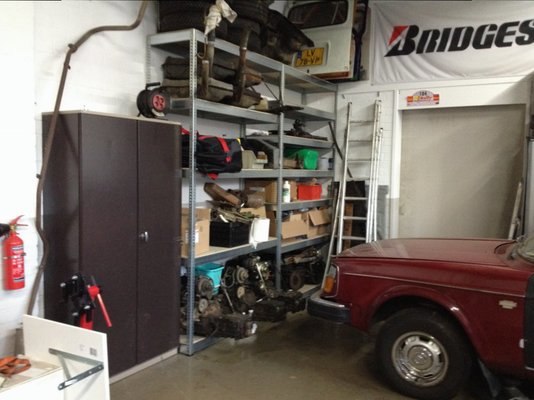

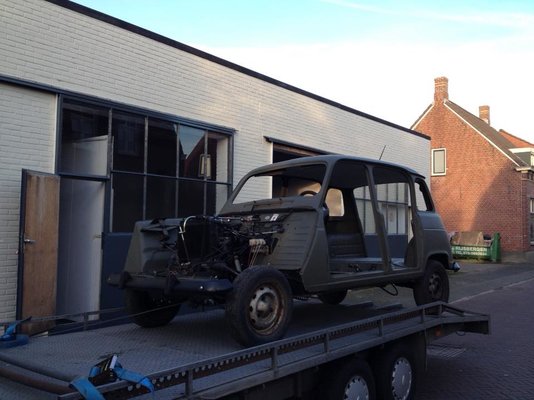

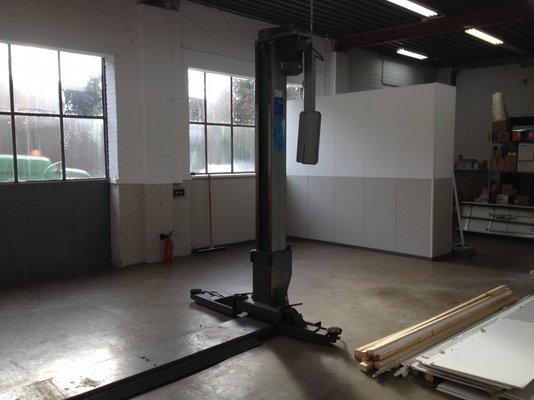

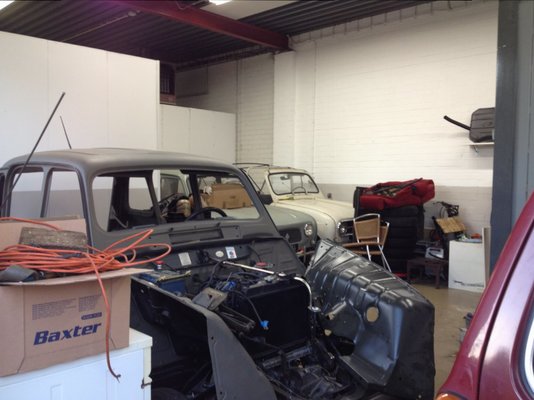

The move of all our parts and cars is completed. Yesterday we tried to make some sence of all we have and put it off the floor on shelves. Still lots of work to do, and I hope the Volvo moves soon so I can get back to work on my project.IMG_0994.JPGIMG_0995.JPG
